Atlas of structures in the S4G

26.02.2016

This web page shows the morphological features (bars, lenses, rings and spiral structures) in the
Spitzer Survey of Stellar Structure in Galaxies (S4G) overplotted on the original image of the galaxy.
Detailed information on the measurements of the structures is found in Herrera-Endoqui et al. (2015).
The data tables are available at the Strasbourg astronomical Data Center.

The morphological classification and the Hubble type (T) are taken from Buta et al. (2015).
For information about the S4G please see Sheth et al. 2010.
The inclination and orientation parameters are taken from Salo et al. (2015).
Instructions:
1. Click on the image to see a bigger jpg version.
2. Note on images: shown are the fits for bars, lenses and rings (top panel); unsharp mask and
data table in sky-plane (middle panel) and fits for spiral arms (bottom panel).
3. Link to the next set of 100 galaxies at the bottom of the page.
Galaxy # 201

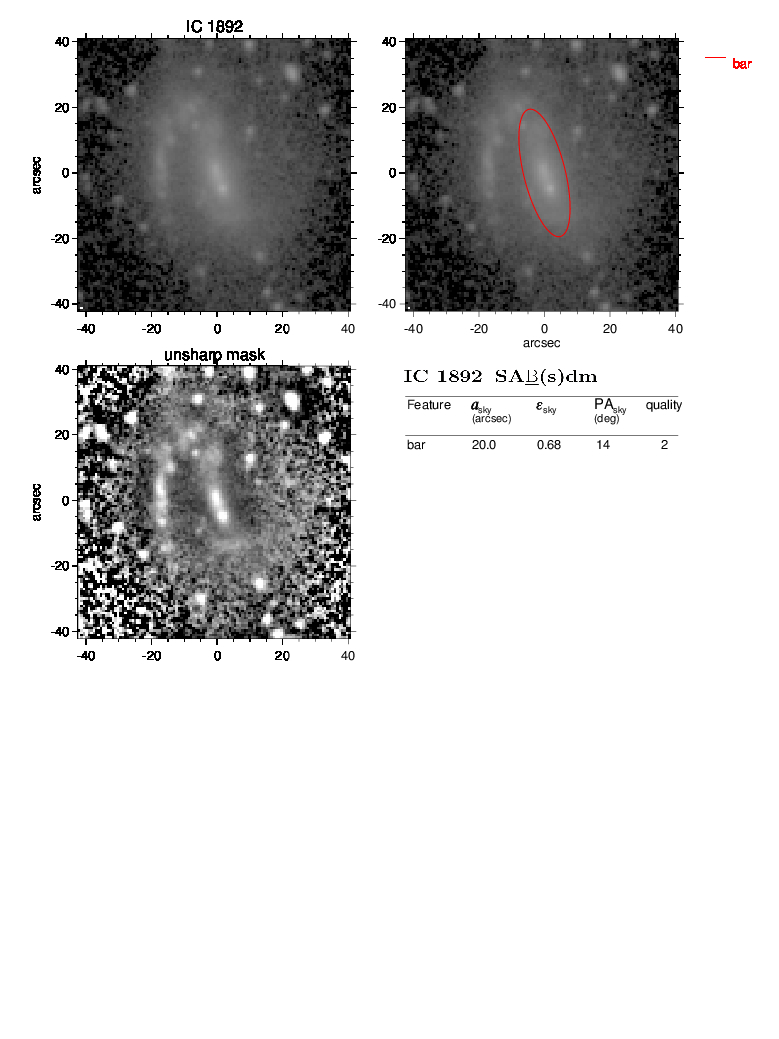

IC1892
SA_B(s)dm
T = 6
Galaxy # 202
IC1898
SB(s)_dm,sp
T = 7

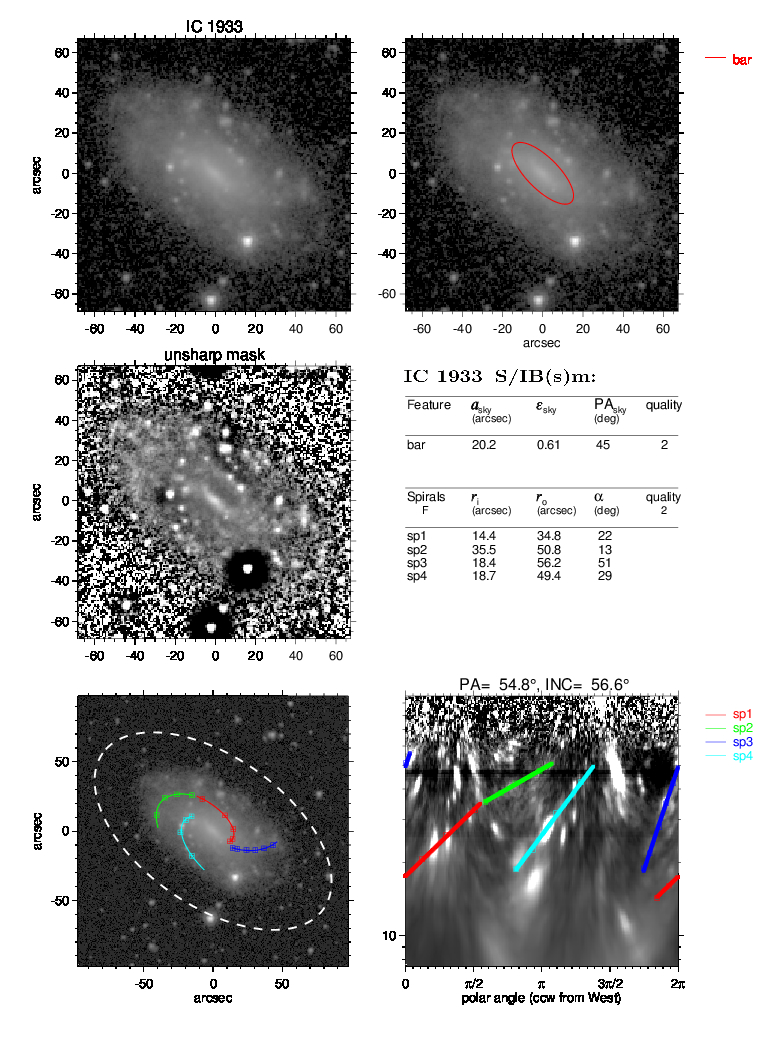

Galaxy # 203
IC1933
S/IB(s)m:
T = 2

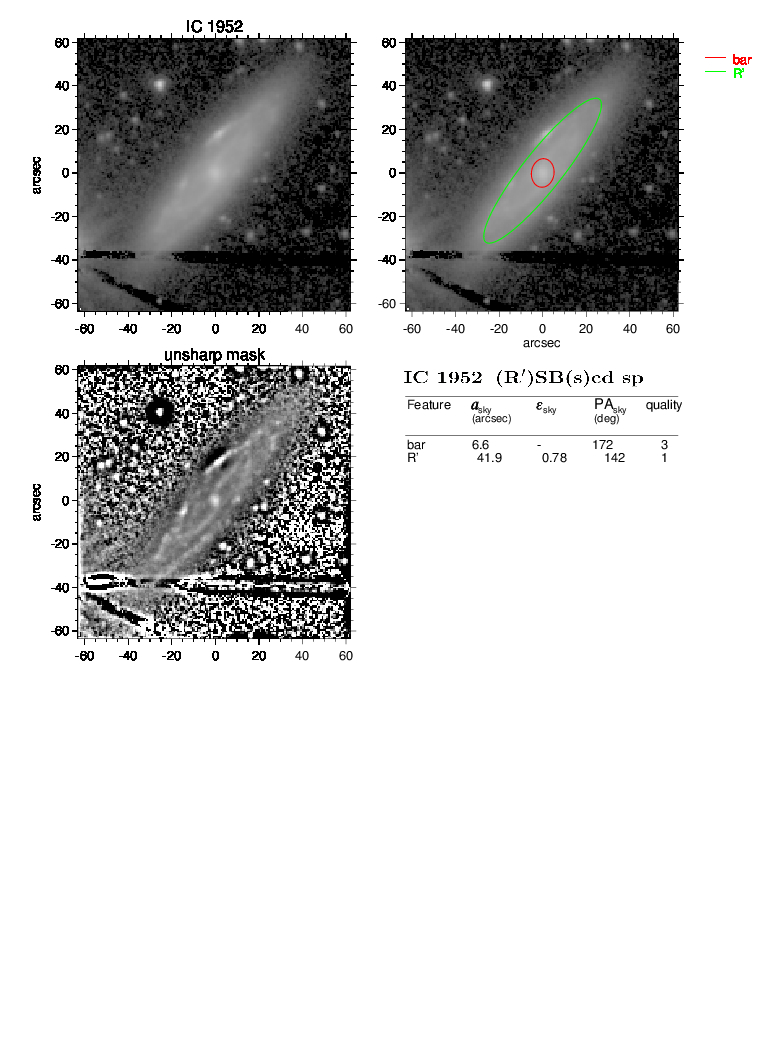

Galaxy # 204
IC1952
(R')SB(s)cd,sp
T = 11

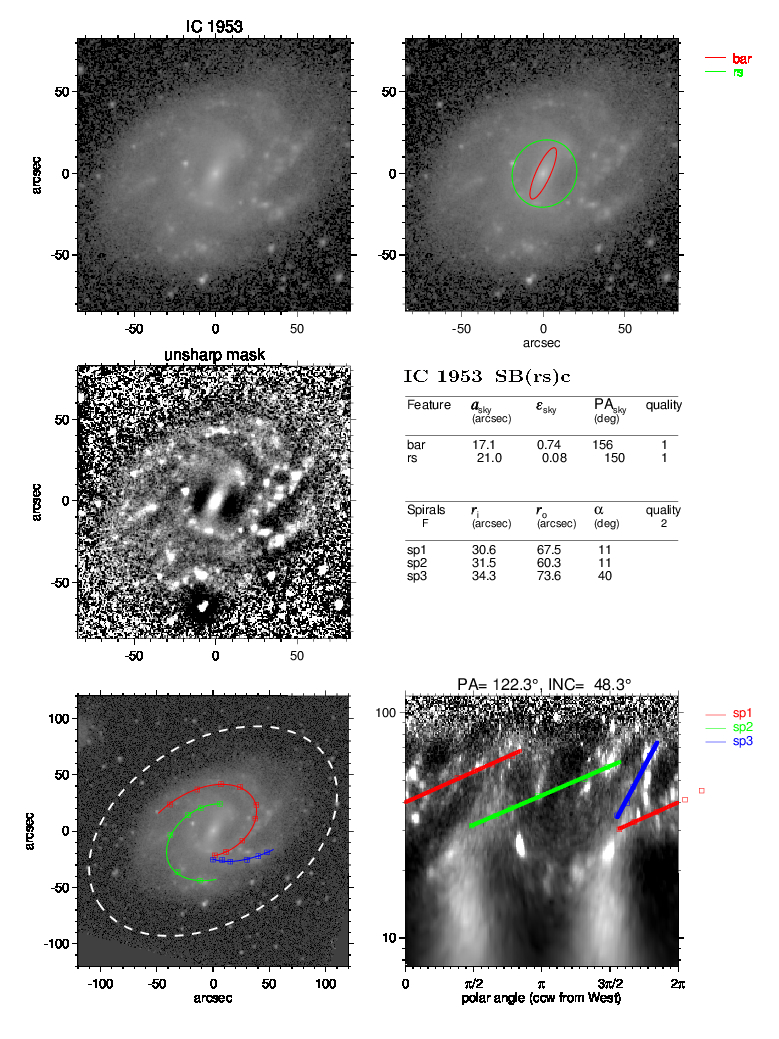

Galaxy # 205
IC1953
SB(rs)c
T = 7

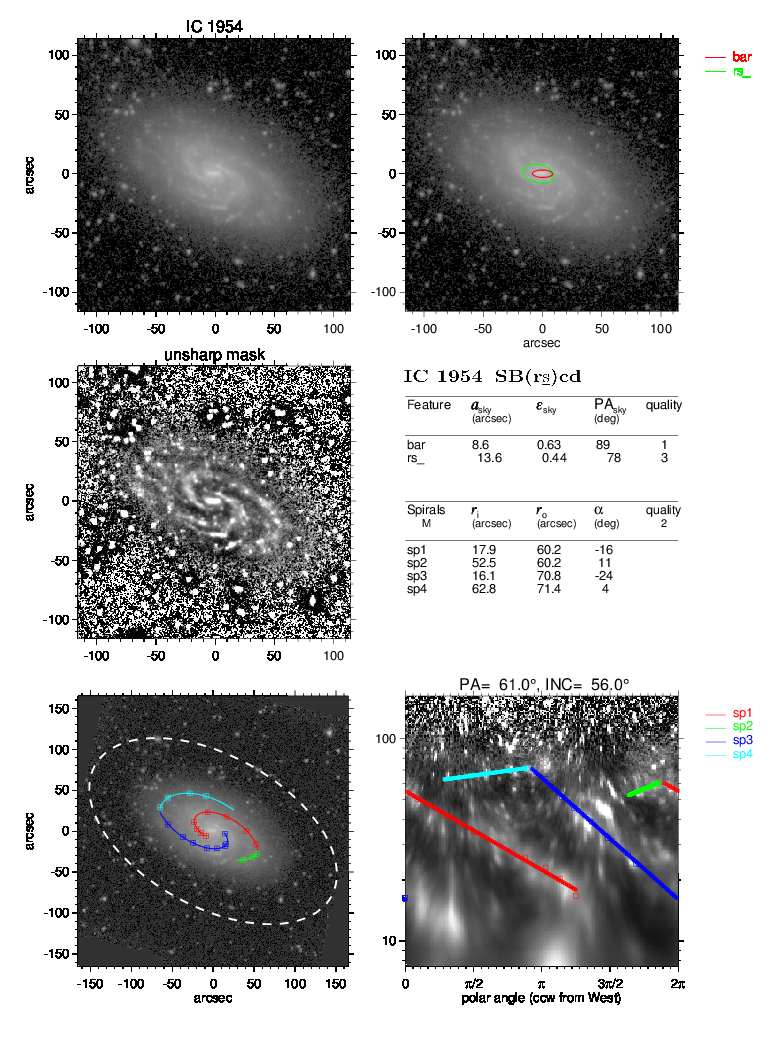

Galaxy # 206
IC1954
SB(rs_)cd
T = -1

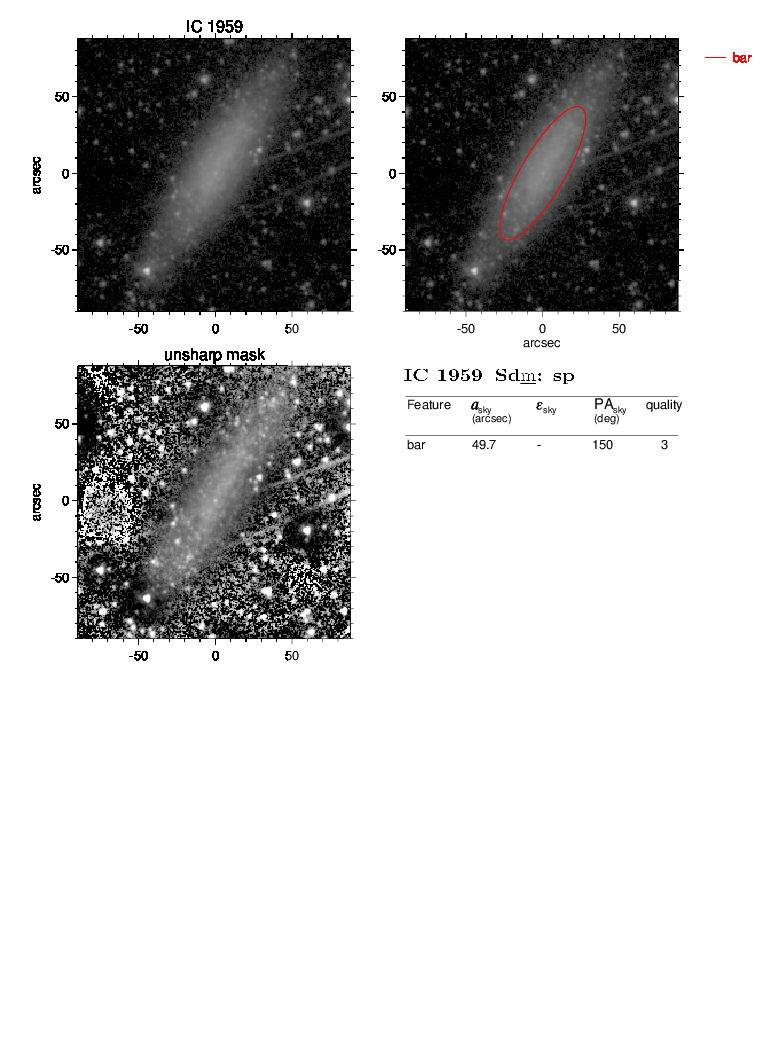

Galaxy # 207
IC1959
Sd_m:,sp
T = 6
Galaxy # 208
IC1962
SB(s)m,sp
T = 3
Galaxy # 209

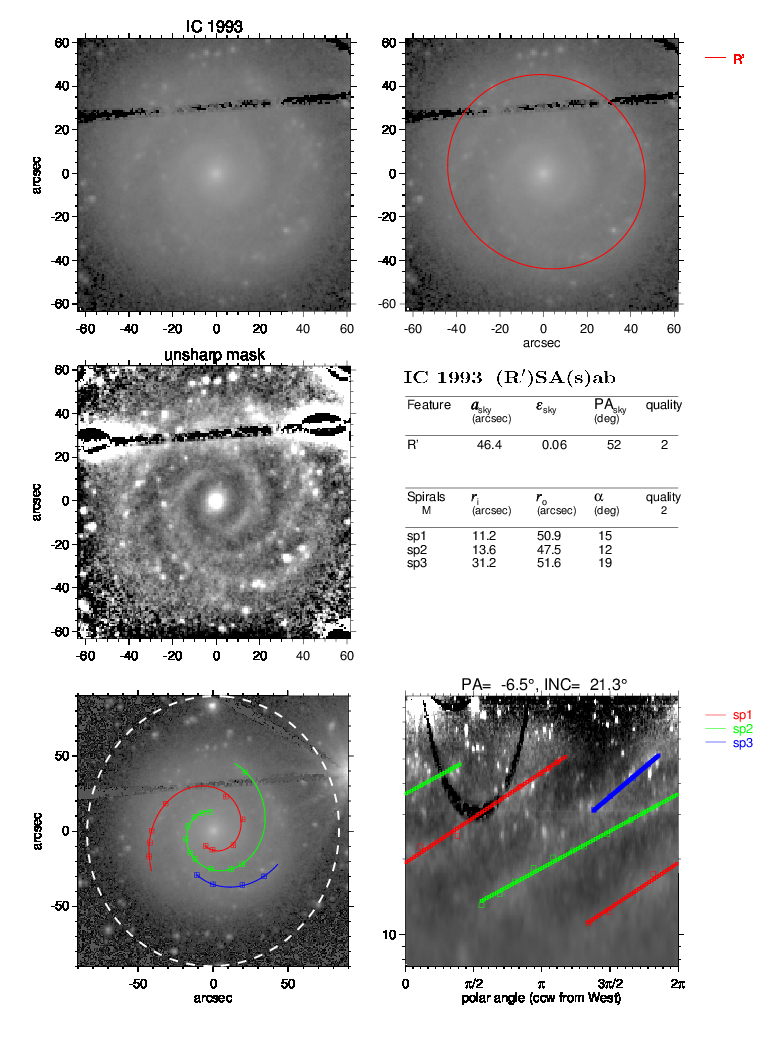

IC1993
(R')SA(s)ab
T = 8
Galaxy # 210
IC2000
SA_Ba(rs_)d:,sp
T = 7

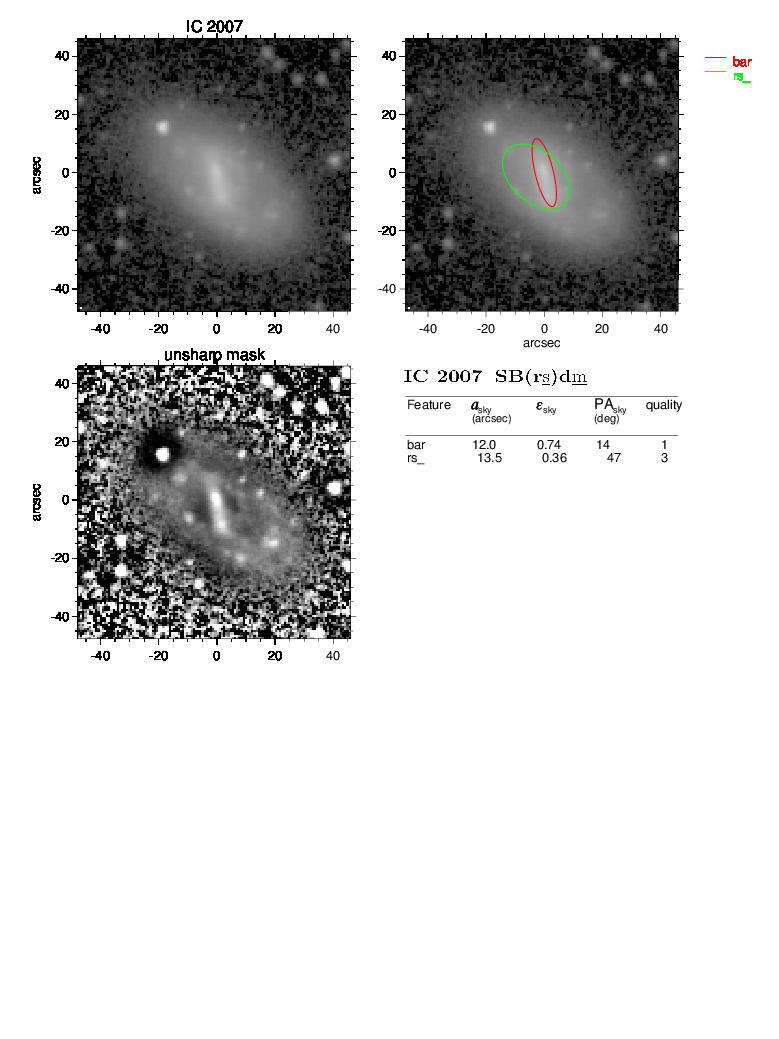

Galaxy # 211
IC2007
SB(rs_)d_m
T = 5
Galaxy # 212
IC2035
SAB(s)0-o
T = 3
Galaxy # 213
IC2051
SB(_rs,bl)b
T = -5
Galaxy # 214
IC2056
(L)SA(rs_)bc
T = 8
Galaxy # 215

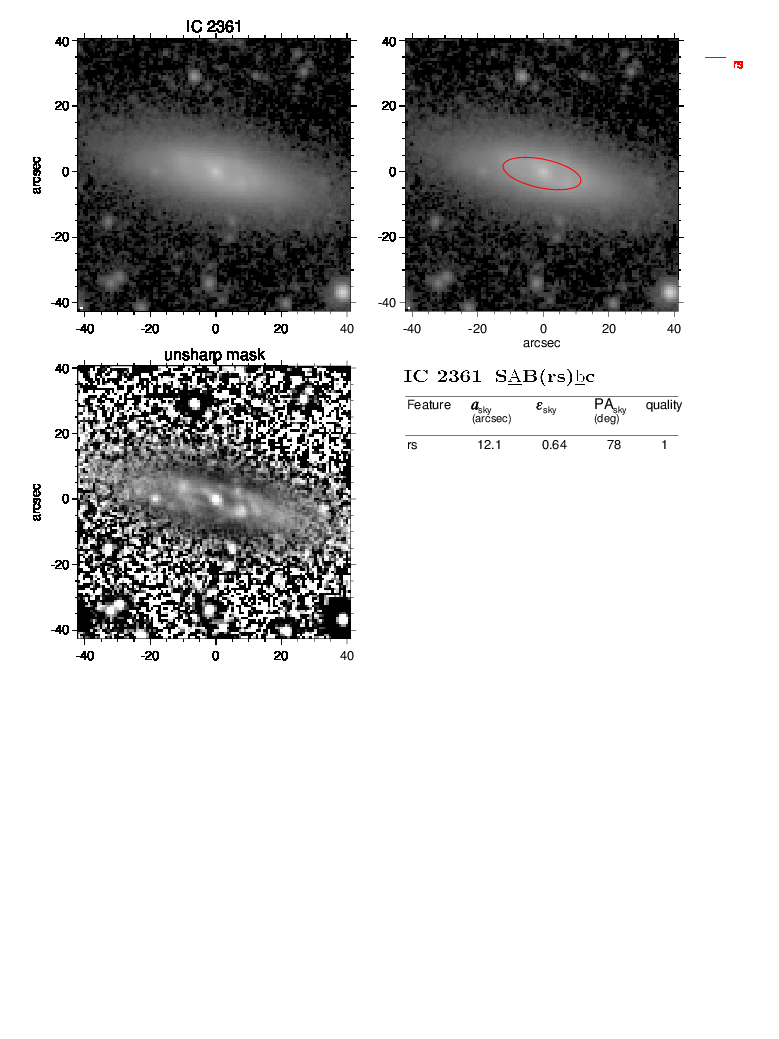

IC2361
S_AB(rs)_bc
T = 0
Galaxy # 216
IC2389
SA_B(s)d_m:,sp,pec
T = 9

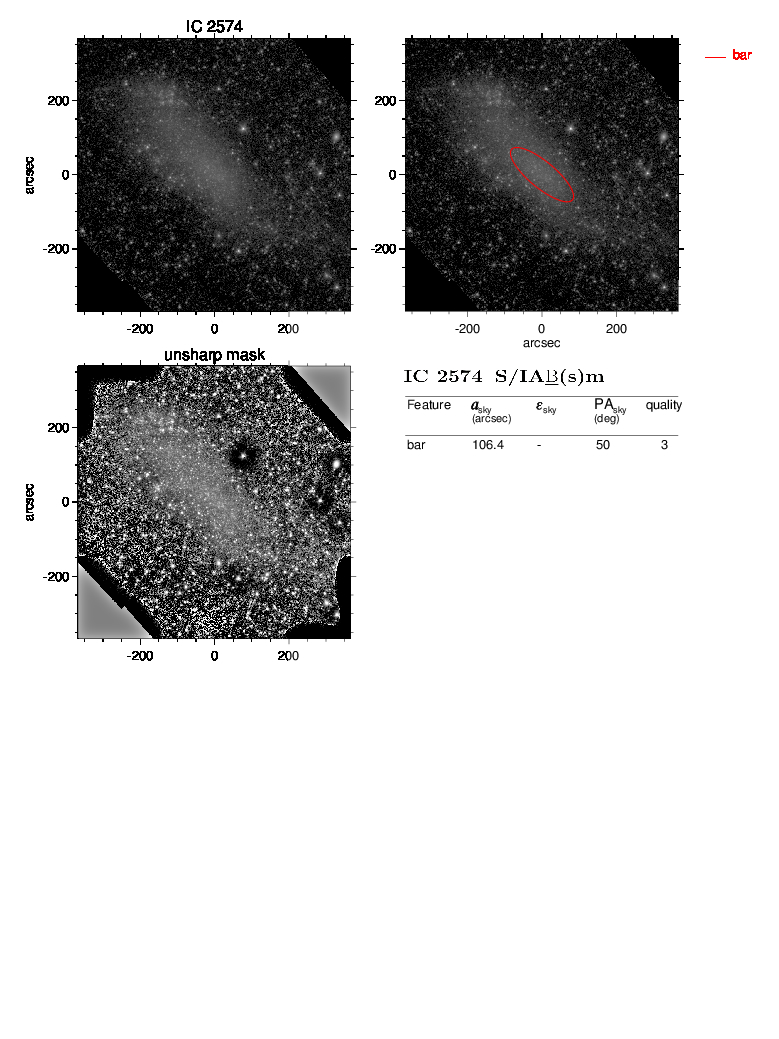

Galaxy # 217
IC2574
S/IA_B(s)m
T = 10
Galaxy # 218
IC2627
(R')SA(s)bc
T = 5

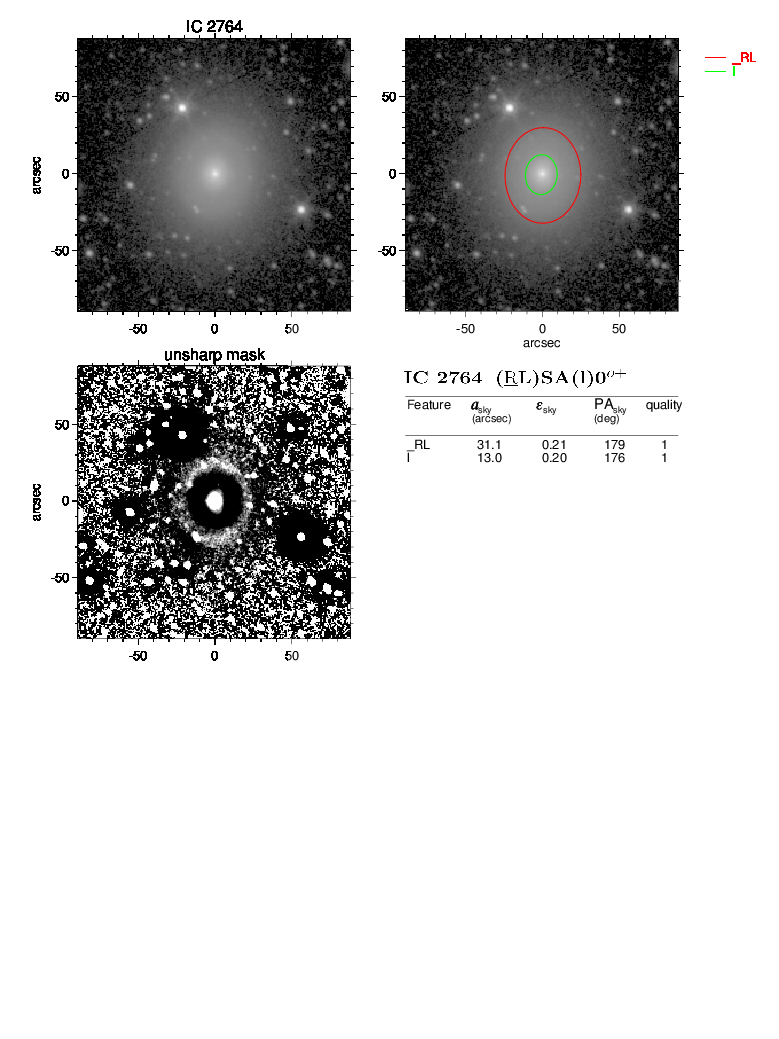

Galaxy # 219
IC2764
(_RL)SA(l)0o+
T = 10

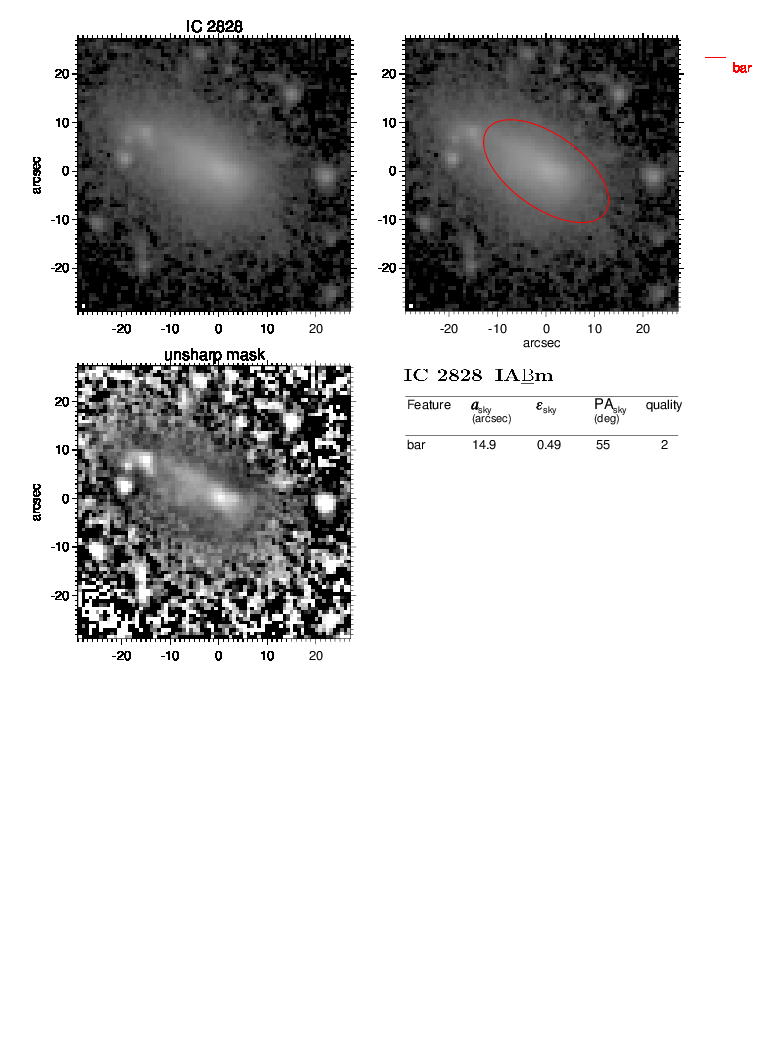

Galaxy # 220
IC2828
IA_Bm
T = 1

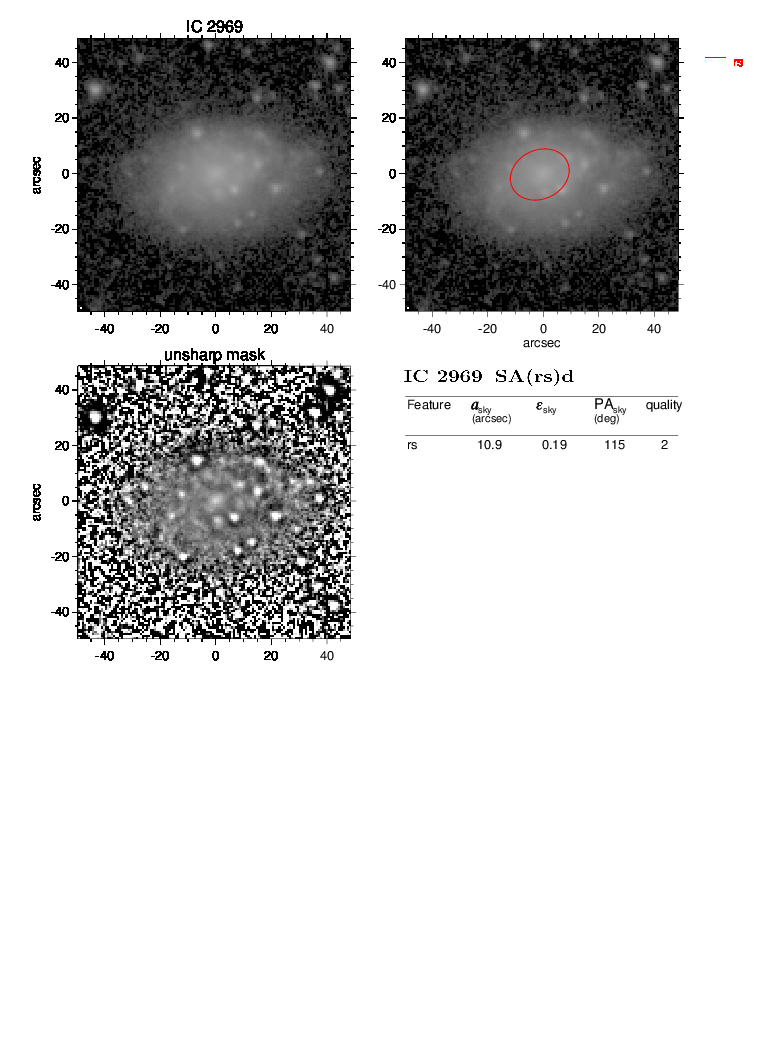

Galaxy # 221
IC2969
SA(rs)d
T = -1

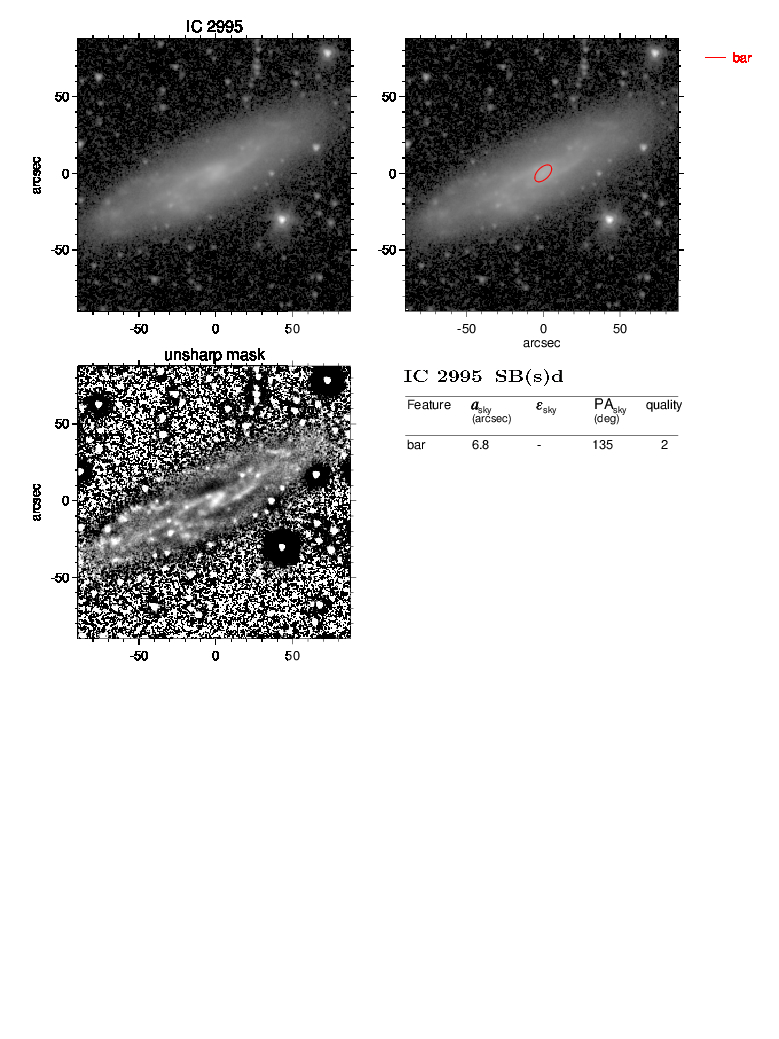

Galaxy # 222
IC2995
SB(s)d
T = 1

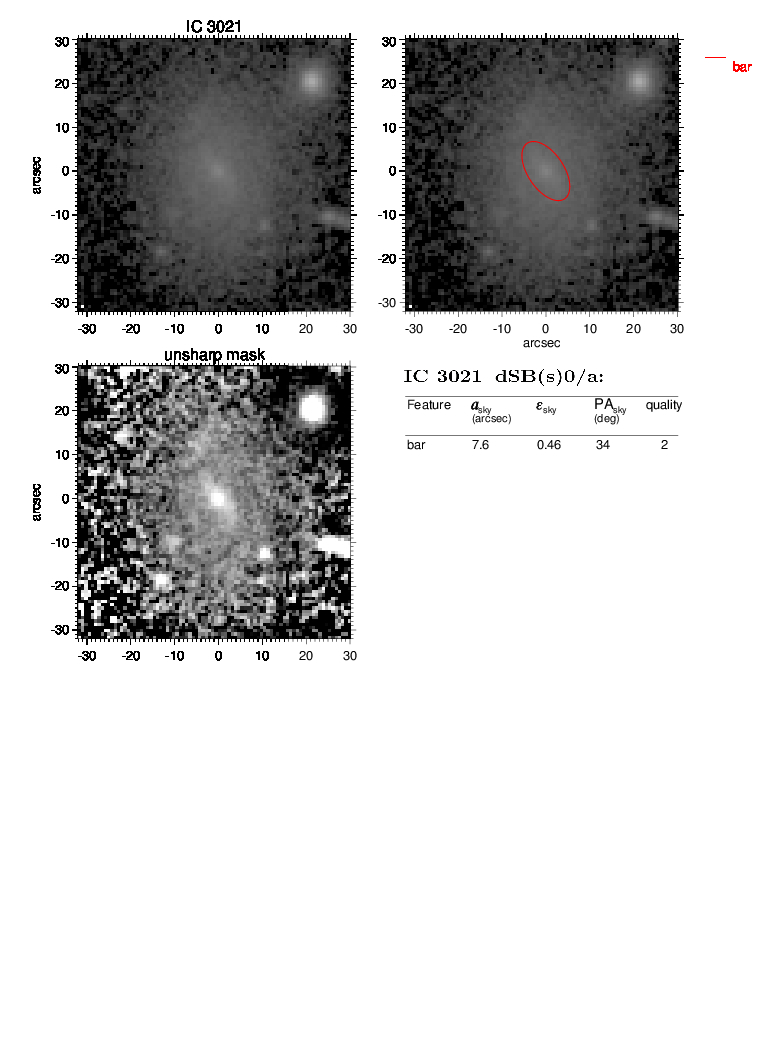

Galaxy # 223
IC3021
dSB(s)0/a:
T = 6
Galaxy # 224
IC3033
dSA(l)0o/Sph
T = -4
Galaxy # 225
IC3044
(R'L)SB(s)d/Sph
T = -3

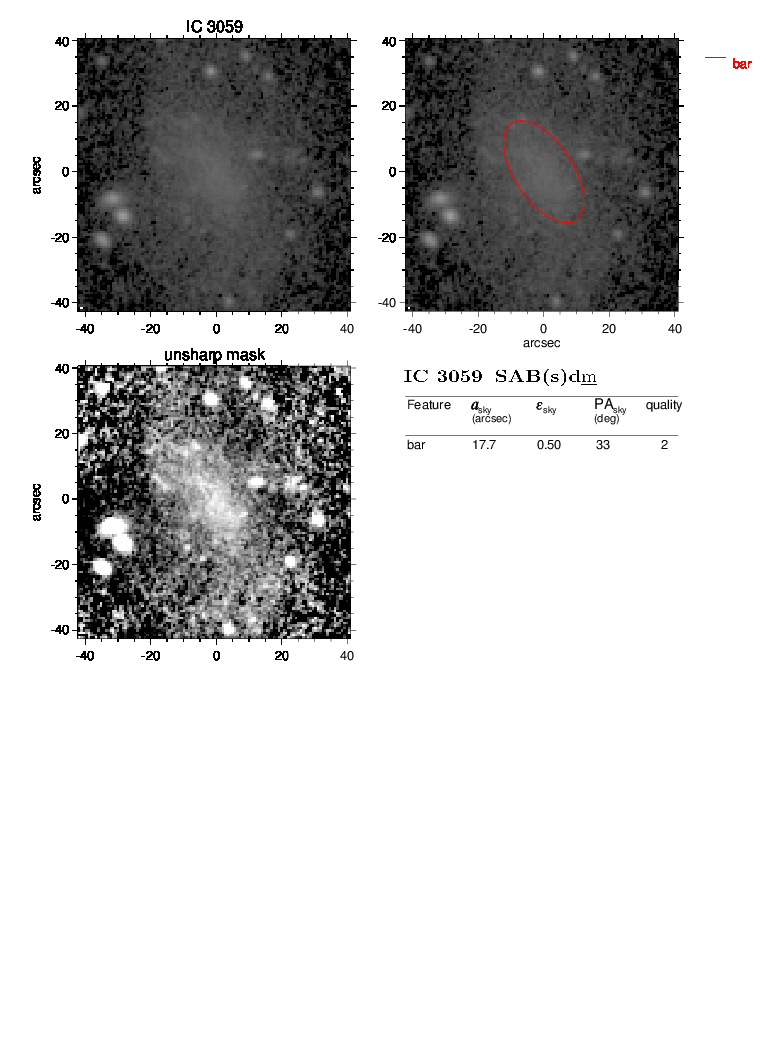

Galaxy # 226
IC3059
SAB(s)d_m
T = 9
Galaxy # 227

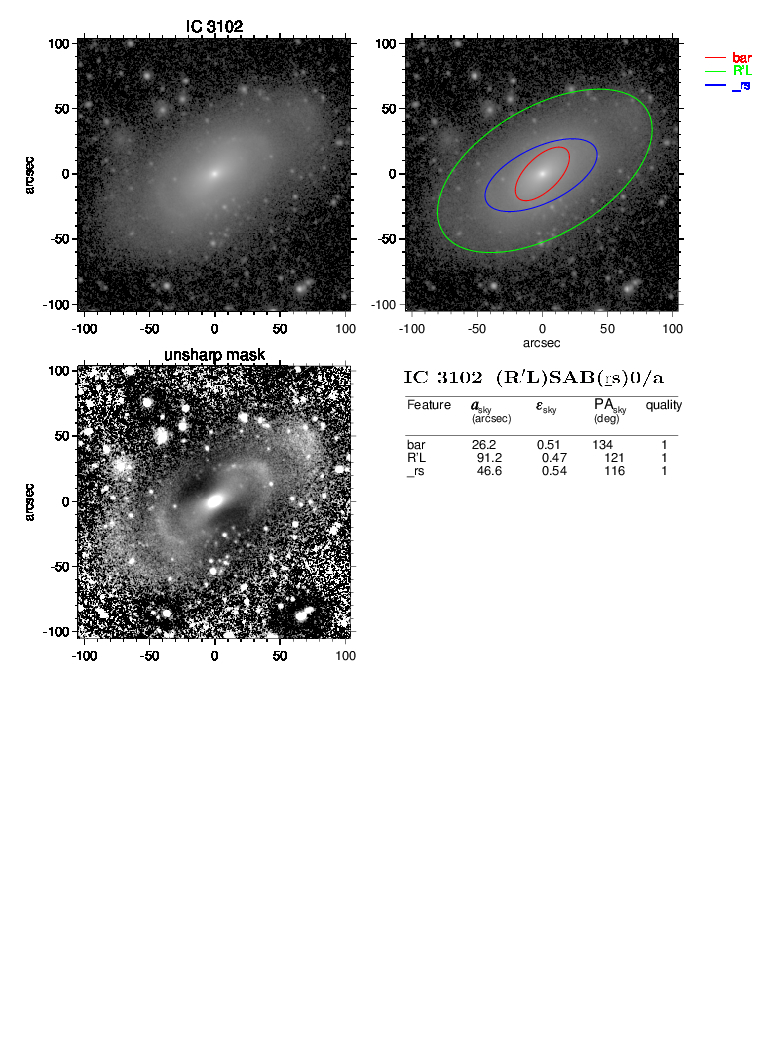

IC3102
(R'L)SAB(_rs)0/a
T = 2

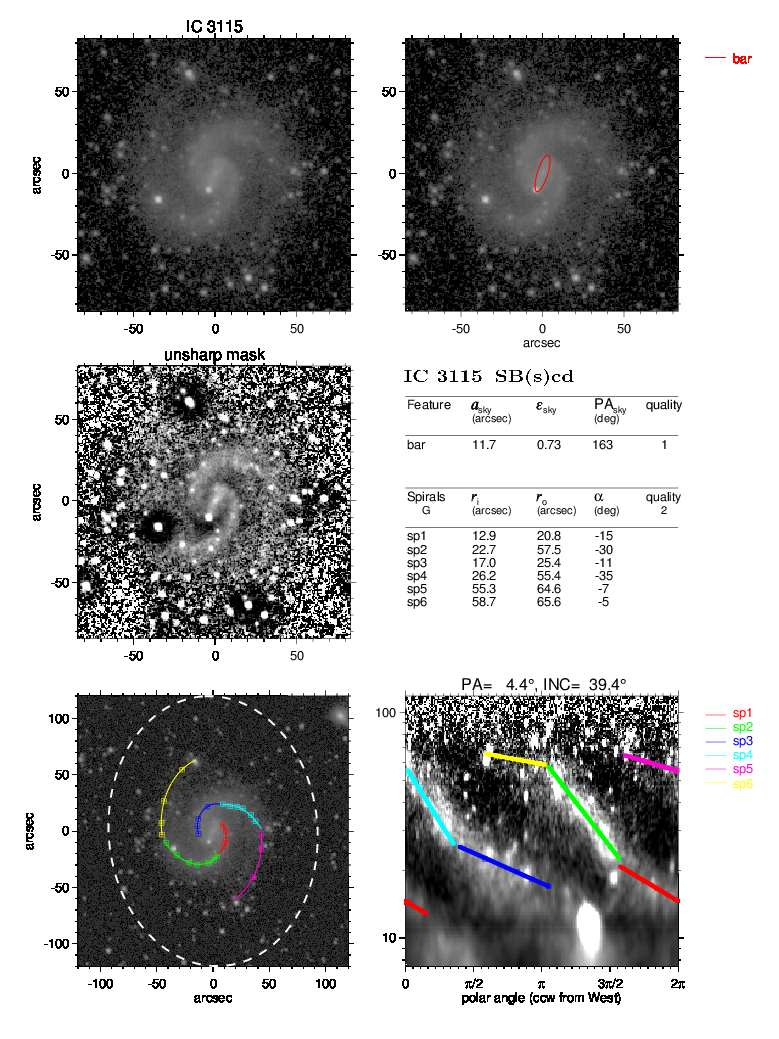

Galaxy # 228
IC3115
SB(s)cd
T = 6

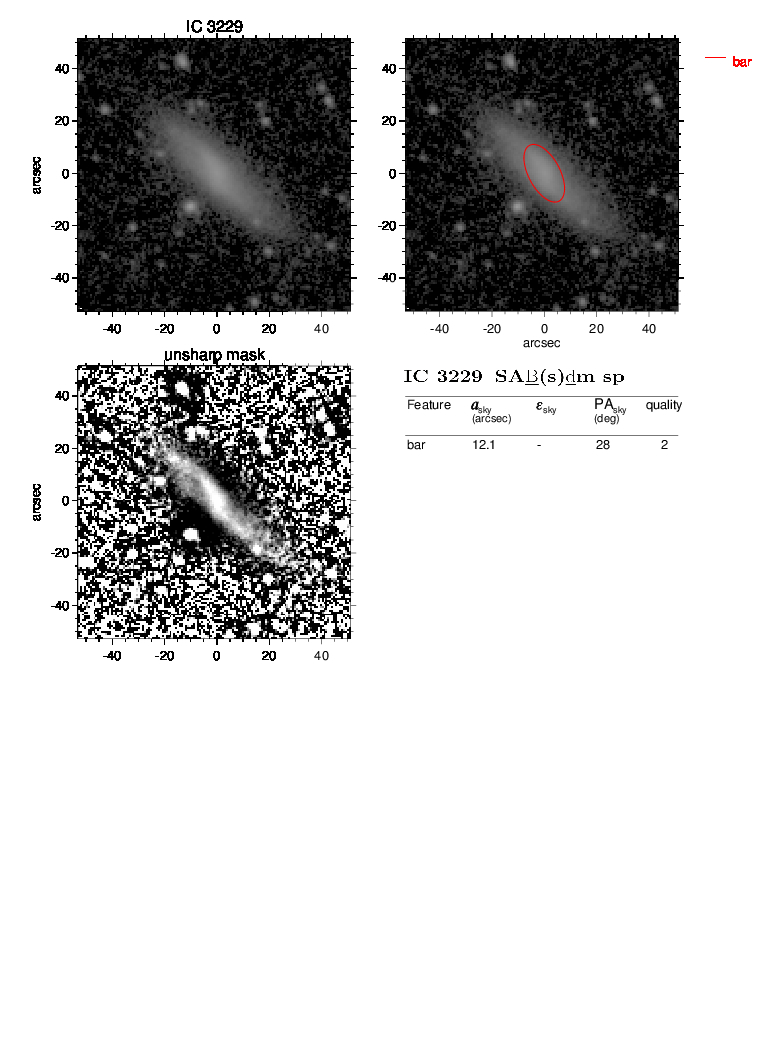

Galaxy # 229
IC3229
SA_B(s)_dm,sp
T = 10
Galaxy # 230
IC3259
SAB(s)d/Sph
T = 5
Galaxy # 231
IC3267
SA(rs)0/_a
T = 1
Galaxy # 232
IC3298
SA_B(s)dm,sp
T = 1

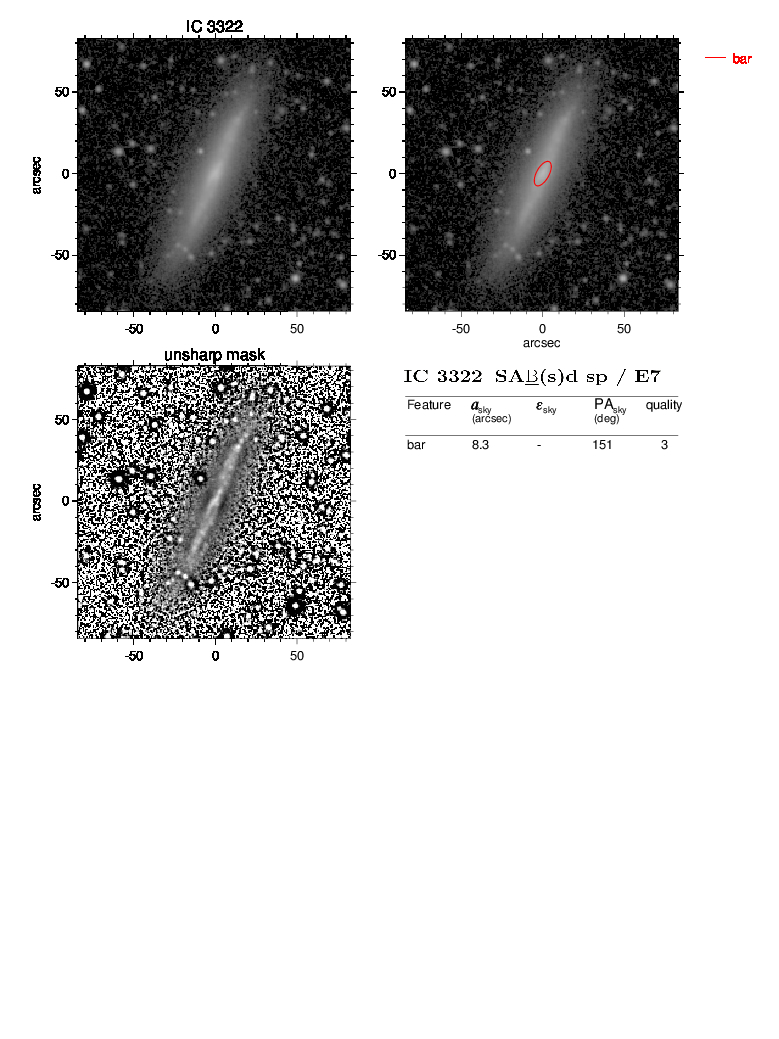

Galaxy # 233
IC3322
SA_B(s)d,sp/E7
T = 6
Galaxy # 234
IC3391
SAc,pec/Sph
T = 1

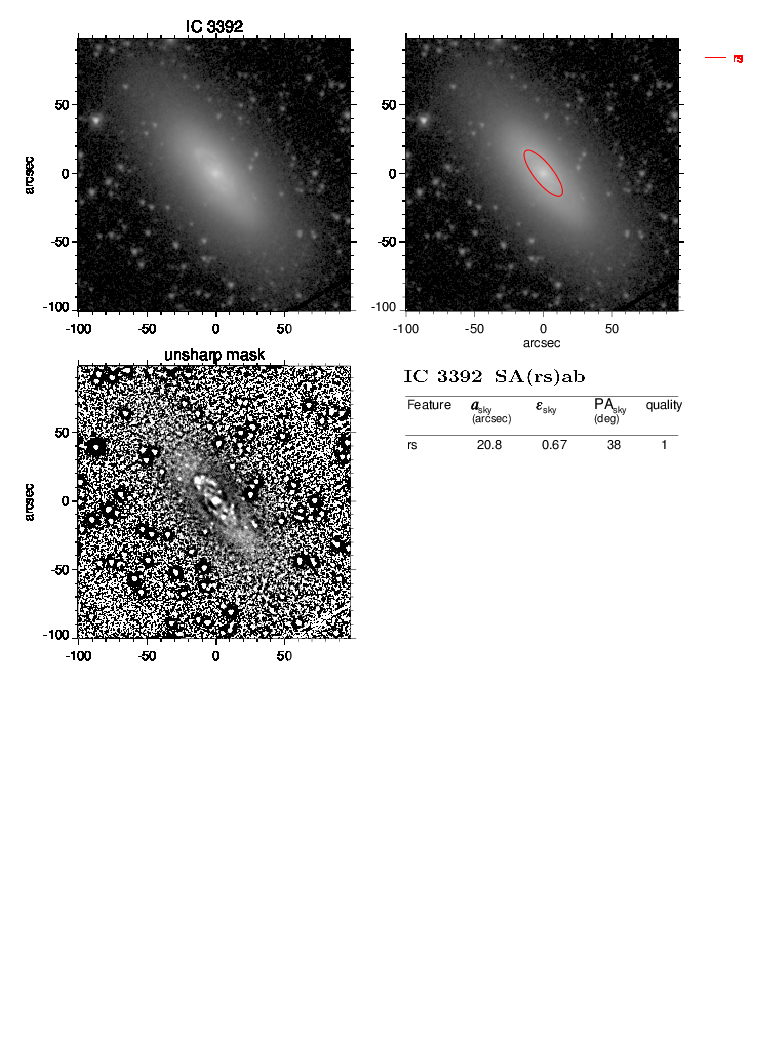

Galaxy # 235
IC3392
SA(rs)ab
T = 0
Galaxy # 236
IC3476
SAB(s)m
T = 3

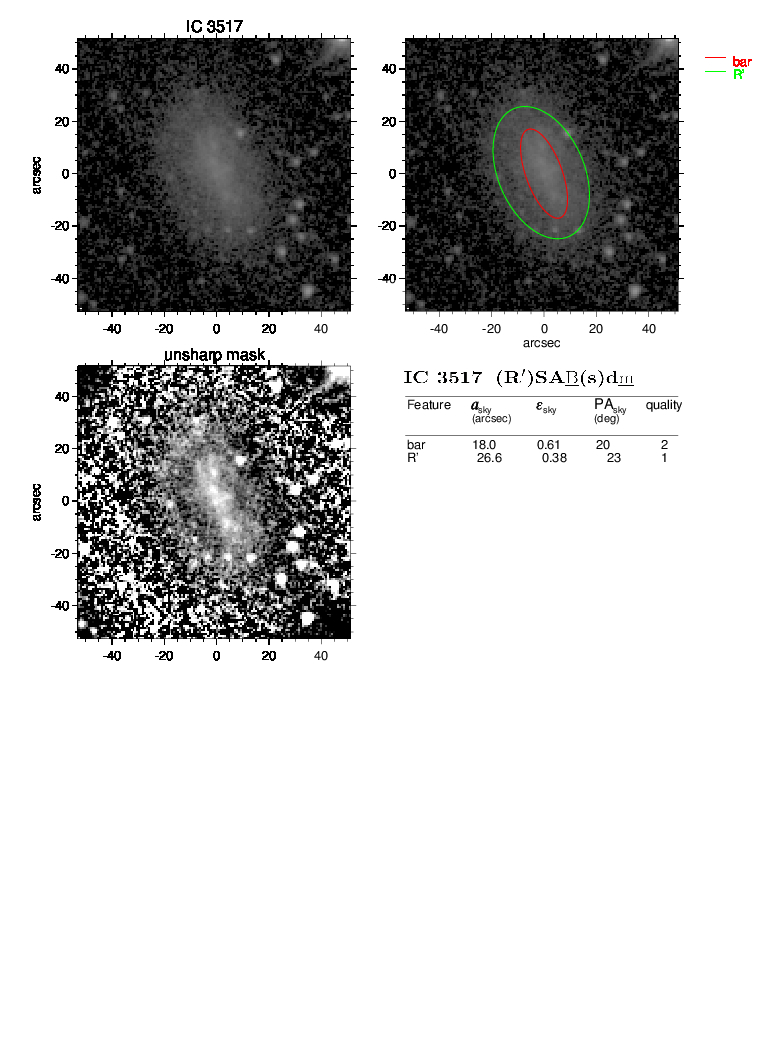

Galaxy # 237
IC3517
(R')SA_B(s)d_m
T = 5

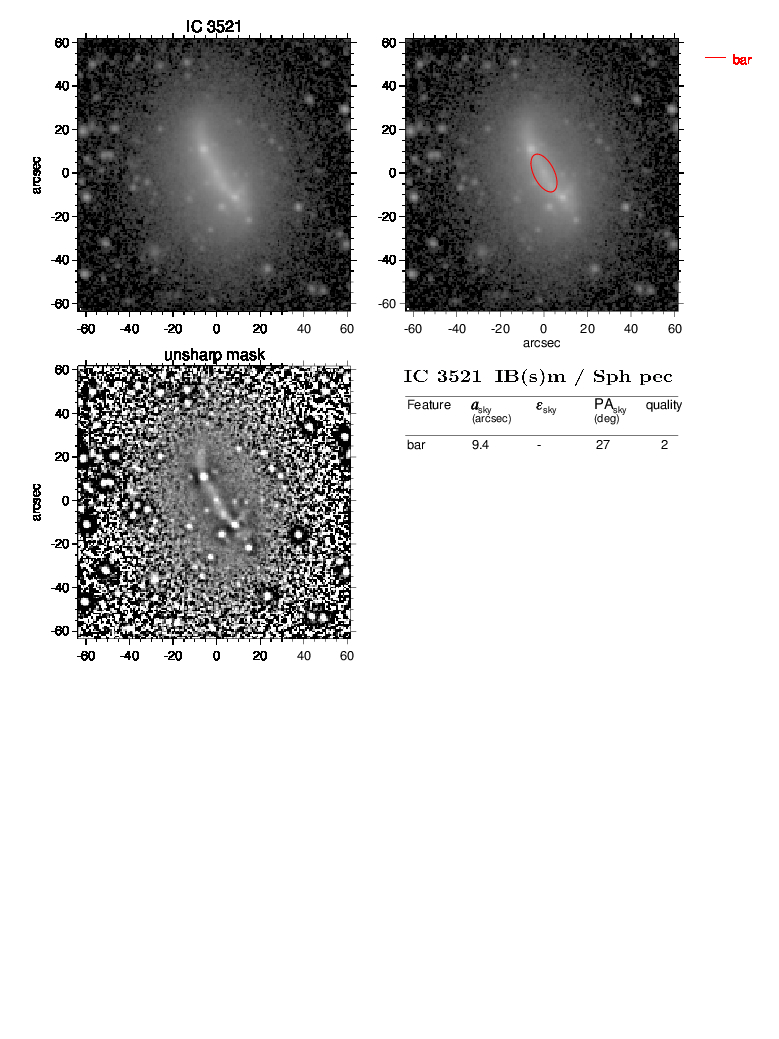

Galaxy # 238
IC3521
IB(s)m/Sph,pec
T = 6

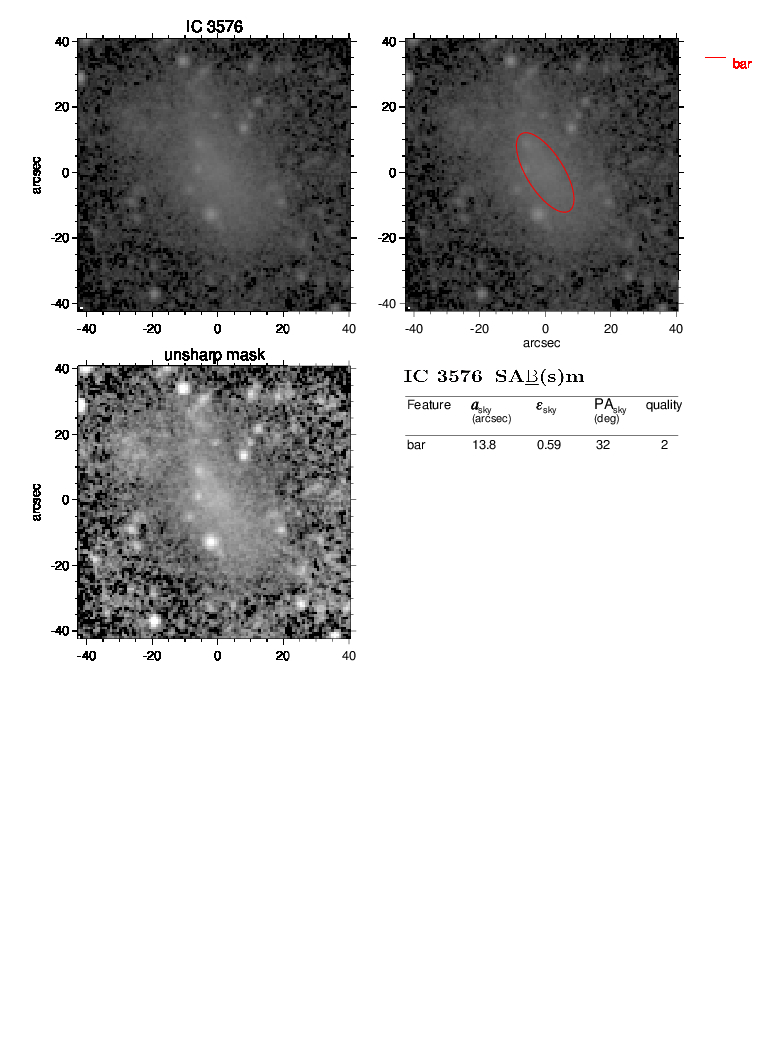

Galaxy # 239
IC3576
SA_B(s)m
T = 6
Galaxy # 240
IC3583
IA_B(s)m
T = 9
Galaxy # 241
IC3611
SB(s)m:/Sph
T = 4

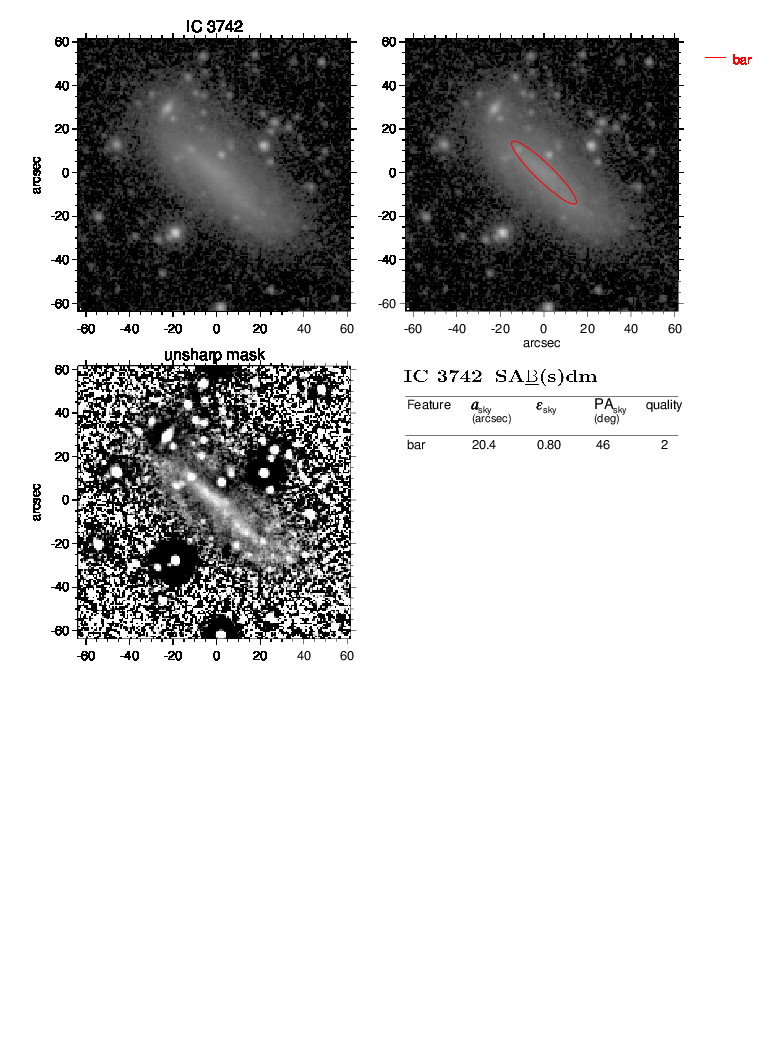

Galaxy # 242
IC3742
SA_B(s)dm
T = 3
Galaxy # 243
IC3806
SA(r)0+
T = -1
Galaxy # 244
IC3881
SAB(s)dm,sp
T = 4

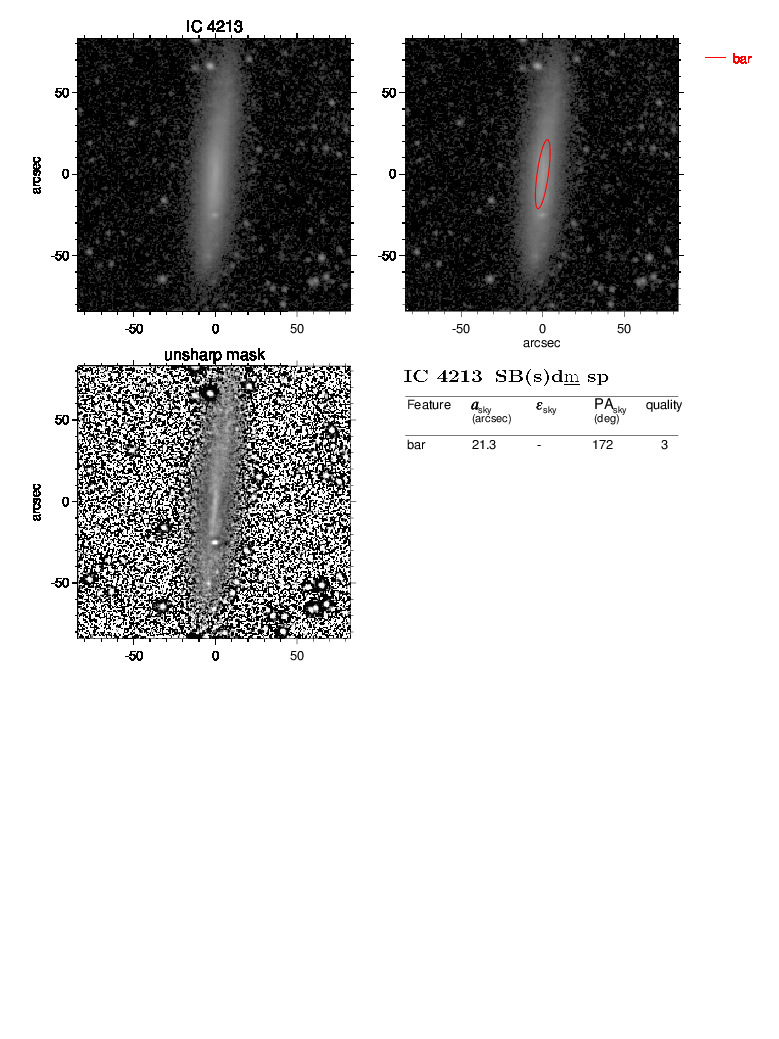

Galaxy # 245
IC4213
SB(s)d_m,sp
T = 4
Galaxy # 246

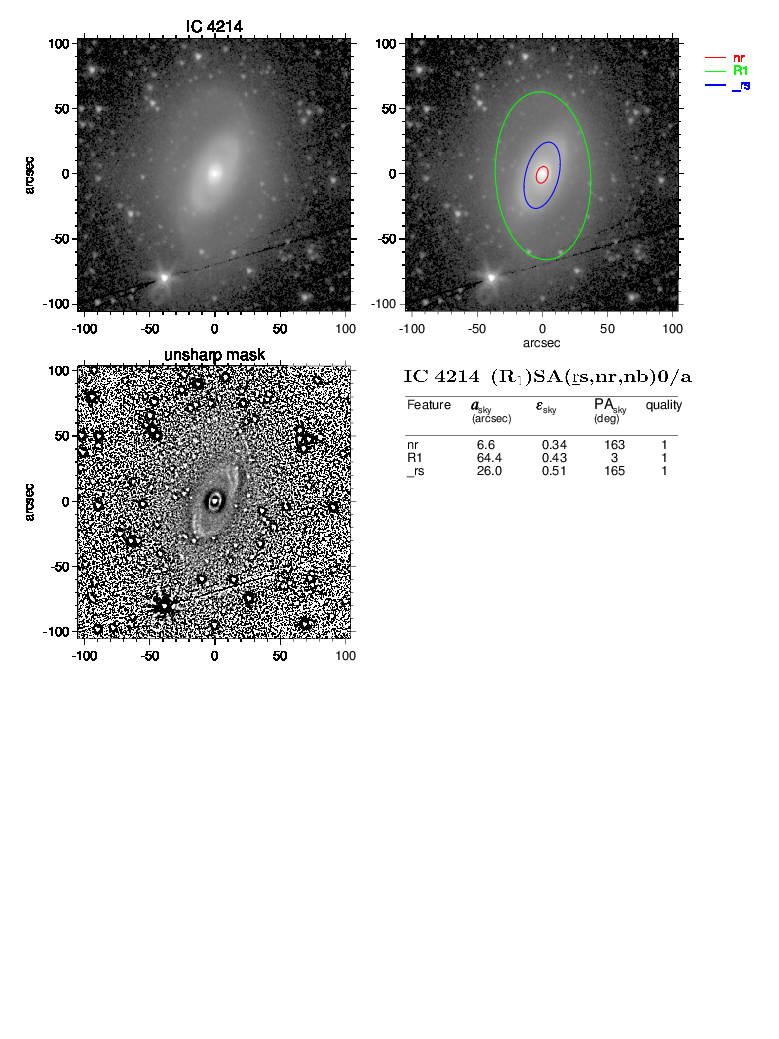

IC4214
(R1)SA(_rs,nr,nb)0/a
T = 0
Galaxy # 247
IC4216
SB(rs)d
T = 2
Galaxy # 248
IC4221
SB(rs)_dm
T = 9
Galaxy # 249
IC4237
SB(r)b
T = 3

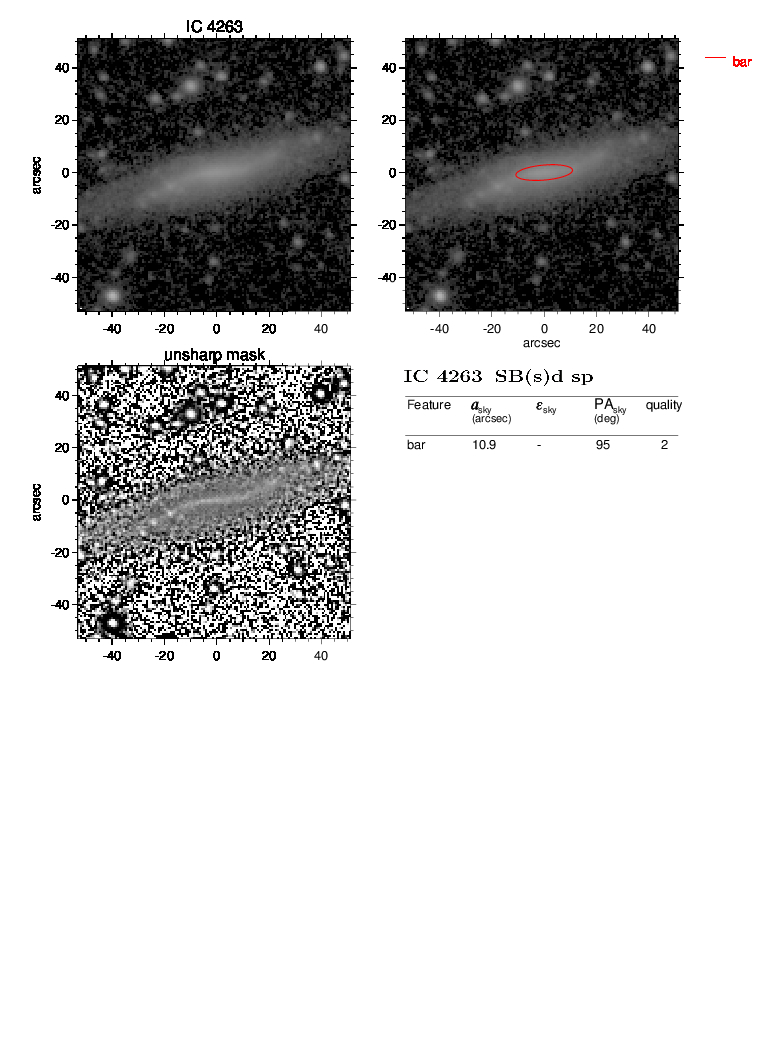

Galaxy # 250
IC4263
SB(s)d,sp
T = 4

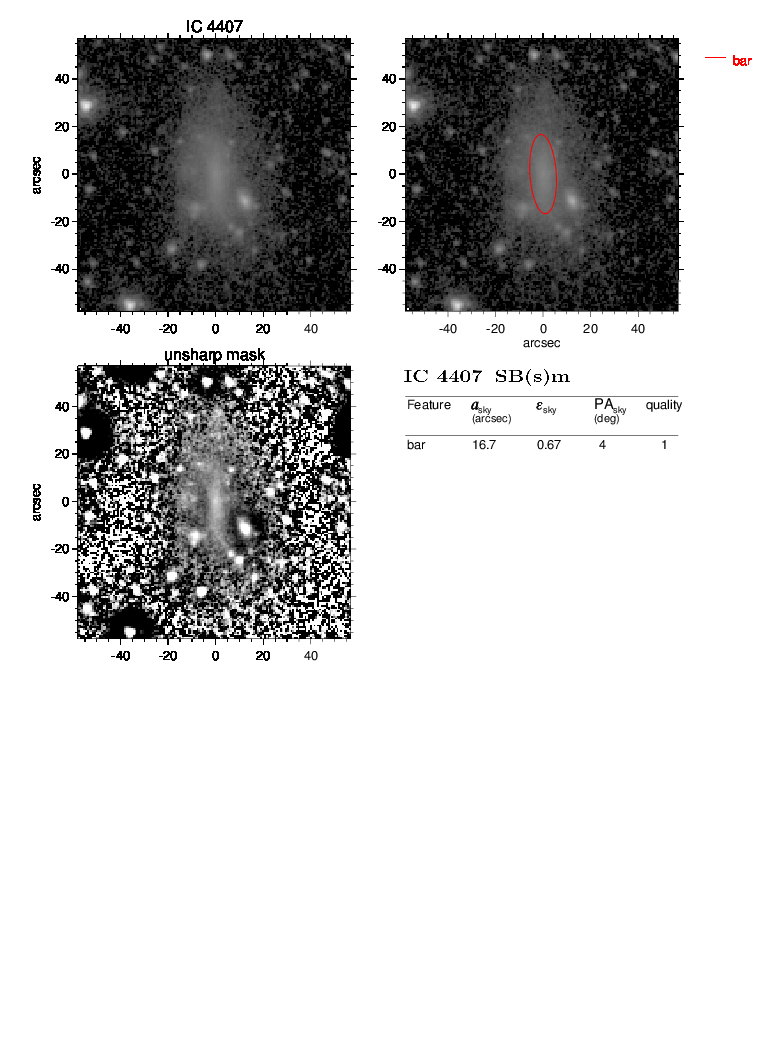

Galaxy # 251
IC4407
SB(s)m
T = 7
Galaxy # 252
IC4468
SA_B(rs_)bc
T = 5

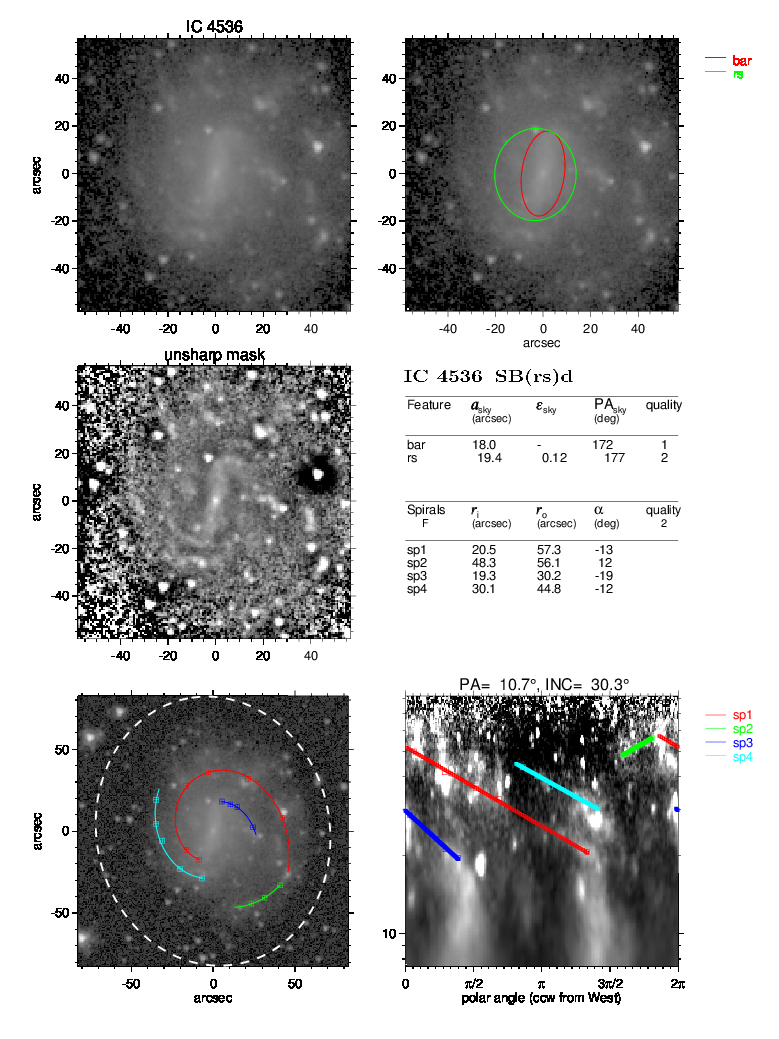

Galaxy # 253
IC4536
SB(rs)d
T = 6

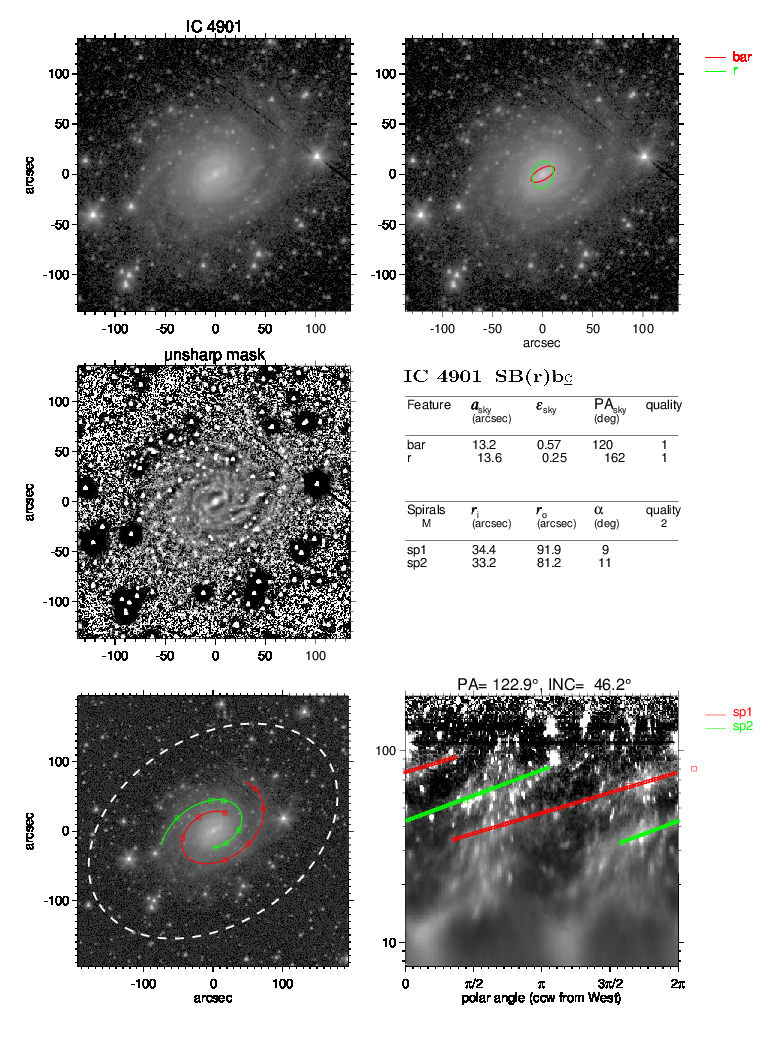

Galaxy # 254
IC4901
SB(r)b_c
T = 7

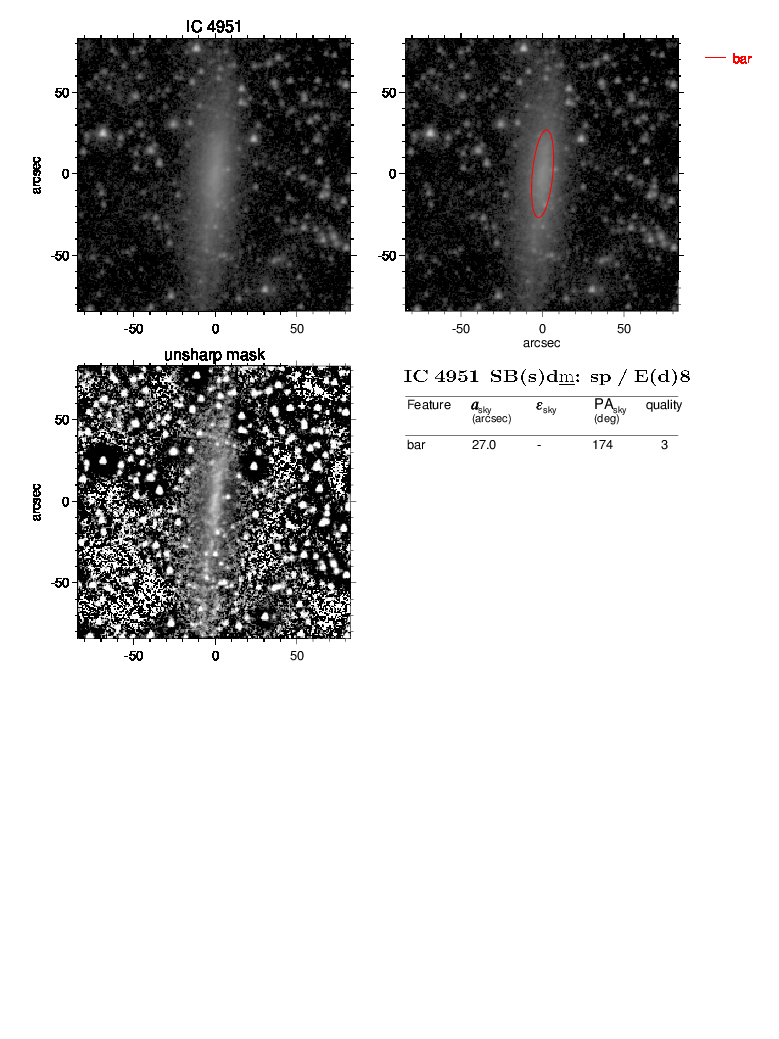

Galaxy # 255
IC4951
SB(s)d_m:,sp/E(d)8
T = 0

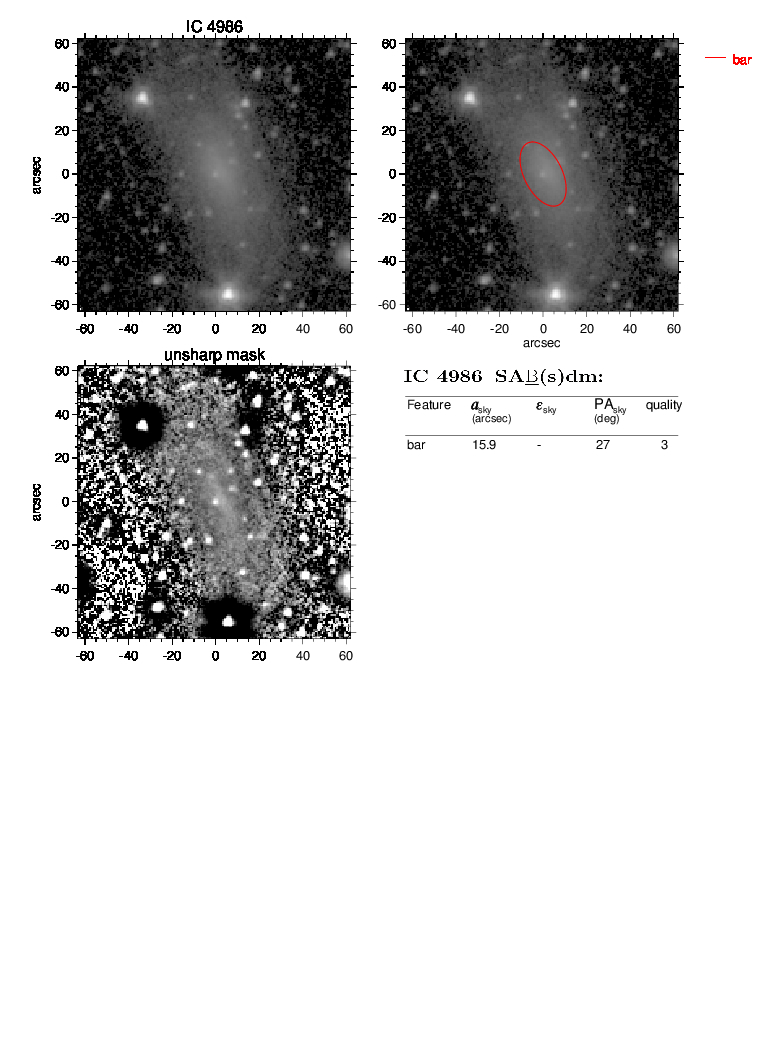

Galaxy # 256
IC4986
SA_B(s)dm:
T = 3
Galaxy # 257
IC5007
(R'2)SB(s)dm
T = 4

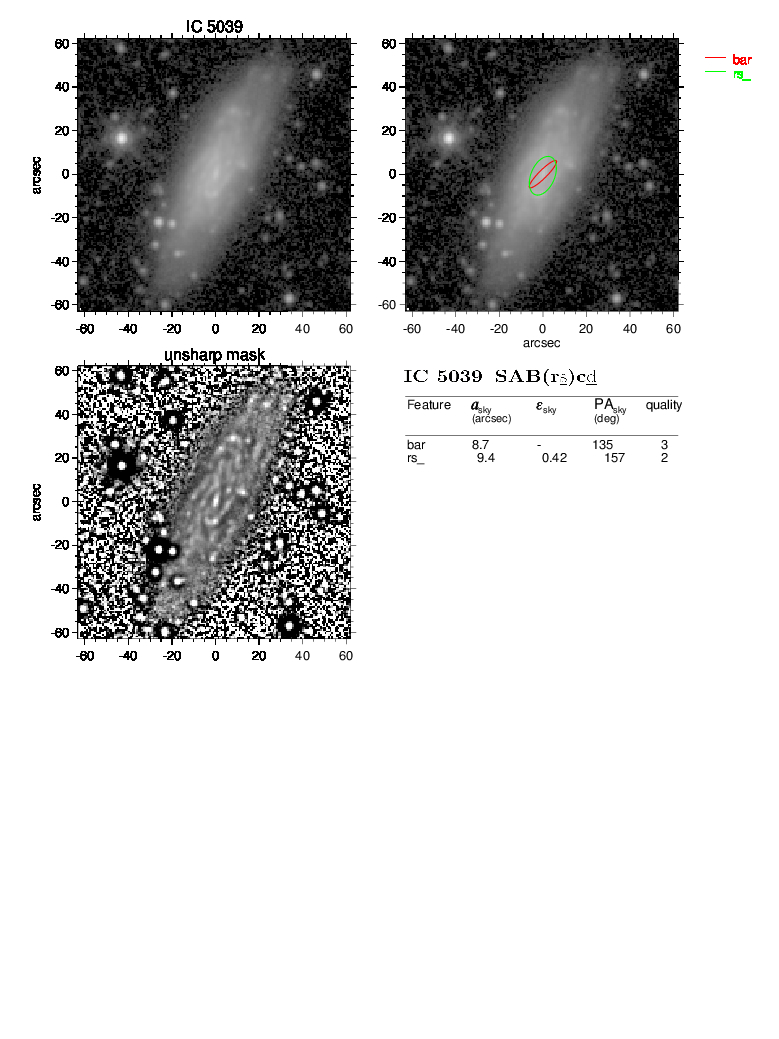

Galaxy # 258
IC5039
SAB(rs_)c_d
T = 4
Galaxy # 259

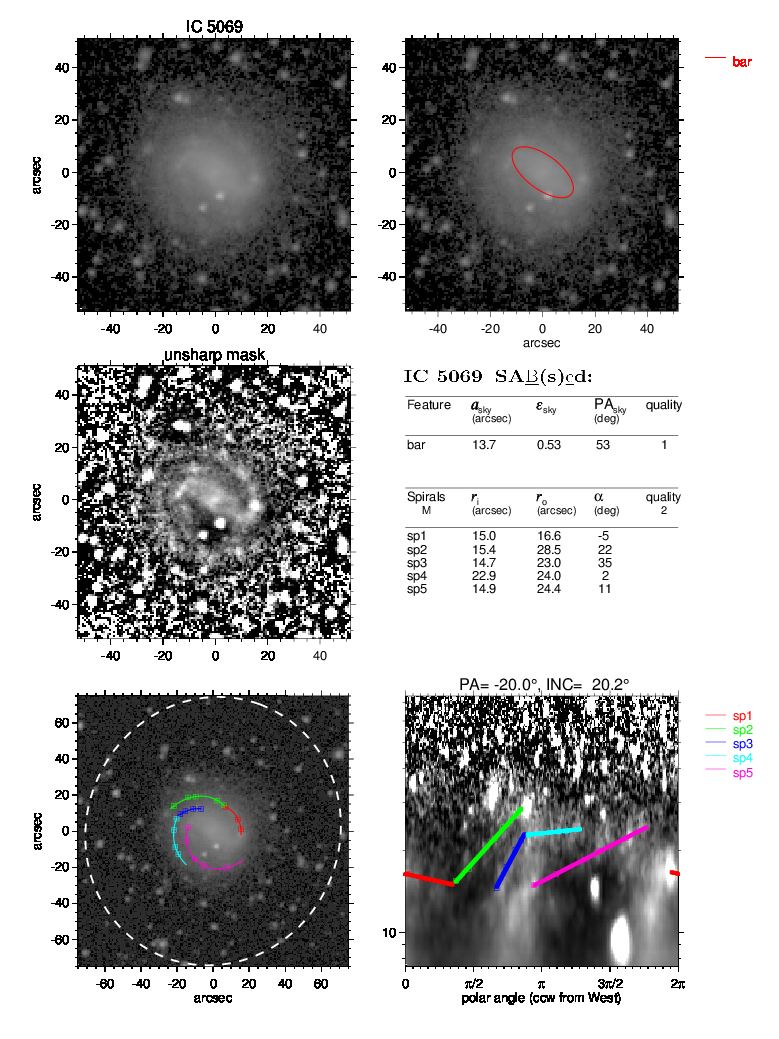

IC5069
SA_B(s)_cd:
T = 0

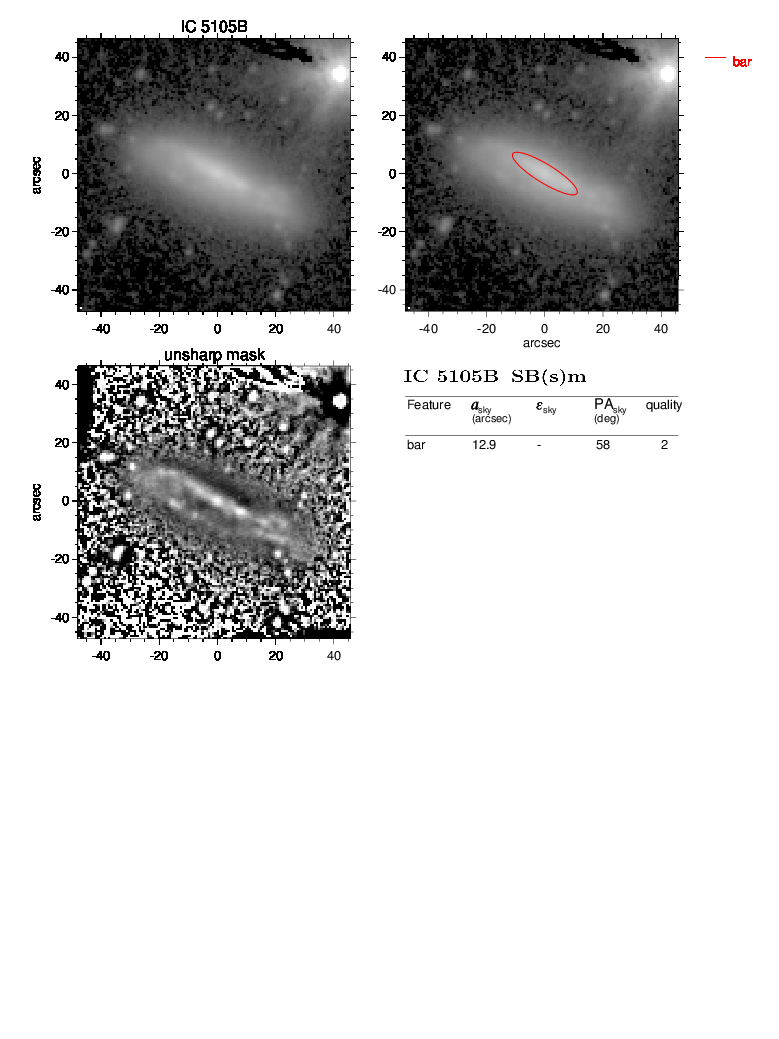

Galaxy # 260
IC5105B
SB(s)m
T = 6
Galaxy # 261

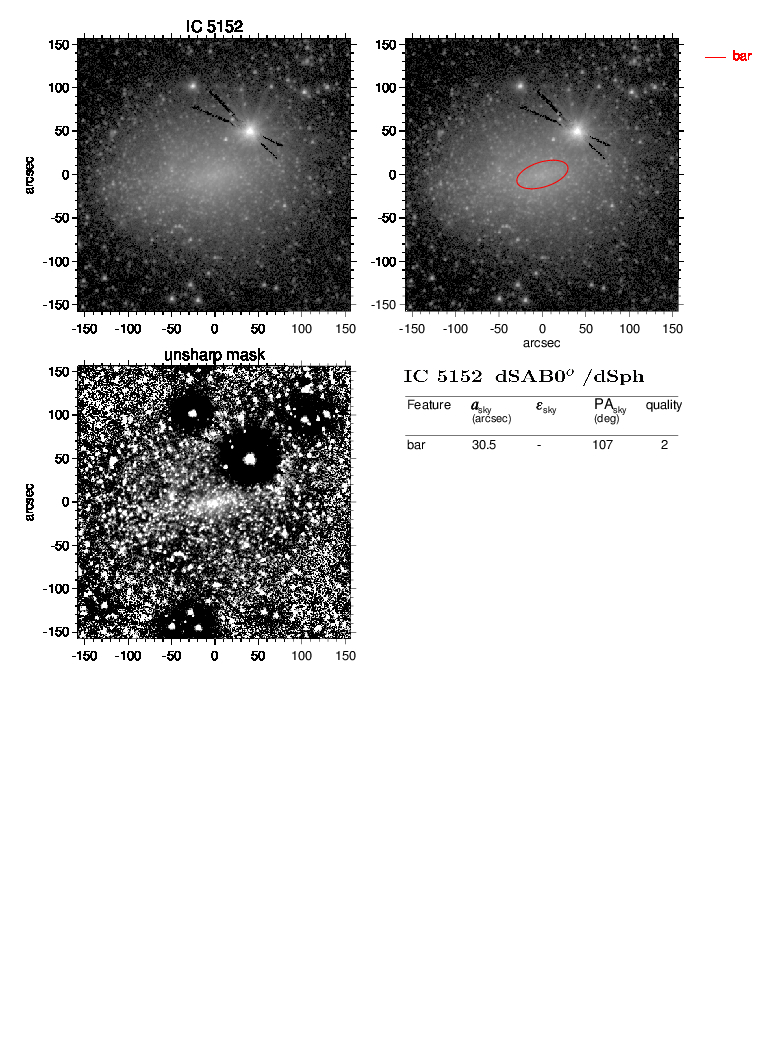

IC5152
dSAB0o/dSph
T = 9

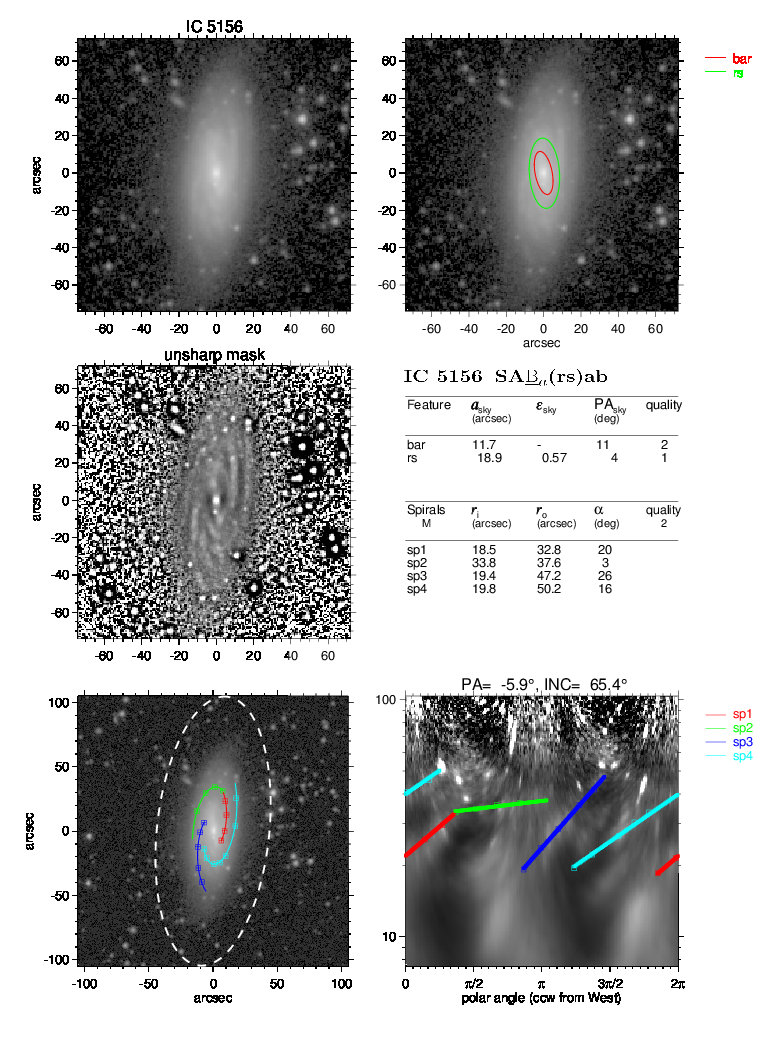

Galaxy # 262
IC5156
SA_Ba(rs)ab
T = 9
Galaxy # 263
IC5201
SB(s)d
T = 6
Galaxy # 264

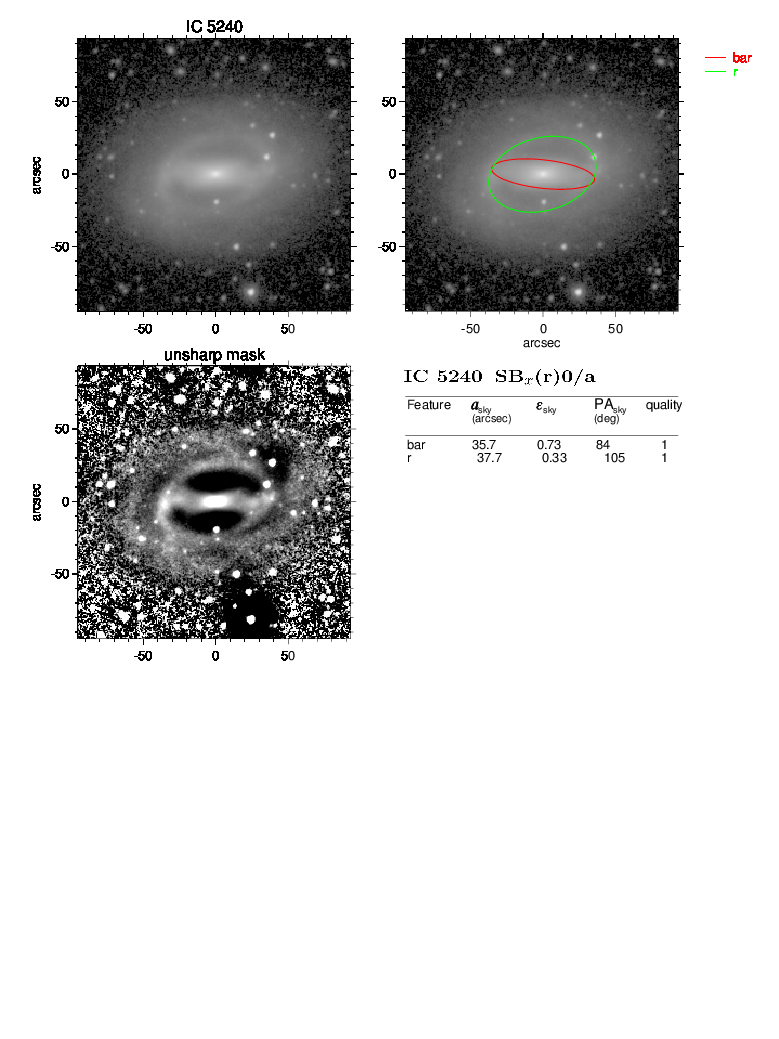

IC5240
SBx(r)0/a
T = -3

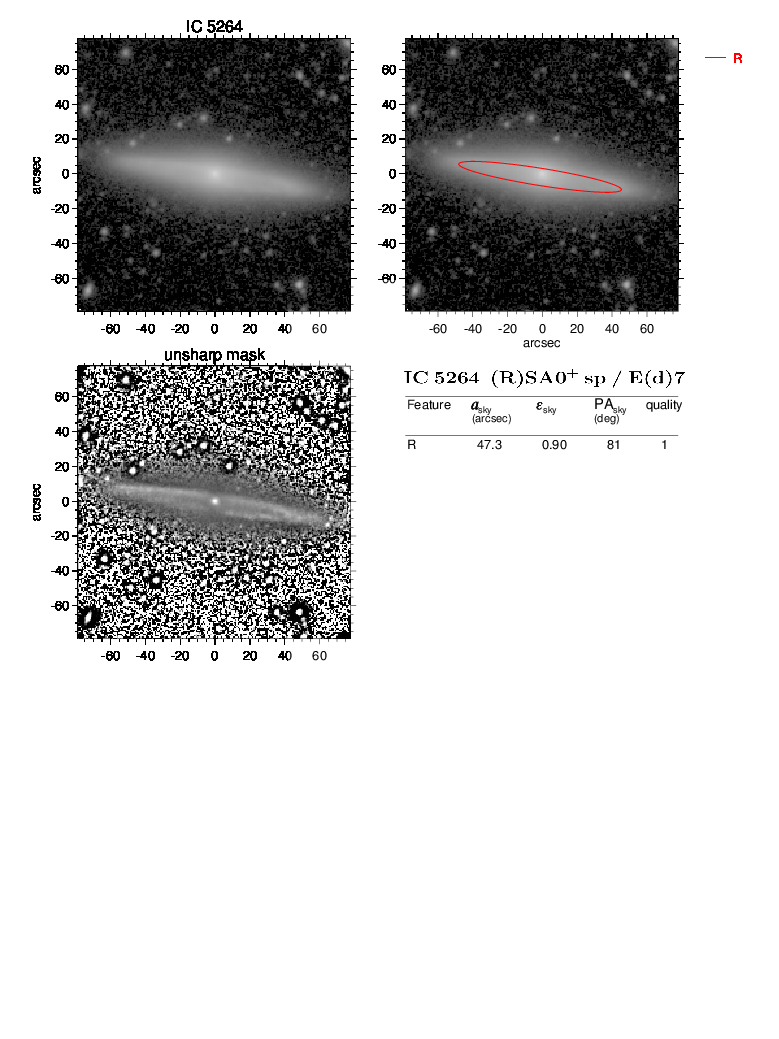

Galaxy # 265
IC5264
(R)SA0+,sp/E(d)7
T = -1
Galaxy # 266
IC5267
(RL)SA(r,l)0/a
T = 6
Galaxy # 267
IC5269A
SAB(s)d_m
T = 0
Galaxy # 268
IC5269B
SAB(s)cd,sp
T = -4
Galaxy # 269
IC5269C
SAB(s)_dm
T = 4

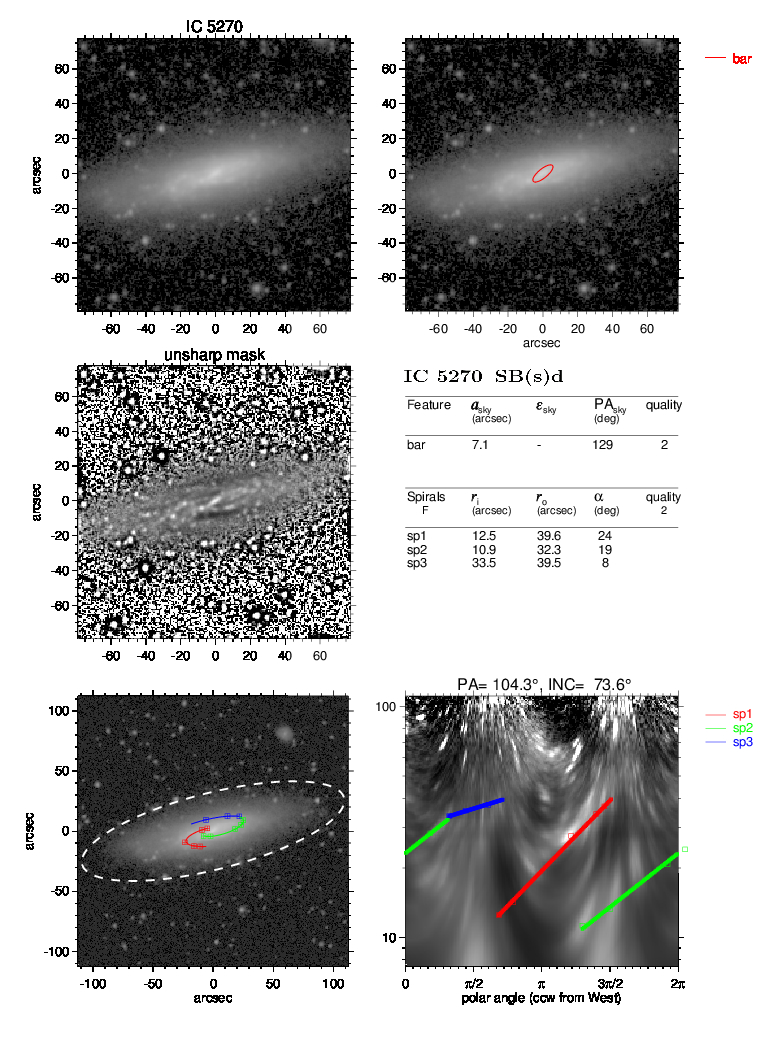

Galaxy # 270
IC5270
SB(s)d
T = 0
Galaxy # 271
IC5271
SAB(rs)ab
T = 9
Galaxy # 272

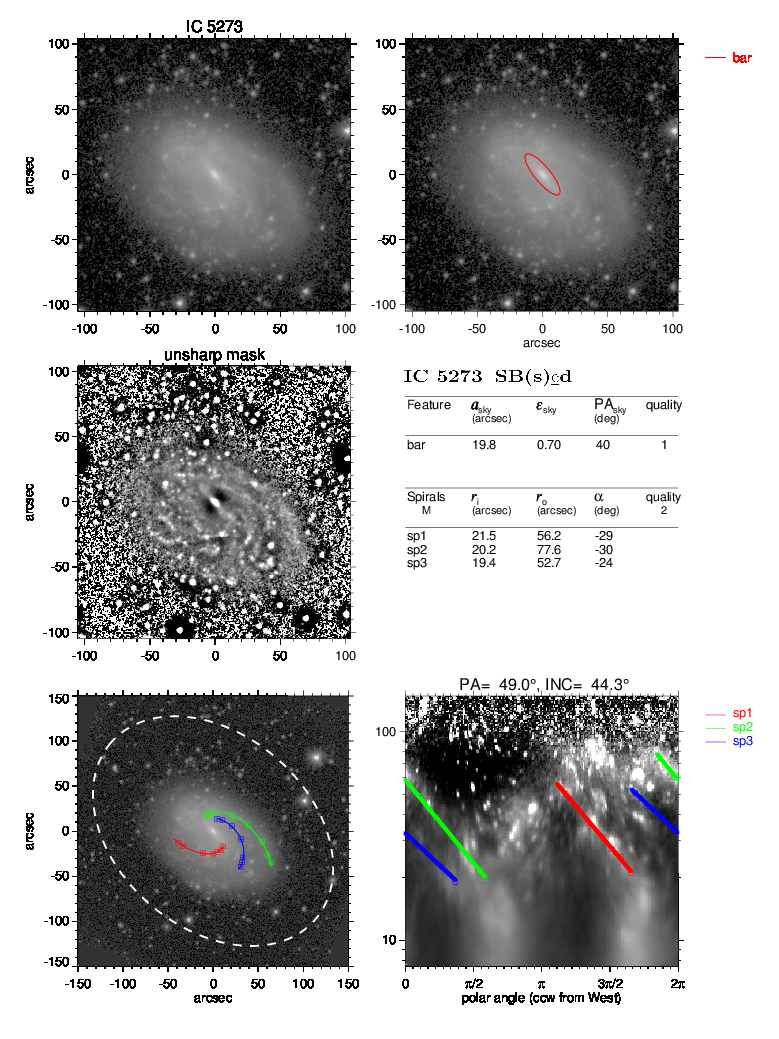

IC5273
SB(s)_cd
T = 2

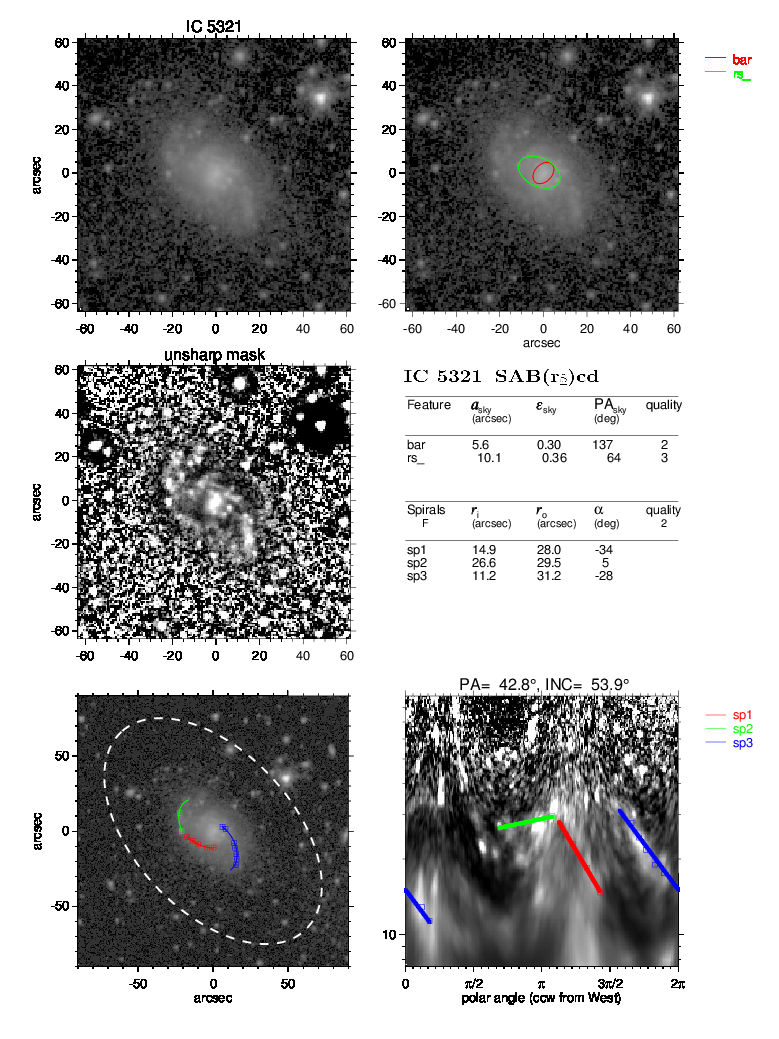

Galaxy # 273
IC5321
SAB(rs_)cd
T = -5

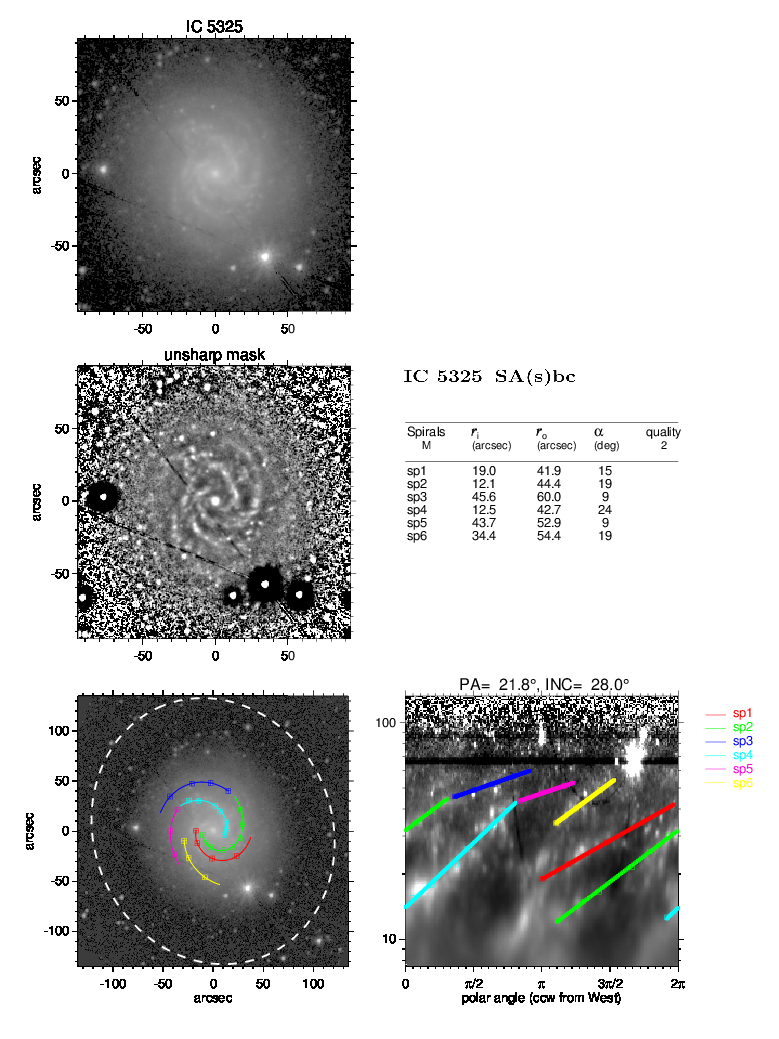

Galaxy # 274
IC5325
SA(s)bc
T = 1
Galaxy # 275

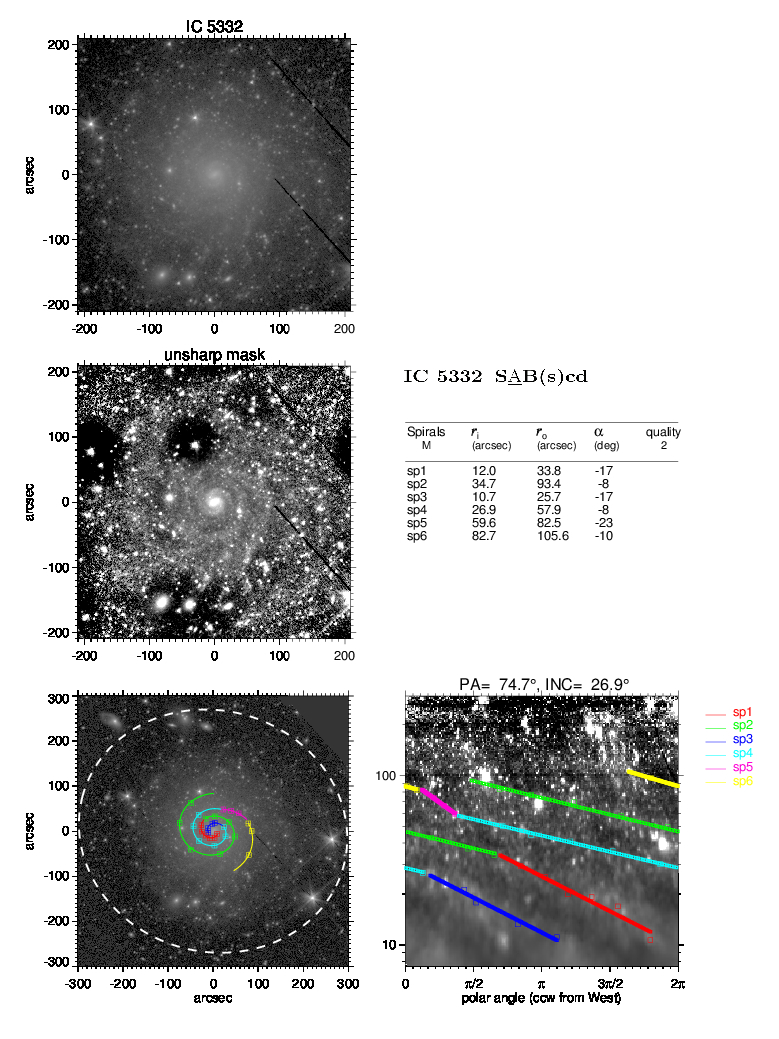

IC5332
S_AB(s)cd
T = 8
Galaxy # 276
IC5334
(R'L)SA(l)0/a,sp
T = 10

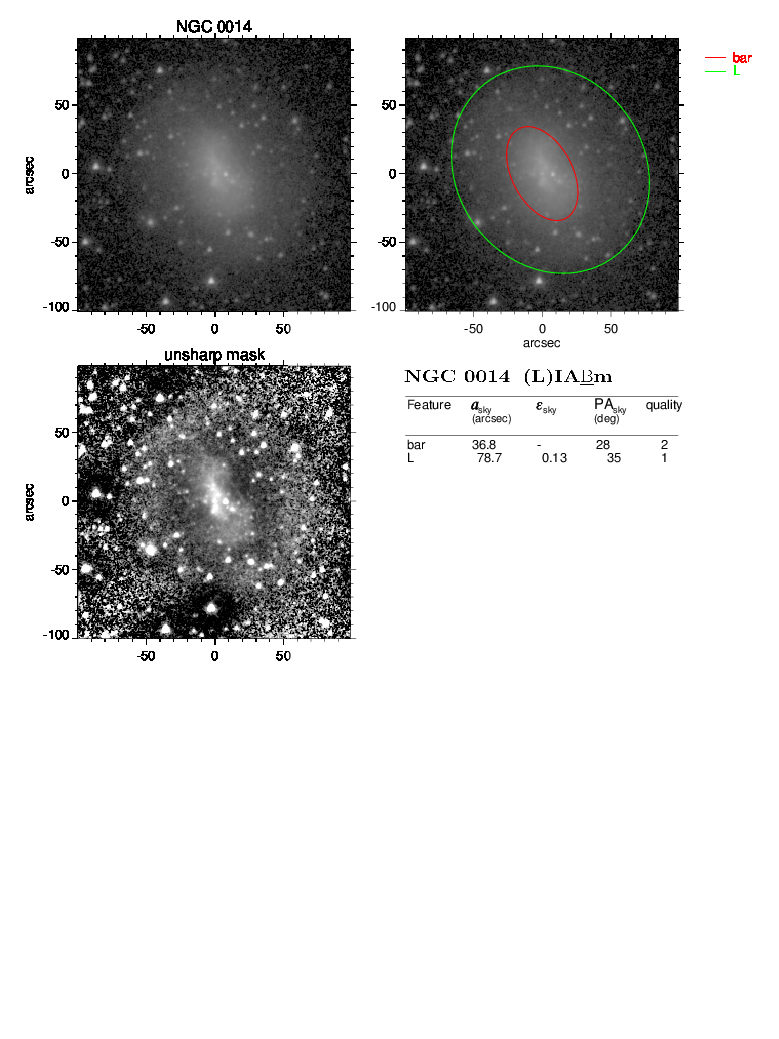

Galaxy # 277
NGC0014
(L)IA_Bm
T = 7
Galaxy # 278
NGC0024
S(rs,nd)d:,sp
T = 9
Galaxy # 279

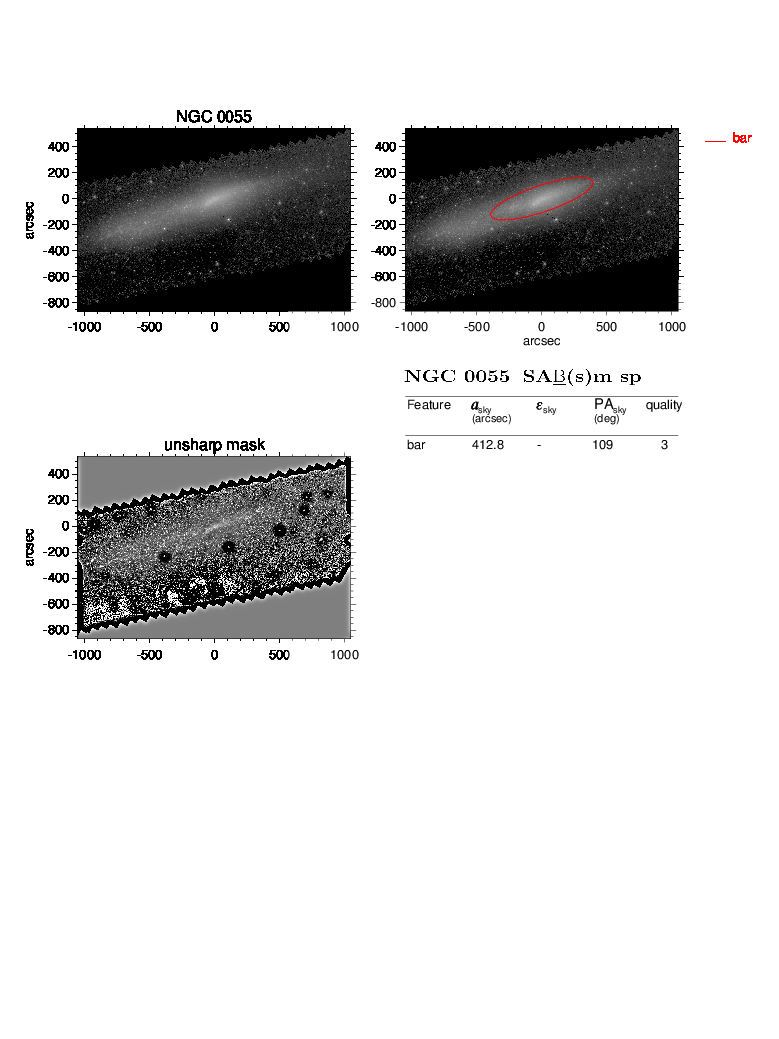

NGC0055
SA_B(s)m,sp
T = 10

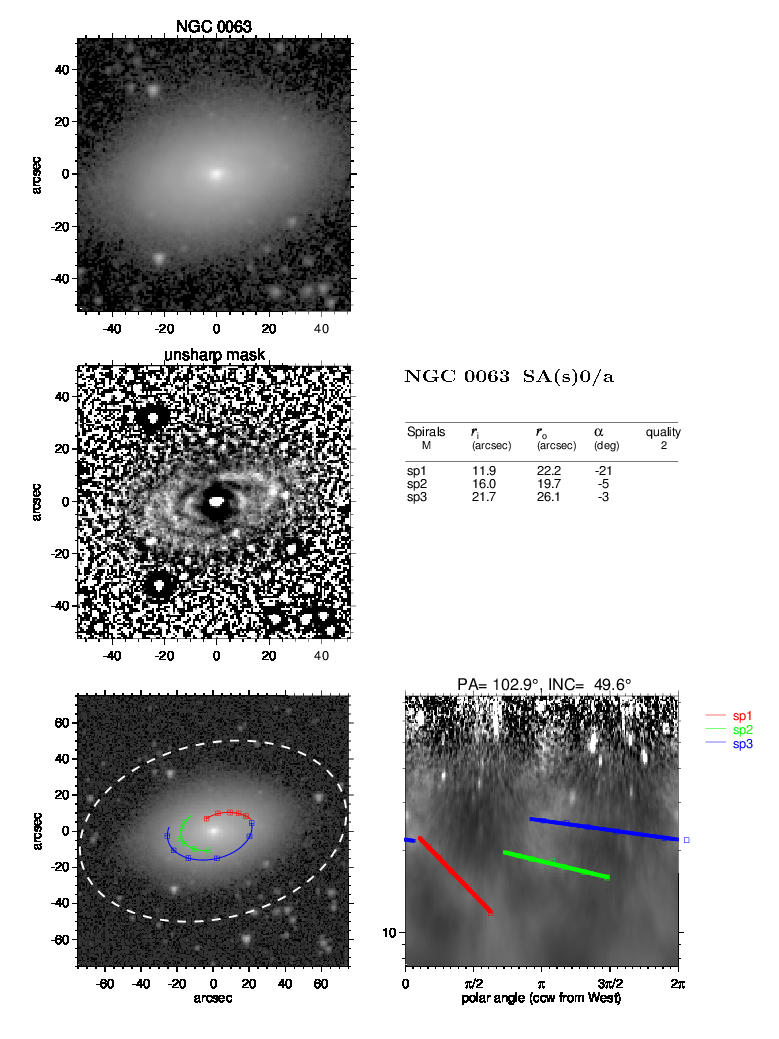

Galaxy # 280
NGC0063
SA(s)0/a
T = 3
Galaxy # 281

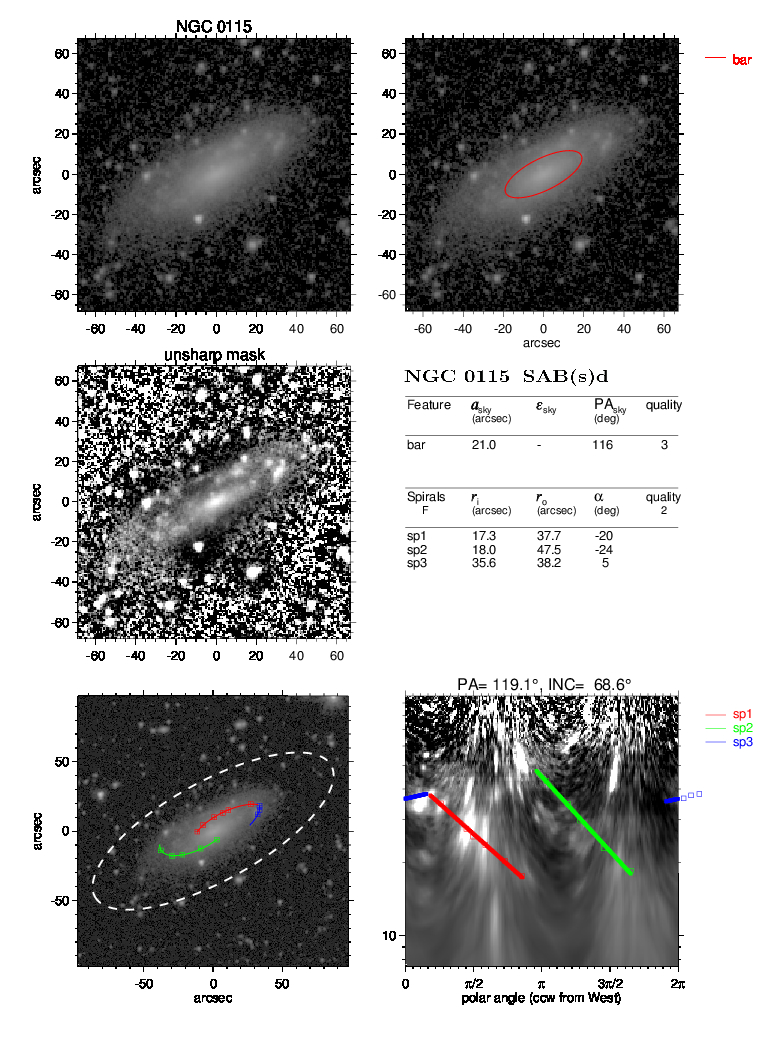

NGC0115
SAB(s)d
T = 9
Galaxy # 282
NGC0131
SAB(rs_)b_c:
T = 7

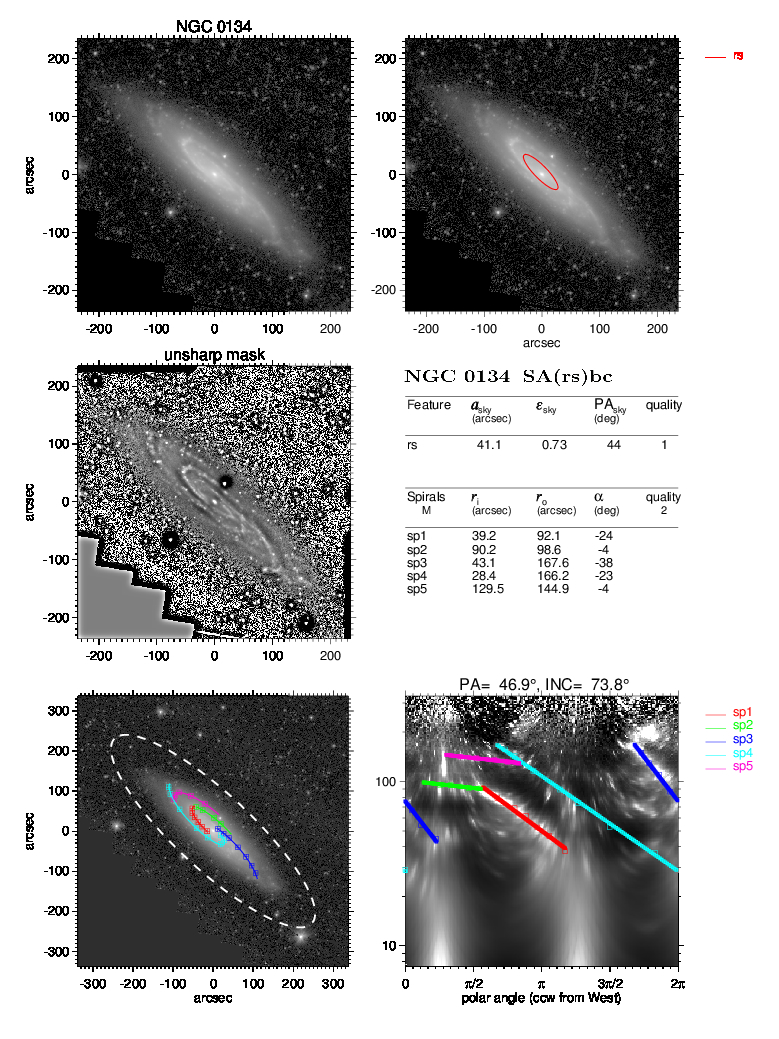

Galaxy # 283
NGC0134
SA(rs)bc
T = 0

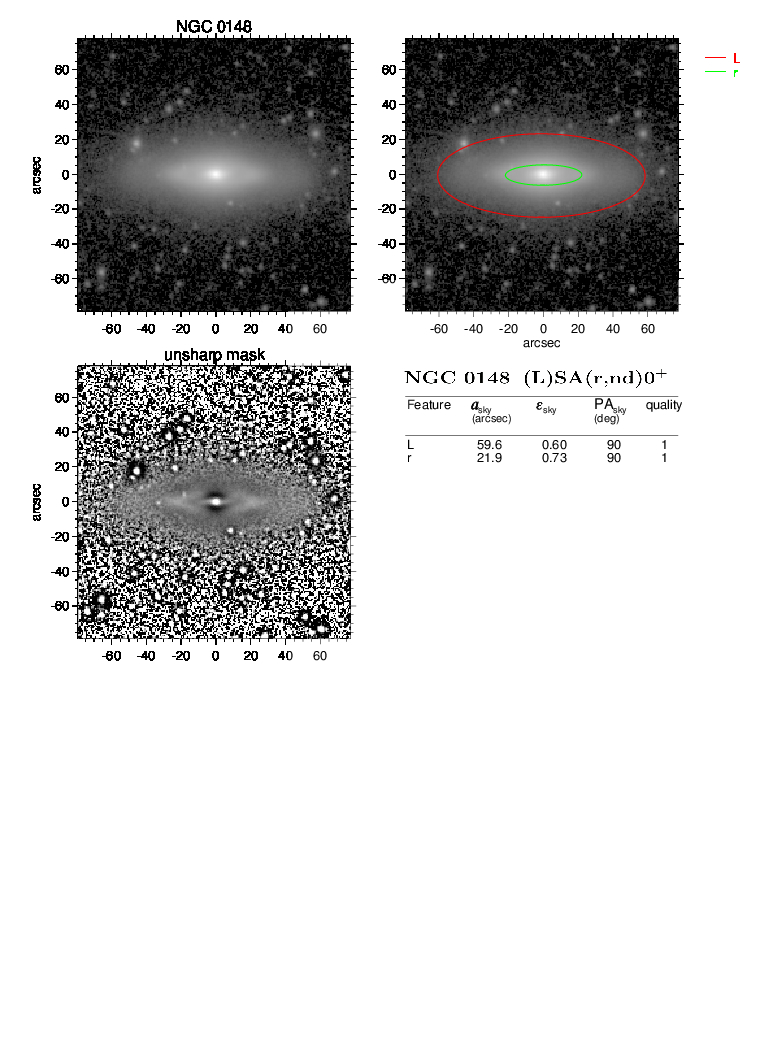

Galaxy # 284
NGC0148
(L)SA(r,nd)0+
T = 9
Galaxy # 285
NGC0150
SAB(rs_)ab
T = 8
Galaxy # 286

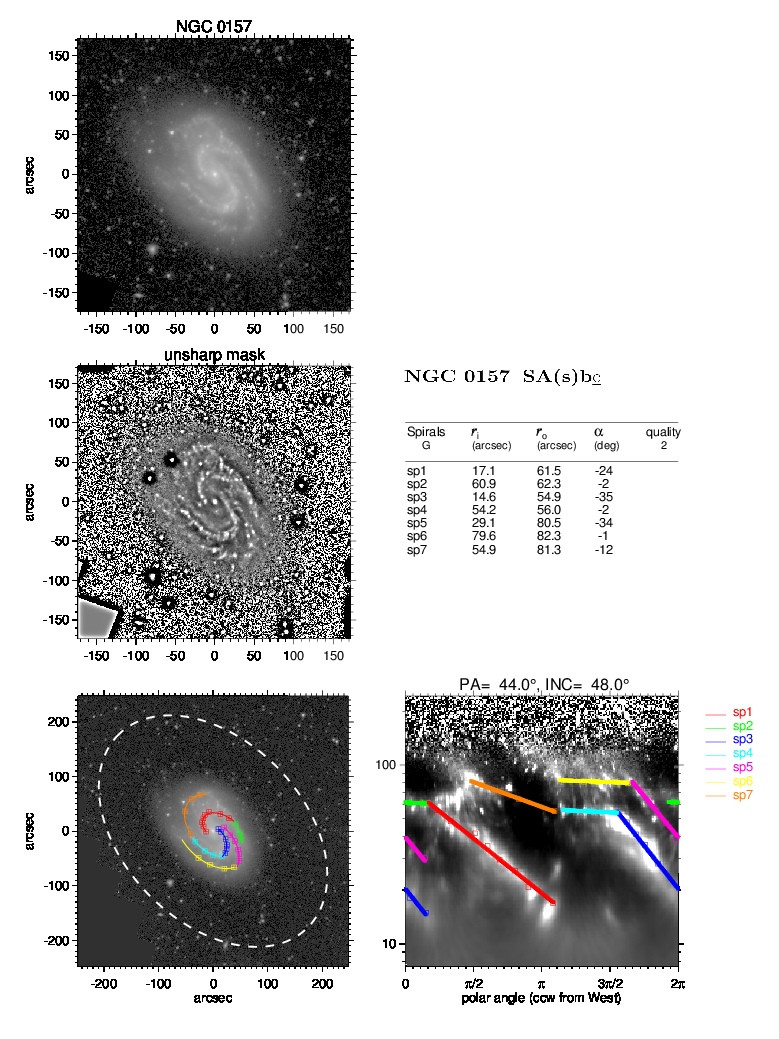

NGC0157
SA(s)b_c
T = 9
Galaxy # 287

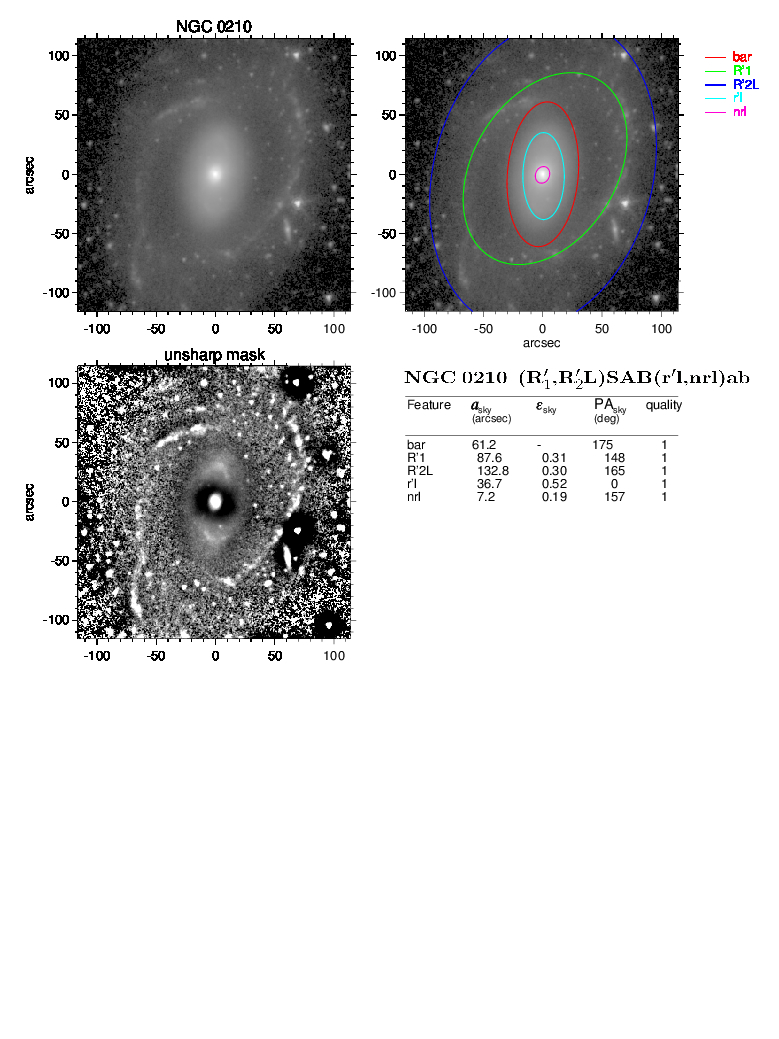

NGC0210
(R'1,R'2L)SAB(r'l,nrl)ab
T = 9

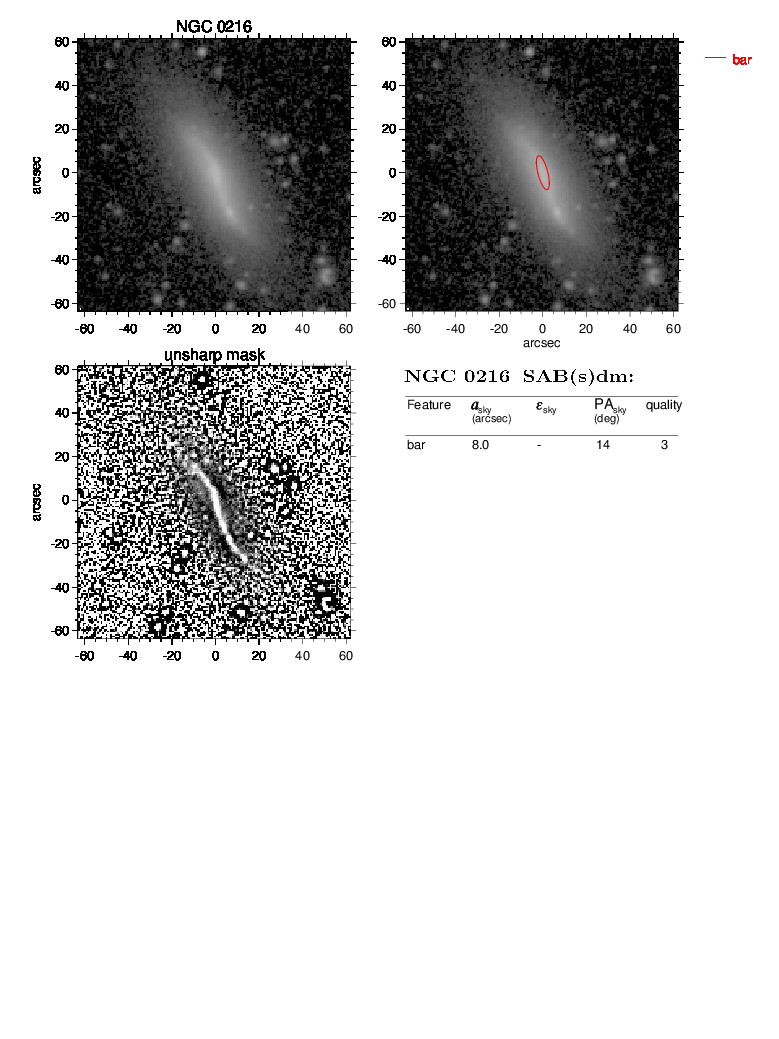

Galaxy # 288
NGC0216
SAB(s)dm:
T = 8

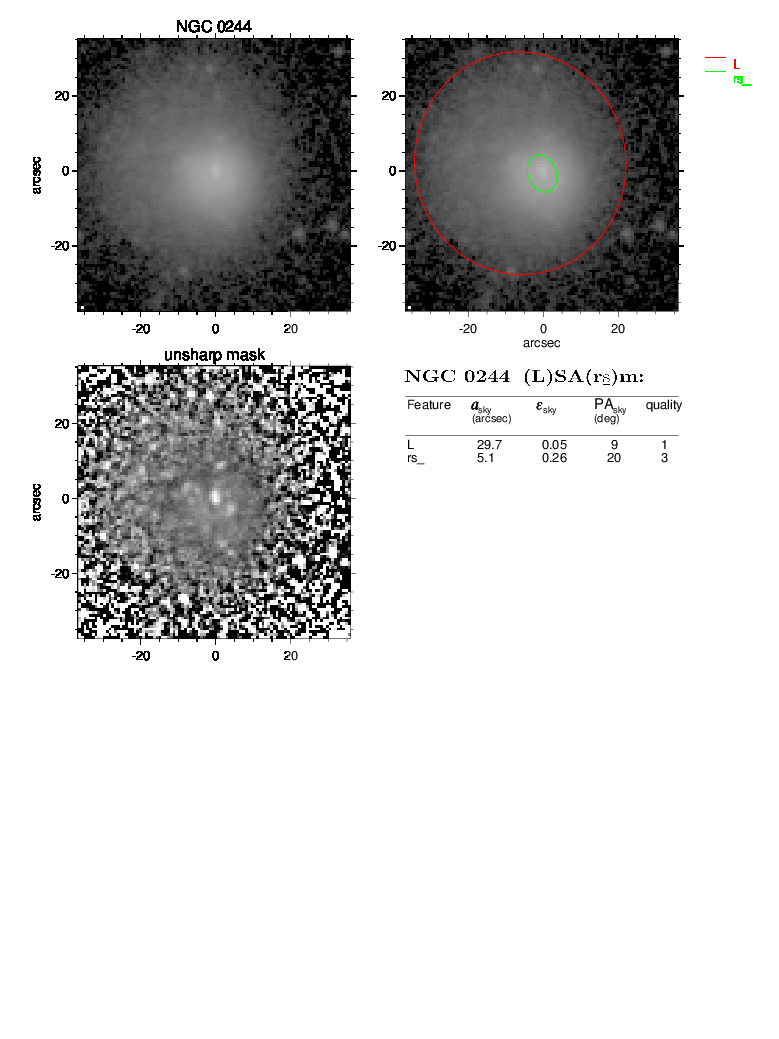

Galaxy # 289
NGC0244
(L)SA(rs_)m:
T = 10

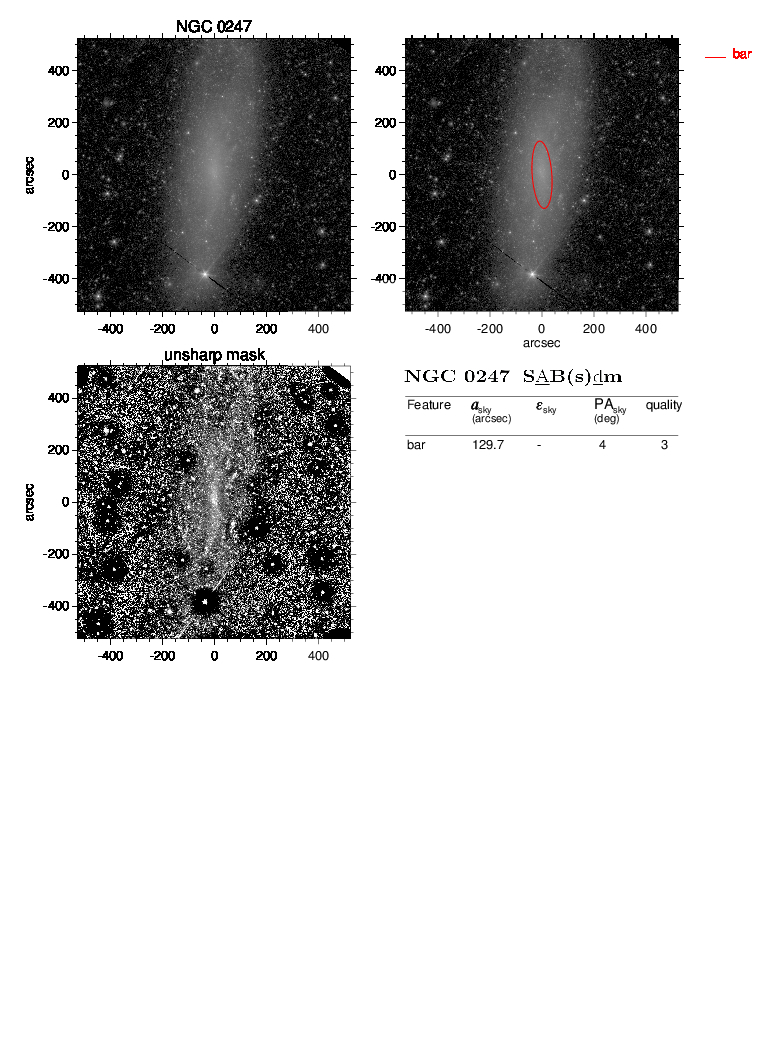

Galaxy # 290
NGC0247
S_AB(s)_dm
T = 9

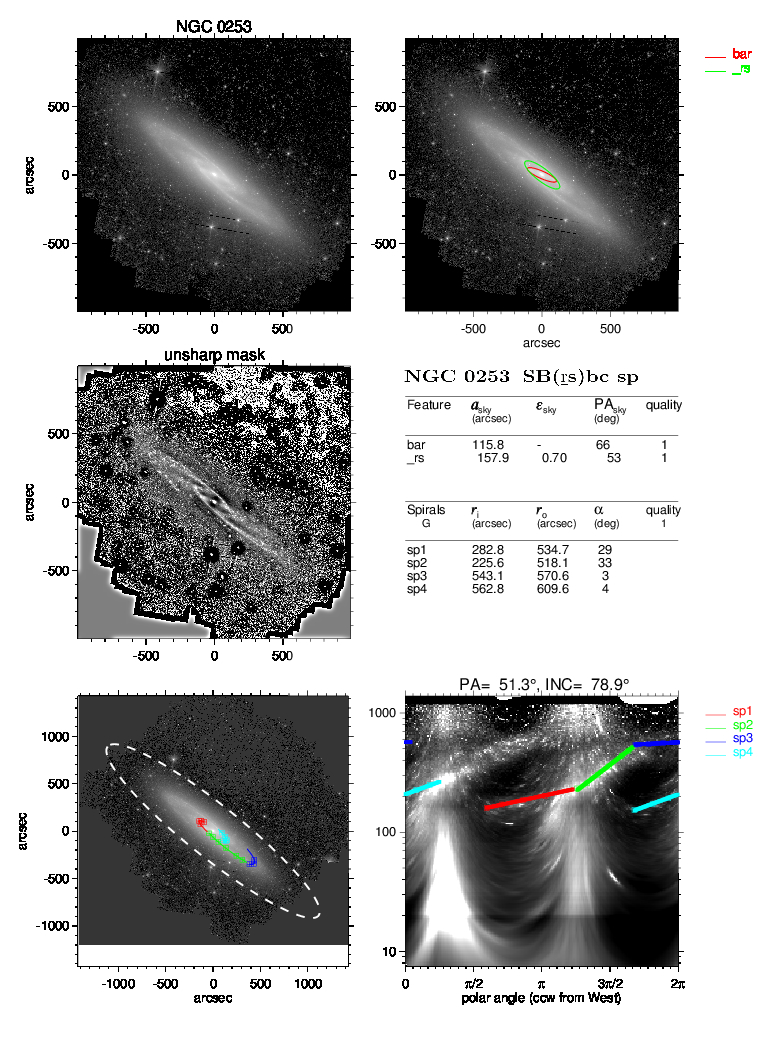

Galaxy # 291
NGC0253
SB(_rs)bc,sp
T = 9
Galaxy # 292
NGC0254
(_RL)SAB(l)0+
T = 8
Galaxy # 293
NGC0255
SB(rs)c_d
T = 10

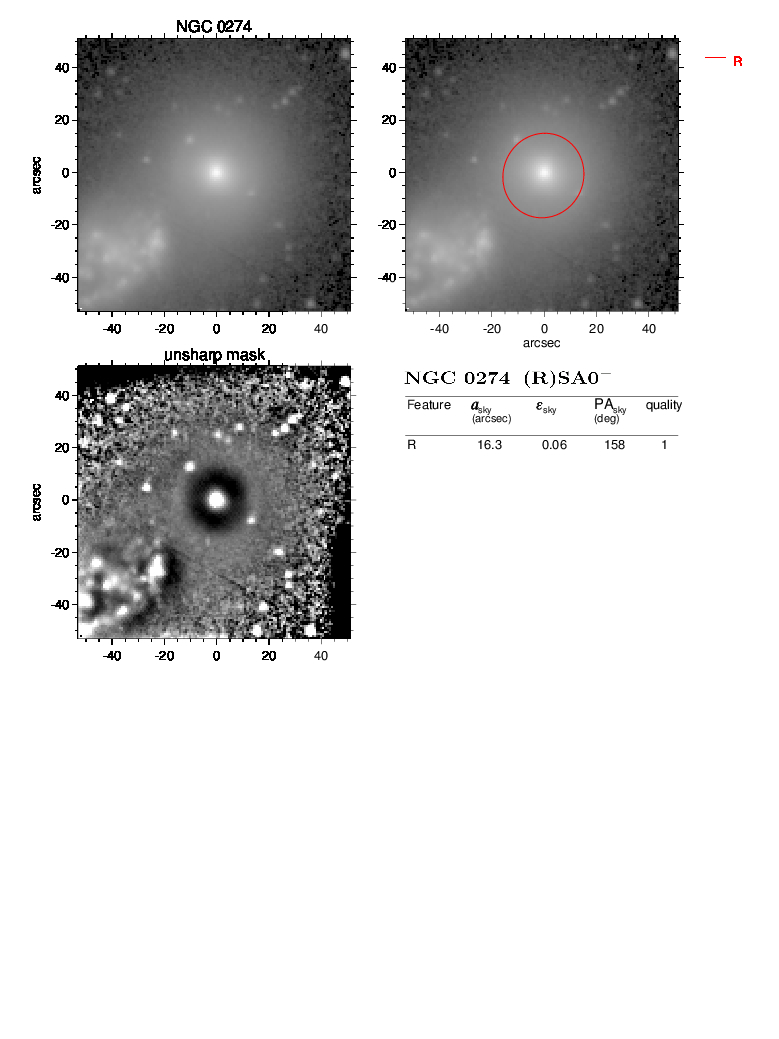

Galaxy # 294
NGC0274
(R)SA0-
T = 10
Galaxy # 295

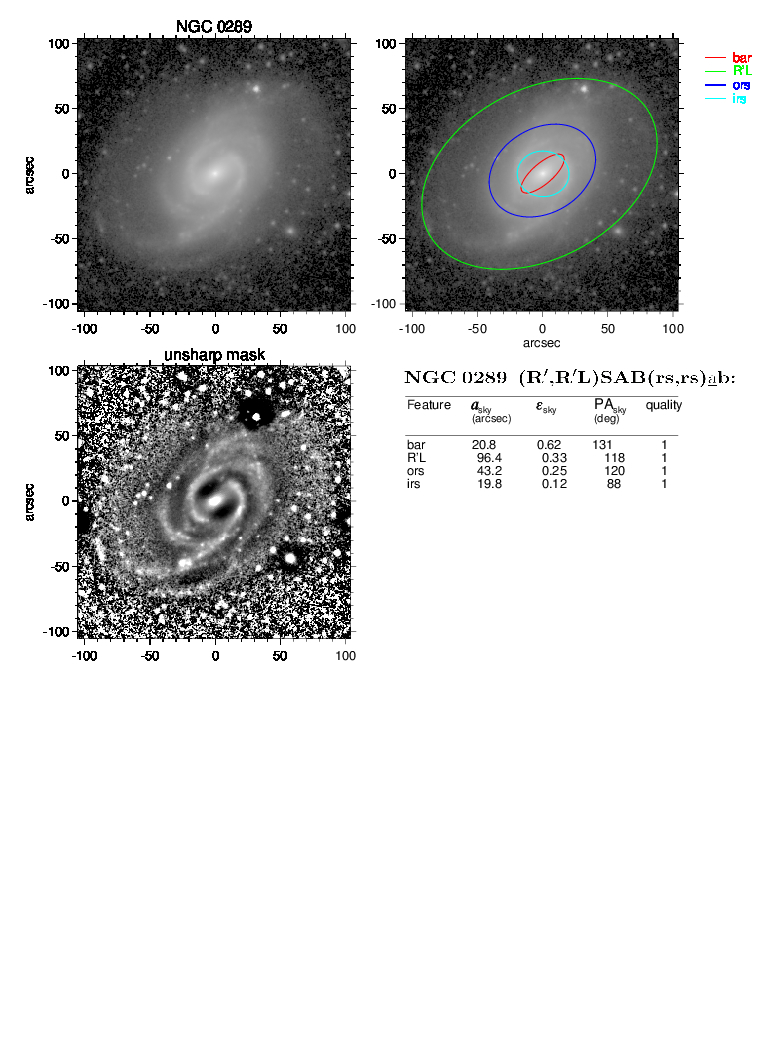

NGC0289
(R',R'L)SAB(rs,rs)_ab:
T = 8

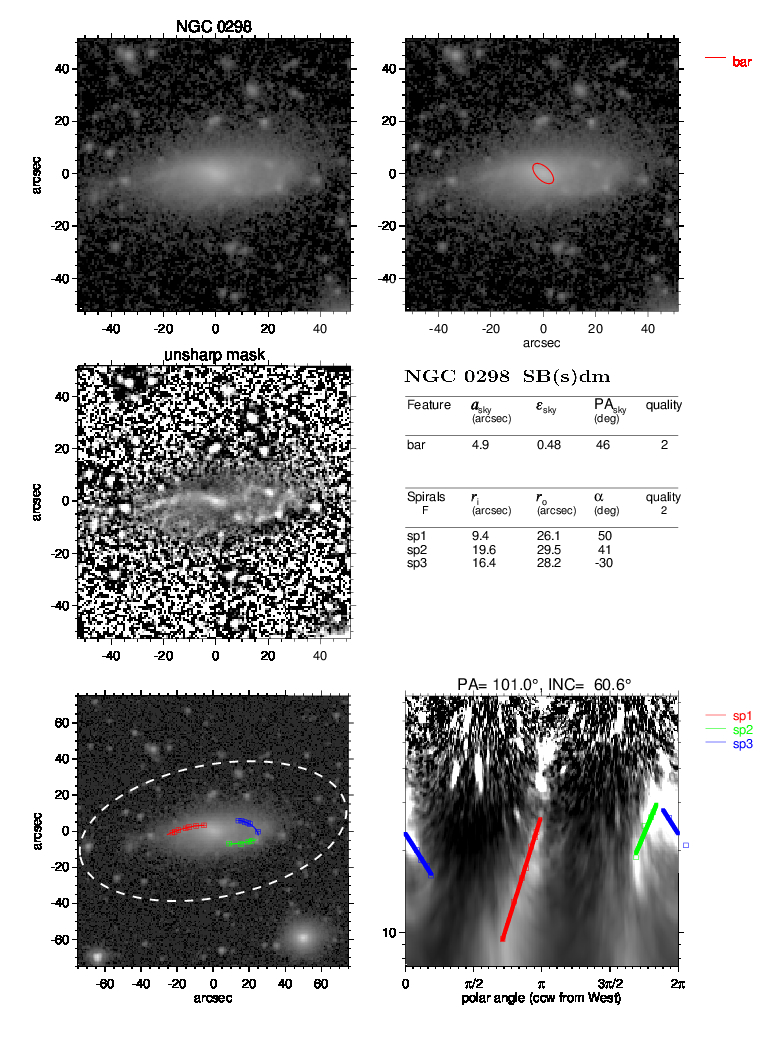

Galaxy # 296
NGC0298
SB(s)dm
T = 7
Galaxy # 297
NGC0300
SA(s)dm
T = 10
Galaxy # 298
NGC0337A
SAB(s)m
T = 8
Galaxy # 299
NGC0337
SAB(rs_)cd:,pec
T = 7

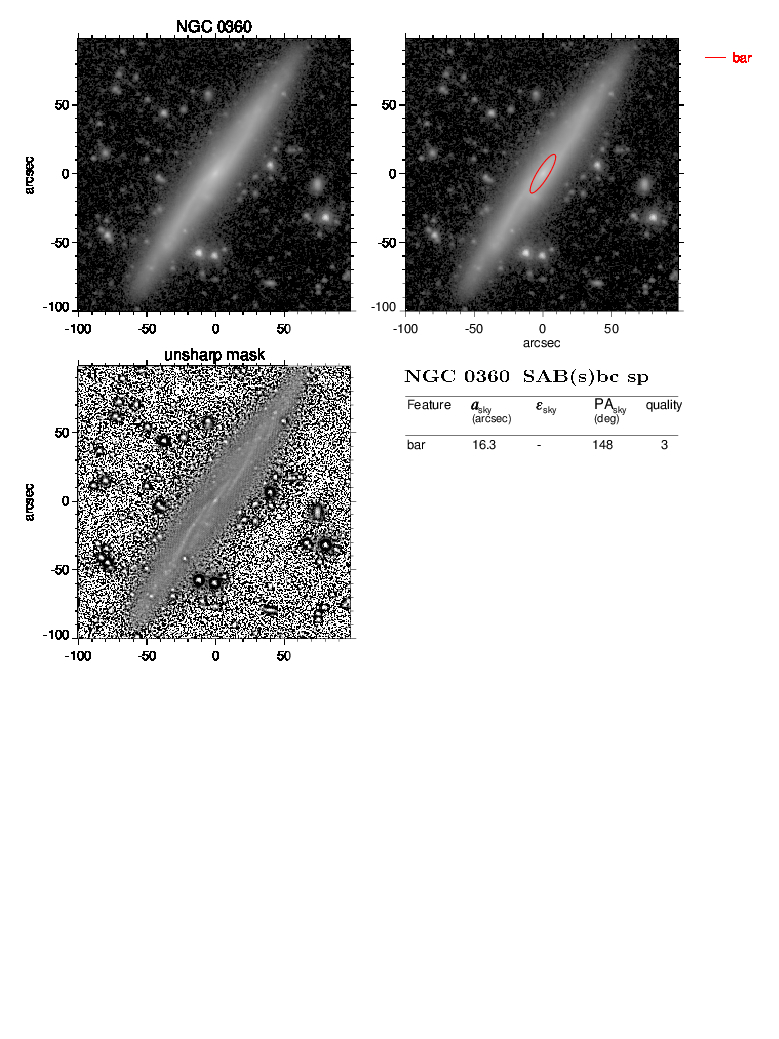

Galaxy # 300
NGC0360
SAB(s)bc,sp
T = 6
