Atlas of structures in the S⁴G

26.02.2016

This web page shows the morphological features (bars, lenses, rings and spiral structures) in the
Spitzer Survey of Stellar Structure in Galaxies (S⁴G) overplotted on the original image of the galaxy.
Detailed information on the measurements of the structures is found in Herrera-Endoqui et al. (2015).
The data tables are available at the Strasbourg astronomical Data Center.

The morphological classification and the Hubble type (T) are taken from Buta et al. (2015).
For information about the S⁴G please see Sheth et al. 2010.
The inclination and orientation parameters are taken from Salo et al. (2015).

Instructions:
1. Click on the image to see a bigger jpg version.
2. Note on images: shown are the fits for bars, lenses and rings (top panel); unsharp mask and
data table in sky-plane (middle panel) and fits for spiral arms (bottom panel).
3. Link to the next set of 100 galaxies at the bottom of the page.

Galaxy # 701
NGC4094
(R')SB(s)cd
T = 7

Galaxy # 702

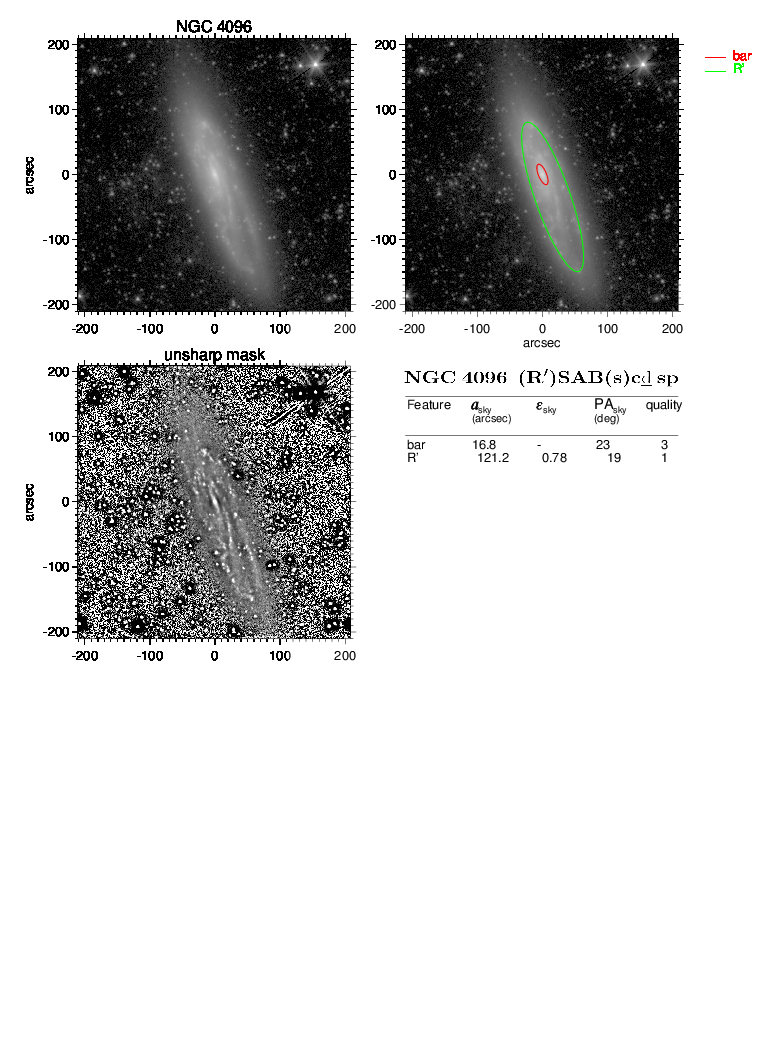

NGC4096
(R')SAB(s)c_d,sp
T = 1

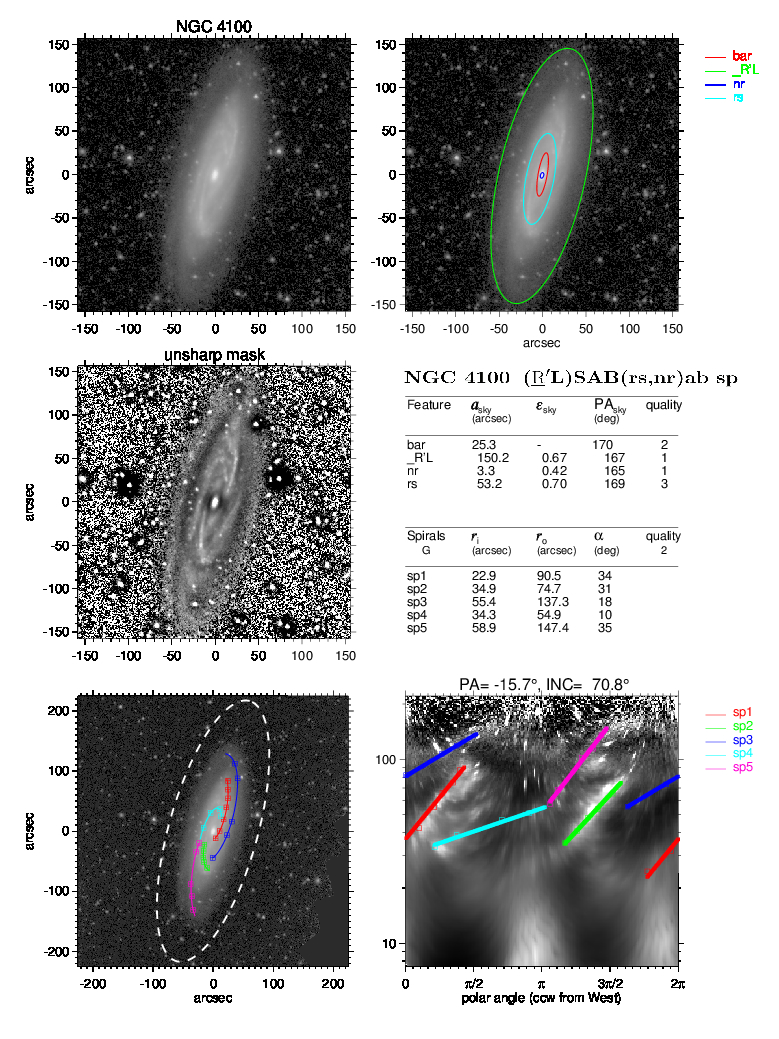

Galaxy # 703
NGC4100
(_R'L)SAB(rs,nr)ab,sp
T = 5

Galaxy # 704
NGC4102
(R')SABa(l)ab
T = 7

Galaxy # 705
NGC4106
SAB(s,nl)a
T = 1

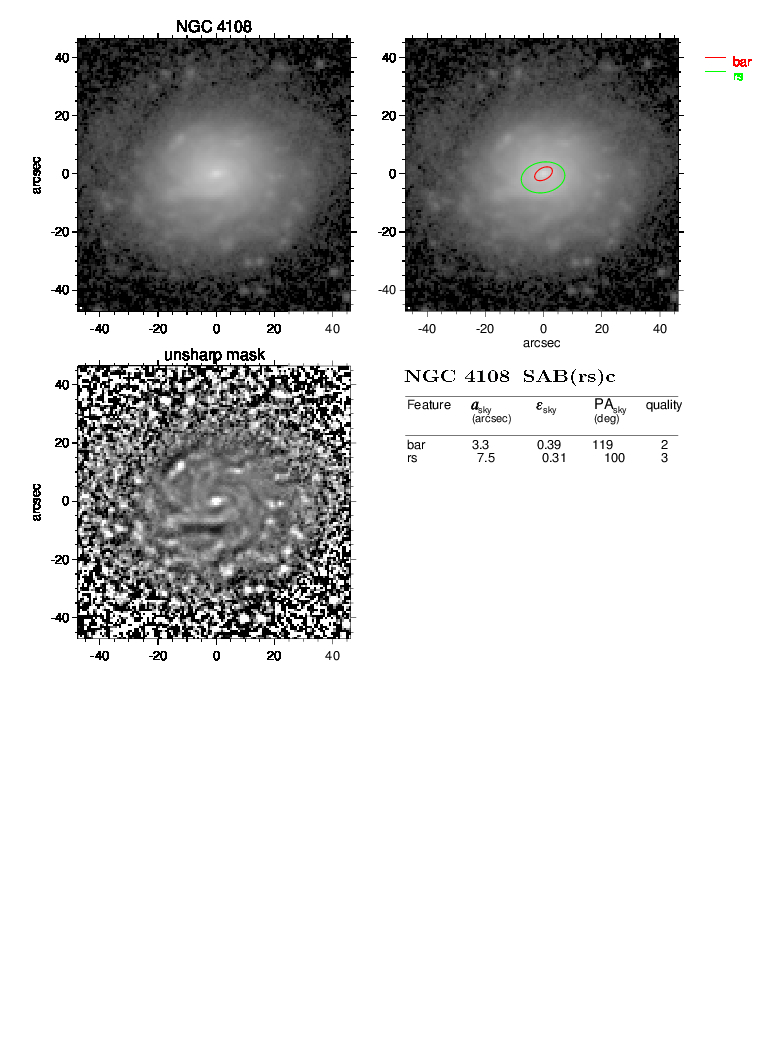

Galaxy # 706
NGC4108
SAB(rs)c
T = 10

Galaxy # 707

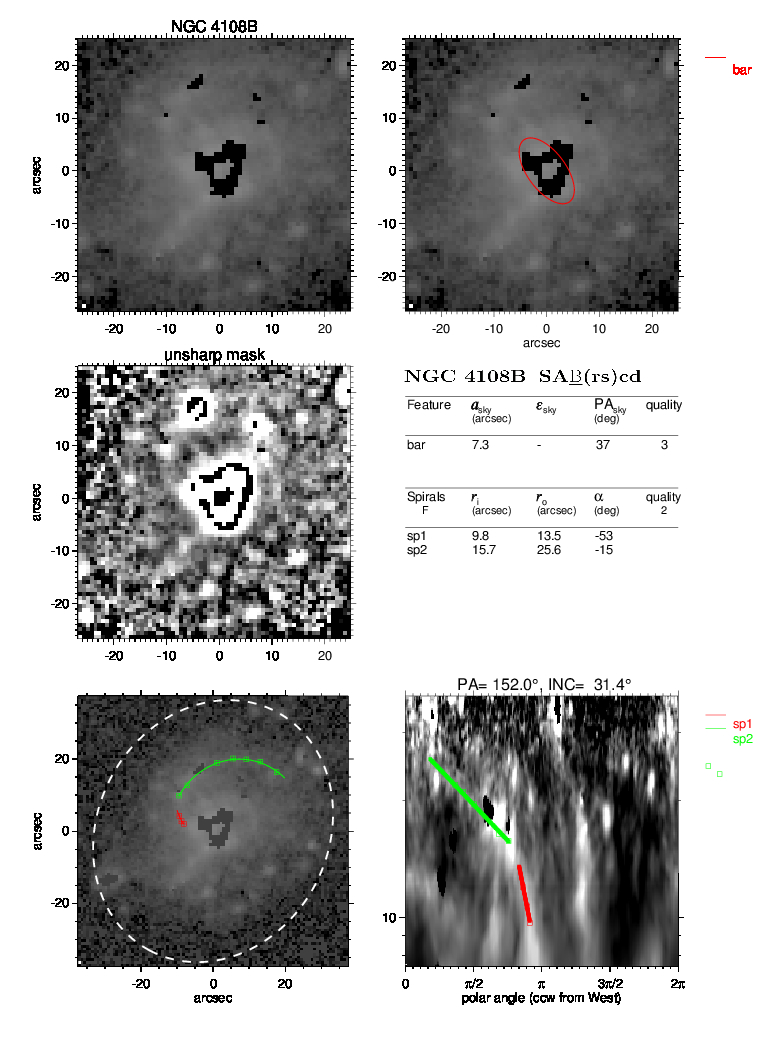

NGC4108B
SA_B(rs)cd
T = 4

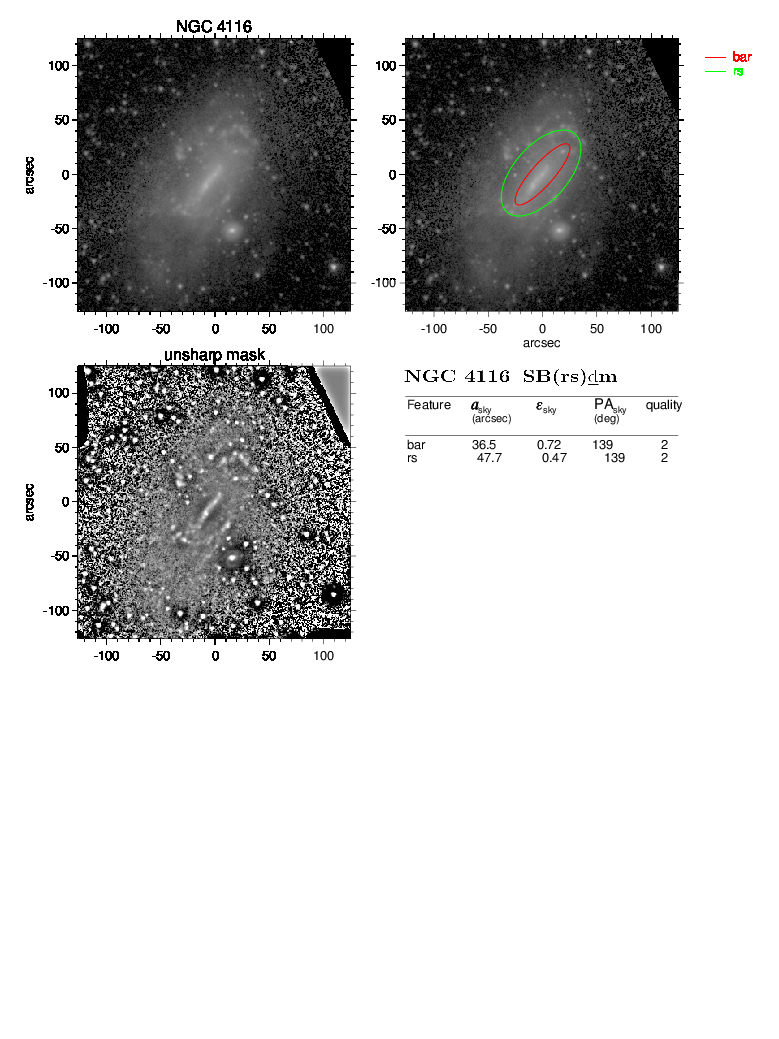

Galaxy # 708
NGC4116
SB(rs)_dm
T = -3

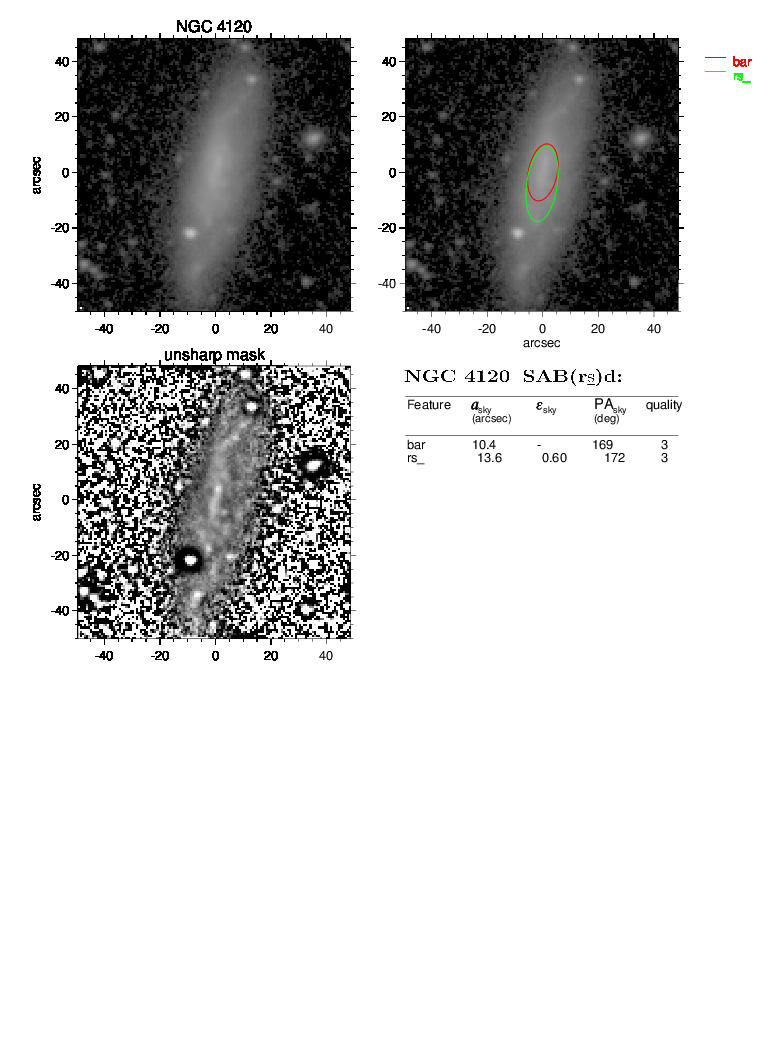

Galaxy # 709
NGC4120
SAB(rs_)d:
T = 3

Galaxy # 710
NGC4123
SBx(rs)a_b
T = 5

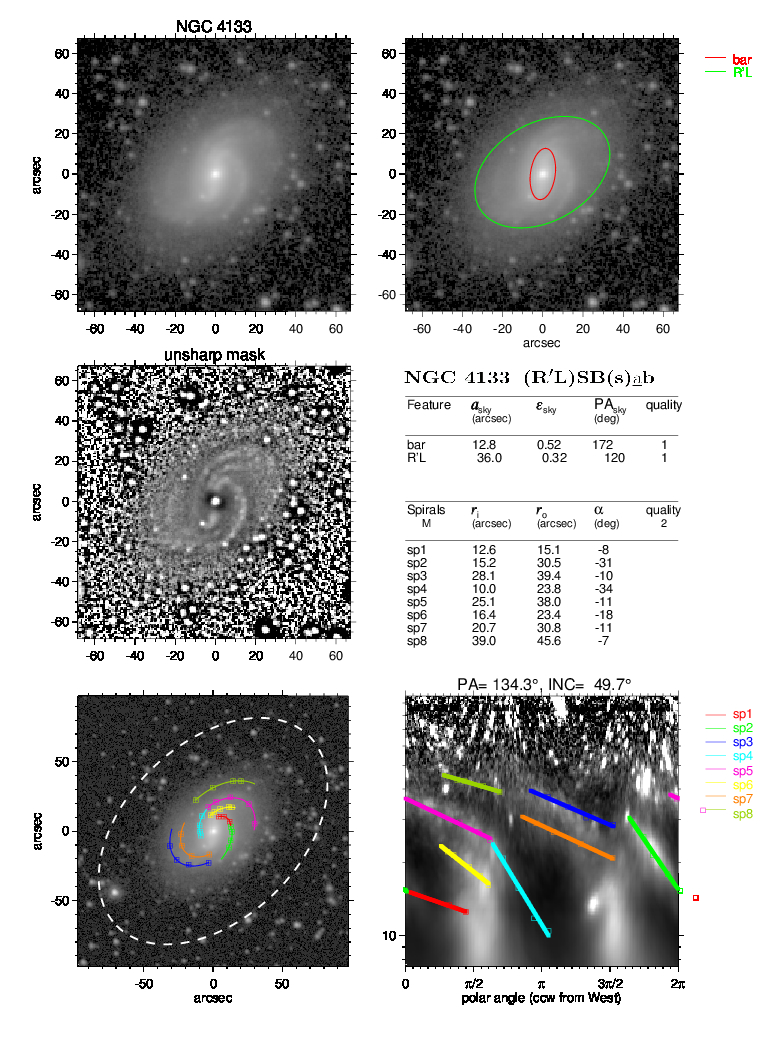

Galaxy # 711
NGC4133
(R'L)SB(s)_ab
T = 3

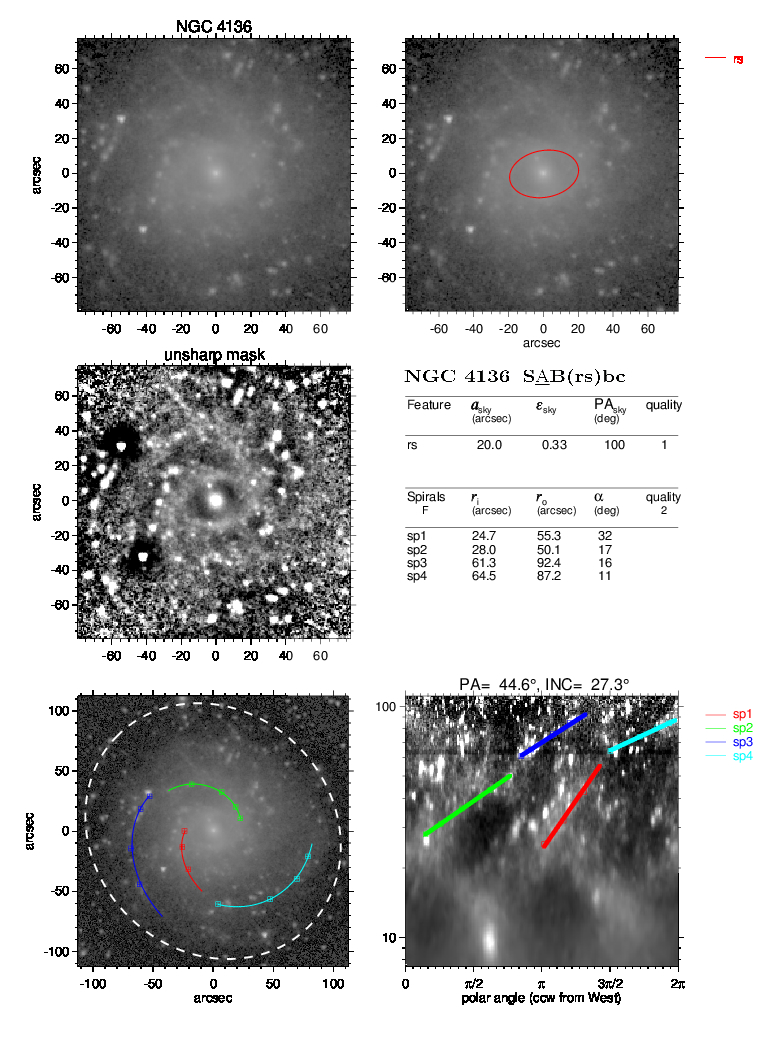

Galaxy # 712
NGC4136
S_AB(rs)bc
T = 6

Galaxy # 713
NGC4138
SA(r)0+
T = -1

Galaxy # 714
NGC4141
SB(s)_dm
T = 5

Galaxy # 715
NGC4142
SB(s)d_m
T = -1

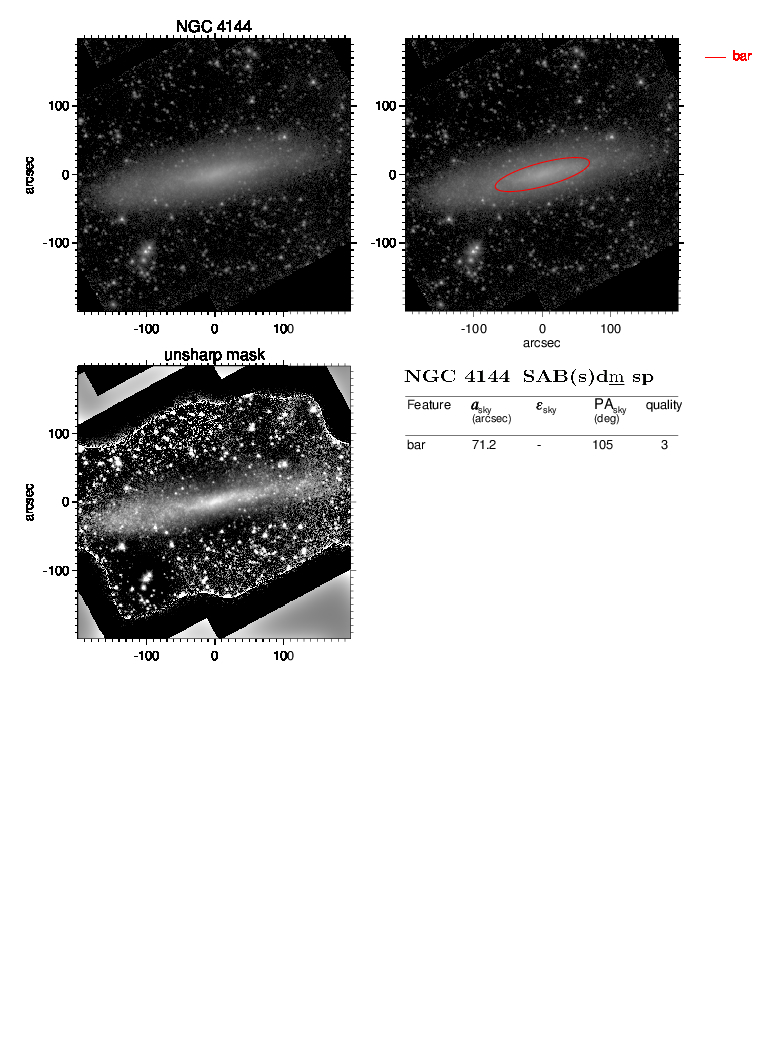

Galaxy # 716
NGC4144
SAB(s)d_m,sp
T = 2

Galaxy # 717
NGC4145
SAB(rs)d
T = 10

Galaxy # 718
NGC4151
SABa(l,nl)0/a
T = 7

Galaxy # 719
NGC4152
SAB(rs)c
T = 6

Galaxy # 720
NGC4158
(RL)SABa(r)0/_a
T = -1

Galaxy # 721
NGC4159
SB(s)m,sp
T = -3

Galaxy # 722

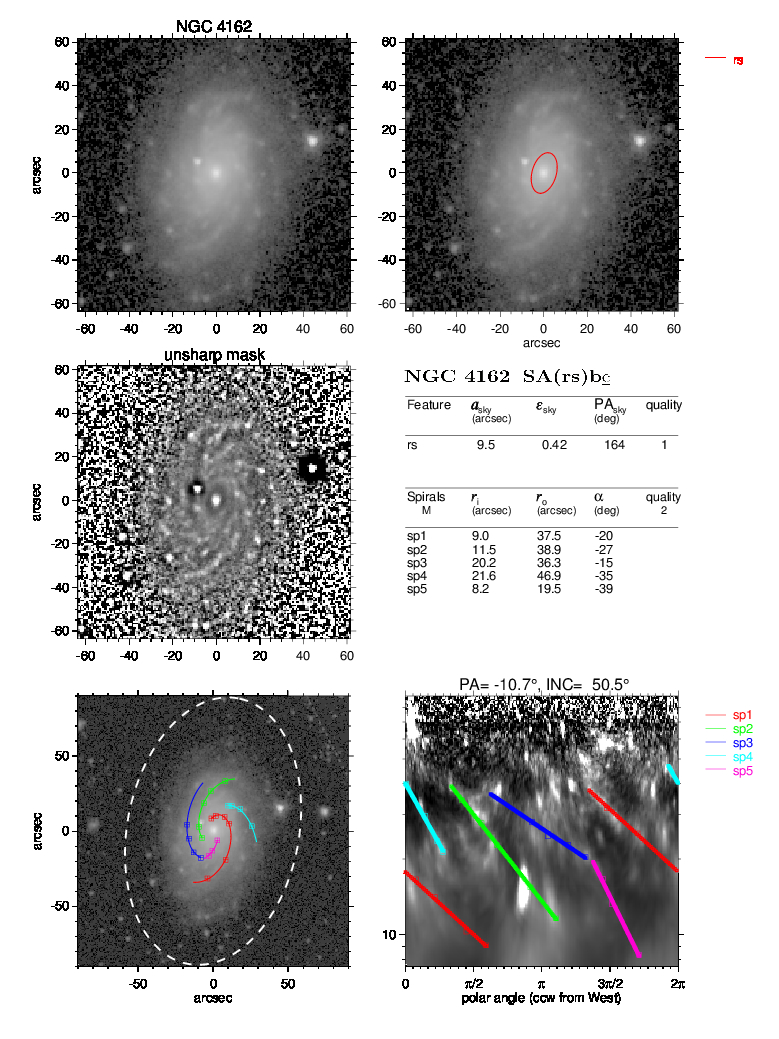

NGC4162
SA(rs)b_c
T = 5

Galaxy # 723
NGC4165
SA(s)a_b
T = 5

Galaxy # 724
NGC4178
(R'2)SB(s)d
T = 7

Galaxy # 725
NGC4180
SABa(s)a
T = -5

Galaxy # 726
NGC4189
SA_B(rs_)bc
T = 1

Galaxy # 727
NGC4192
(R'1)SABx(rs,nd)_ab
T = 3

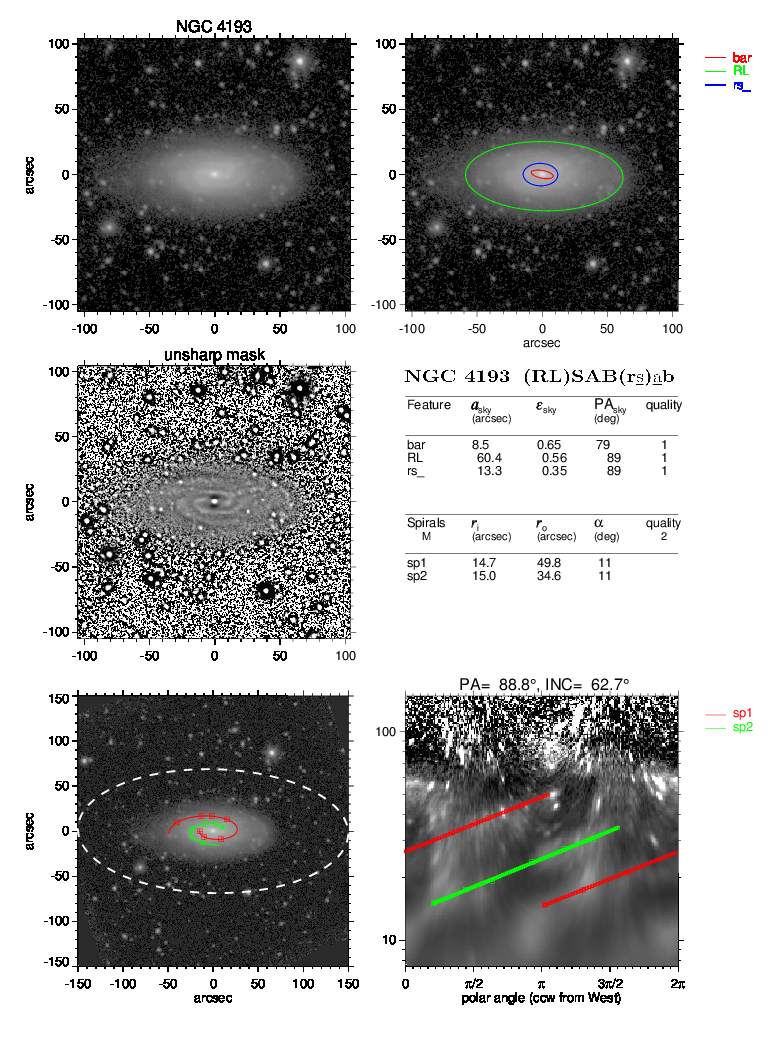

Galaxy # 728
NGC4193
(RL)SAB(rs_)_ab
T = -1

Galaxy # 729
NGC4197
SB(s)_dm,sp
T = 7

Galaxy # 730
NGC4203
(L)S_AB0-
T = 5

Galaxy # 731
NGC4204
SB(s)dm
T = 2

Galaxy # 732
NGC4210
SB(rs)_bc
T = -1

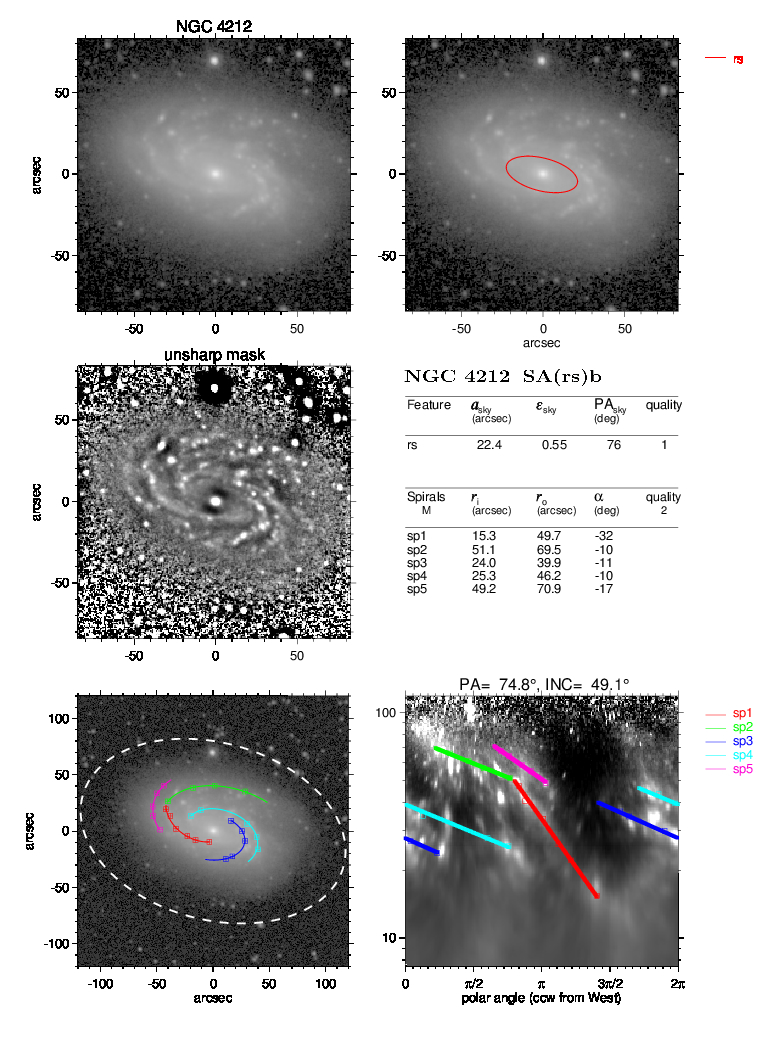

Galaxy # 733
NGC4212
SA(rs)b
T = 6

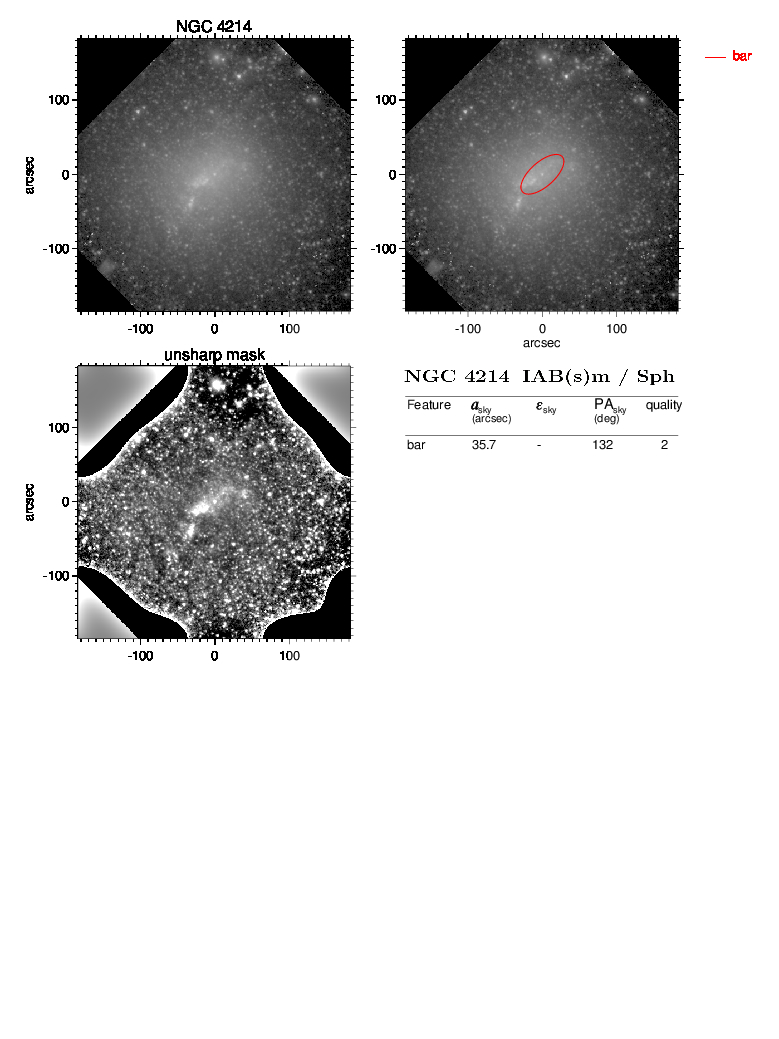

Galaxy # 734
NGC4214
IAB(s)m/Sph
T = 4

Galaxy # 735
NGC4216
(R'2)SABax(r,nd)_ab,sp/E7-8
T = -3

Galaxy # 736
NGC4220
(L)SAB(r)0+
T = 8

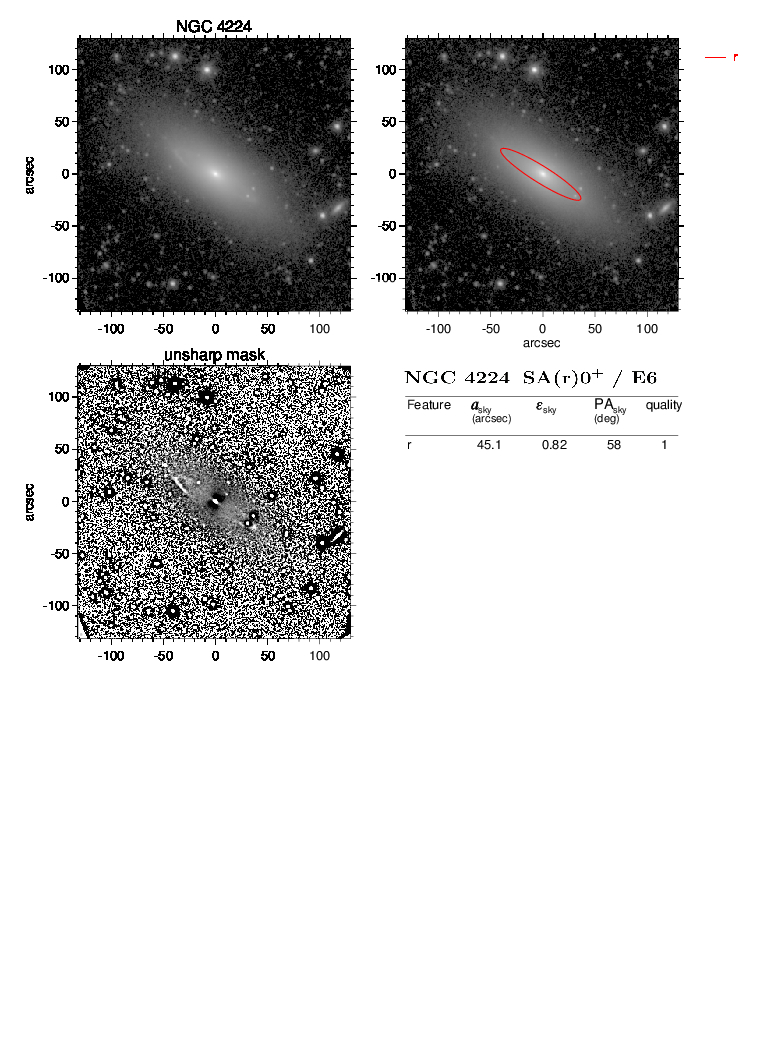

Galaxy # 737
NGC4224
SA(r)0+/E6
T = 6

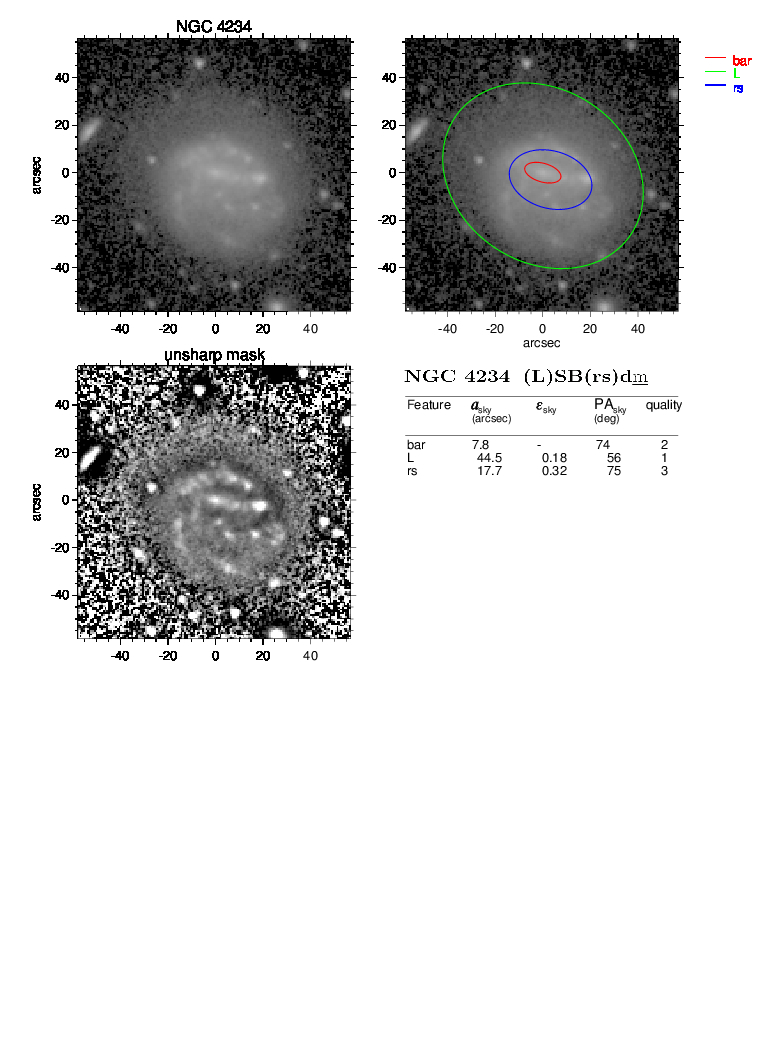

Galaxy # 738
NGC4234
(L)SB(rs)d_m
T = 2

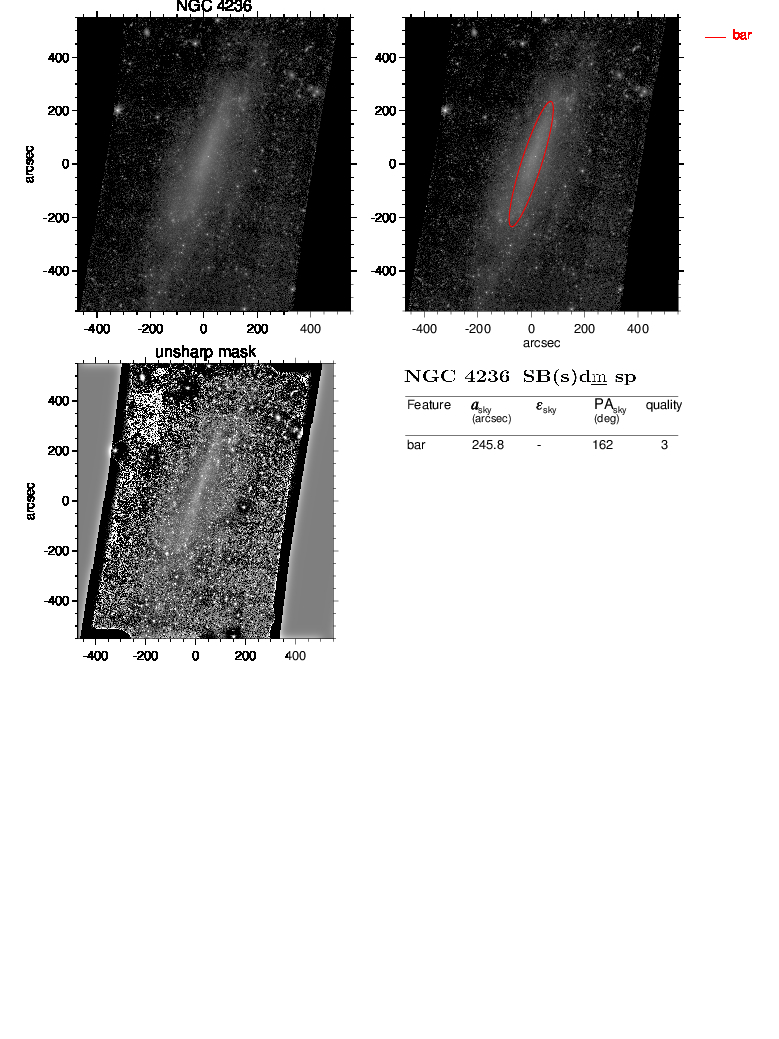

Galaxy # 739
NGC4236
SB(s)d_m,sp
T = 5

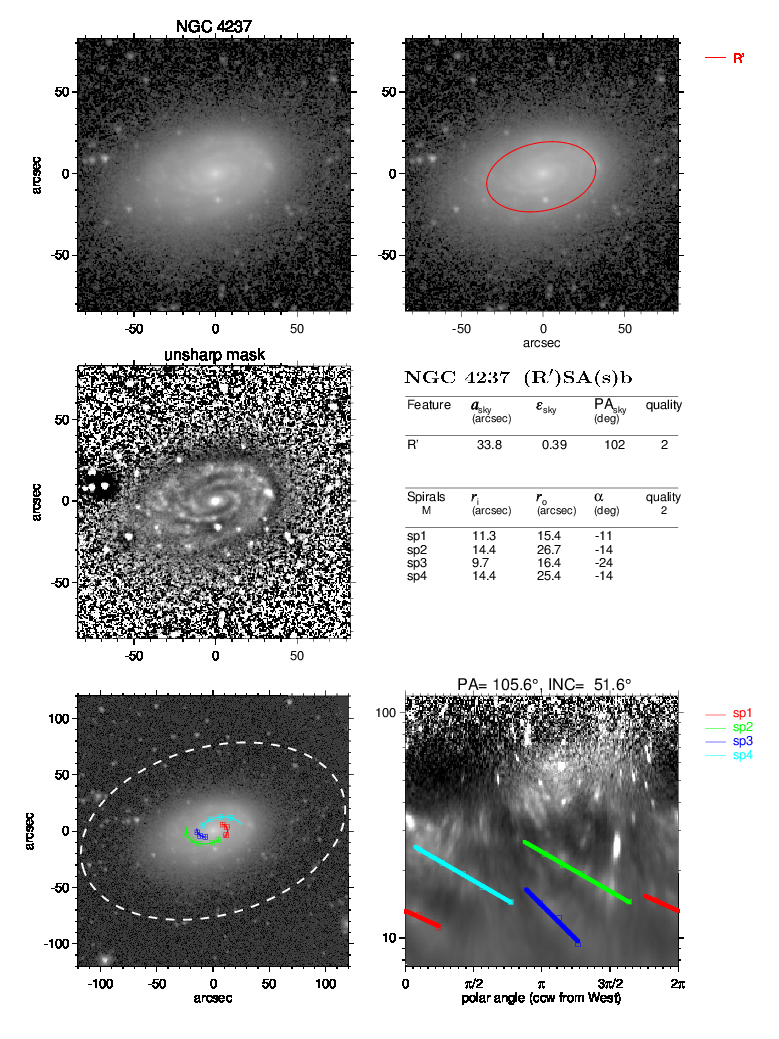

Galaxy # 740
NGC4237
(R')SA(s)b
T = -3

Galaxy # 741
NGC4238
SAB(s)c,sp
T = 3

Galaxy # 742
NGC4242
(L)IAB(s)m/Sph
T = 3

Galaxy # 743
NGC4245
(RL)SB(r,bl,n_rl)0+
T = 6

Galaxy # 744
NGC4250
(R1)SAB(rl,nl!)0+
T = 5

Galaxy # 745
NGC4254
SA(s)c,pec
T = 7

Galaxy # 746
NGC4258
(R'L)SAB(rs,nb)_ab
T = 3

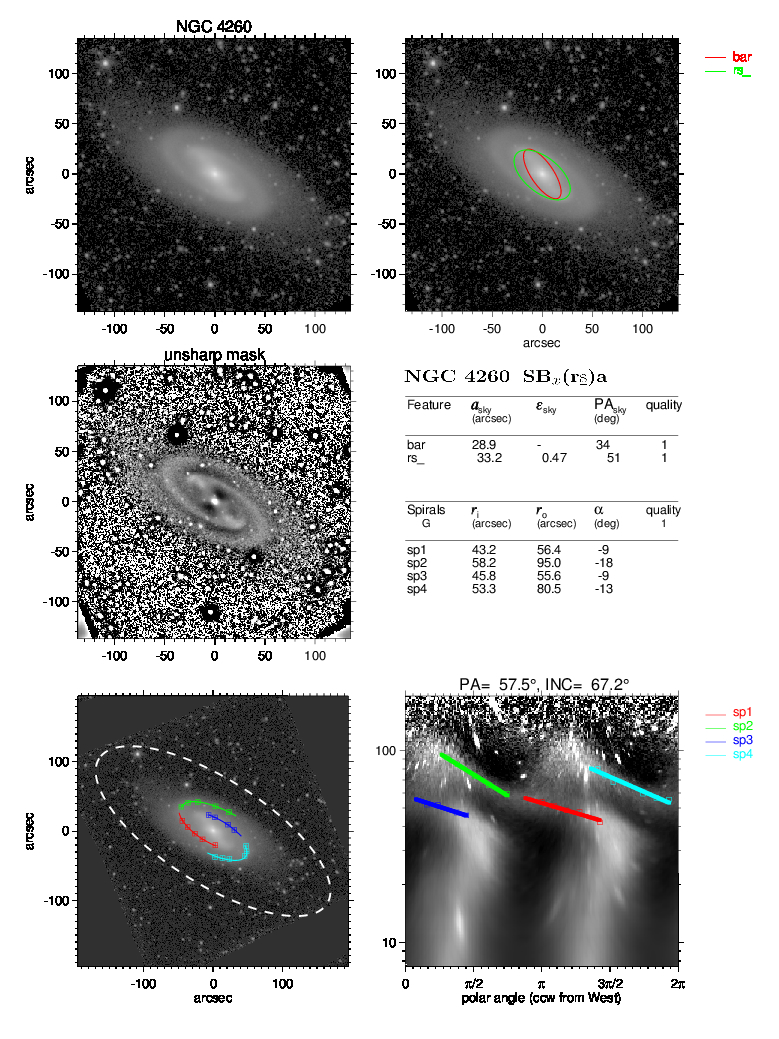

Galaxy # 747
NGC4260
SBx(rs_)a
T = 2

Galaxy # 748
NGC4262
(L)SBa(l,bl)0-o
T = -1

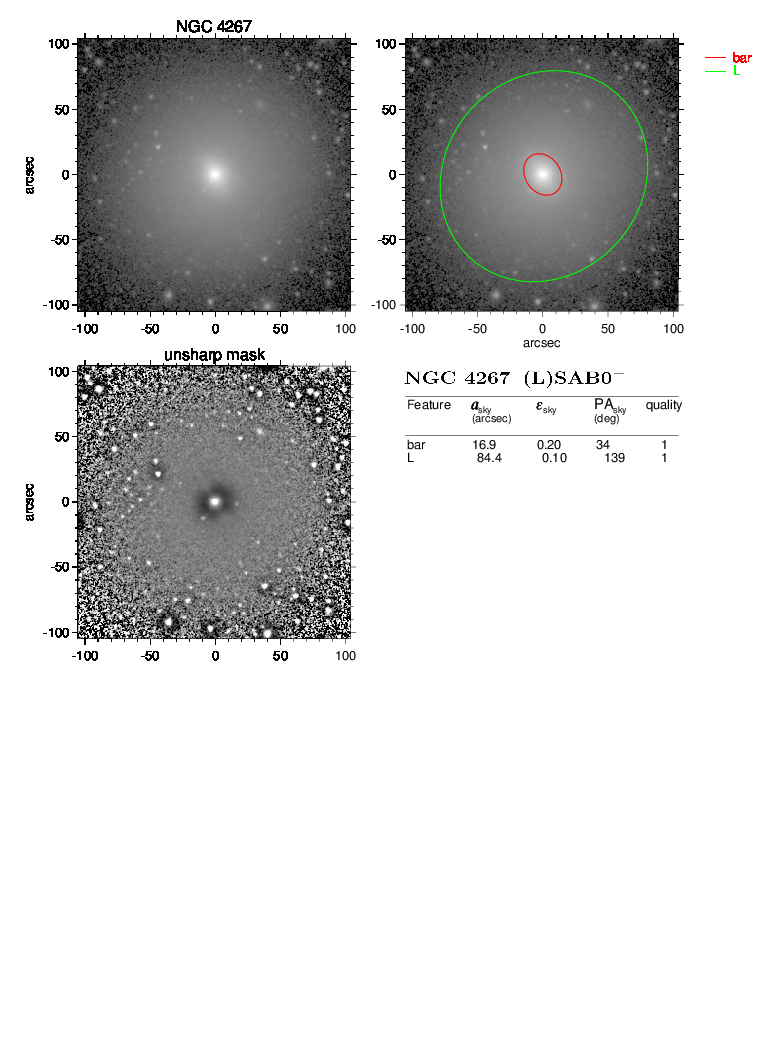

Galaxy # 749
NGC4267
(L)SAB0-
T = 9

Galaxy # 750
NGC4268
S_AB(_rs)0+:,sp
T = 10

Galaxy # 751
NGC4273
SABa(s)c,pec
T = -3

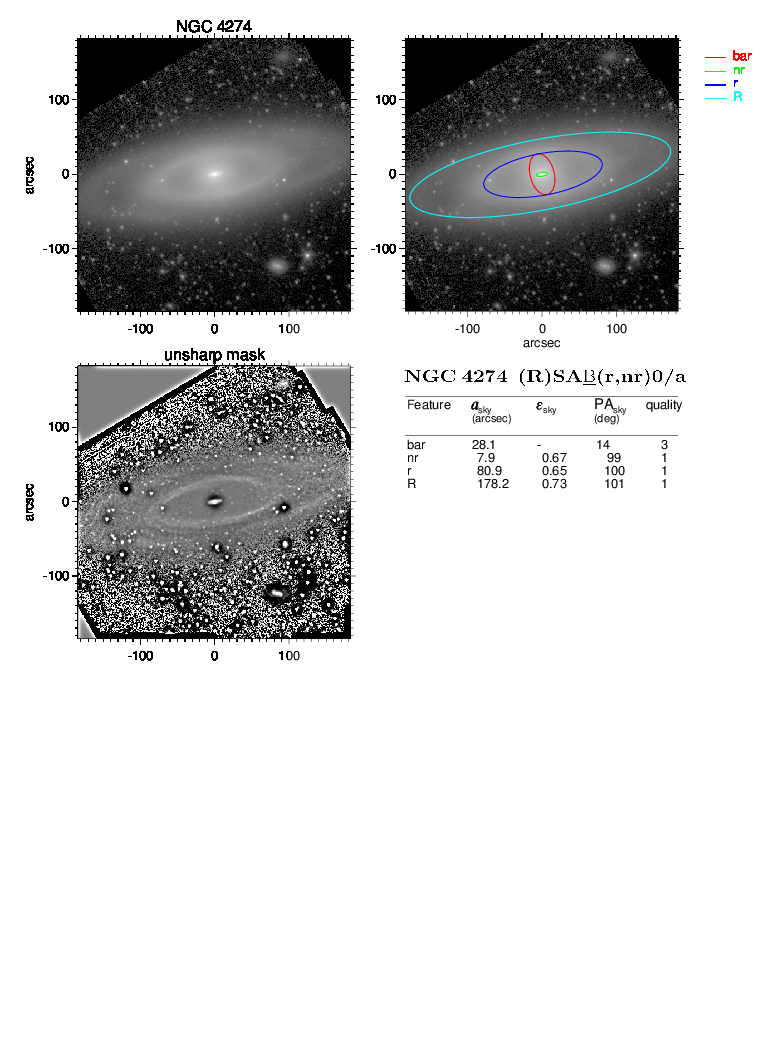

Galaxy # 752
NGC4274
(R)SA_B(r,nr)0/a
T = 6

Galaxy # 753
NGC4276
SB(s)dm
T = 6

Galaxy # 754
NGC4286
d(RL_)SA(l)0o,N/Sph
T = 9

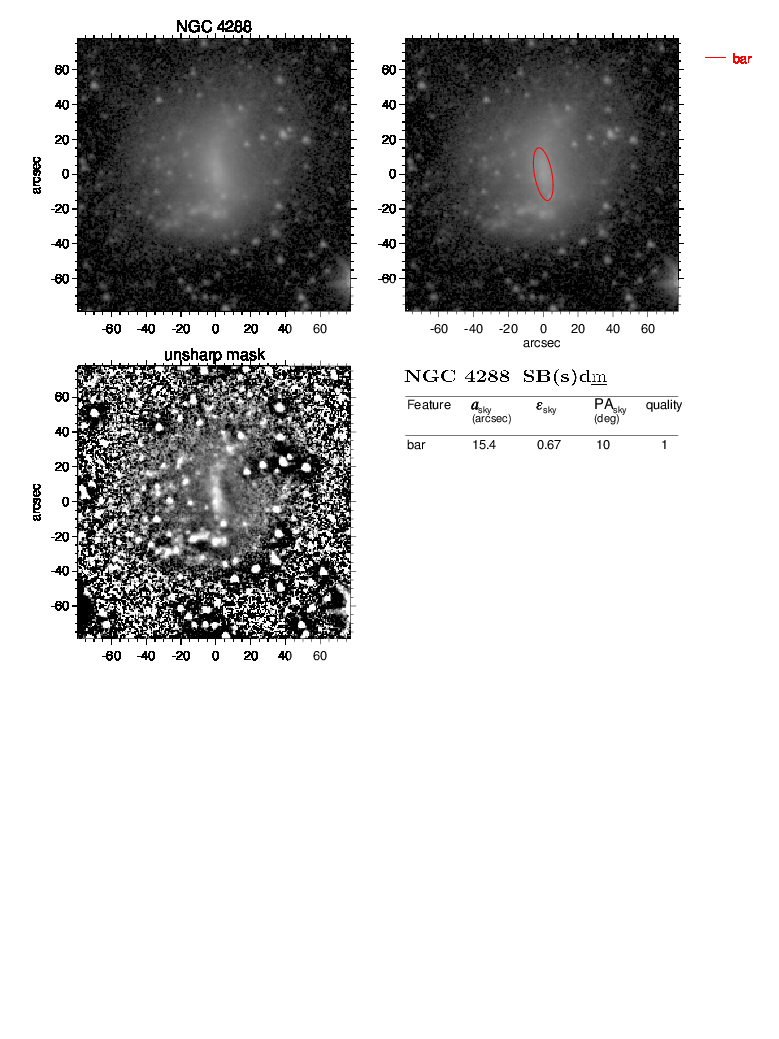

Galaxy # 755
NGC4288
SB(s)d_m
T = 0

Galaxy # 756
NGC4293
(_RL)SBx(rs_)0/a
T = 1

Galaxy # 757
NGC4294
SB(s)d
T = 0

Galaxy # 758

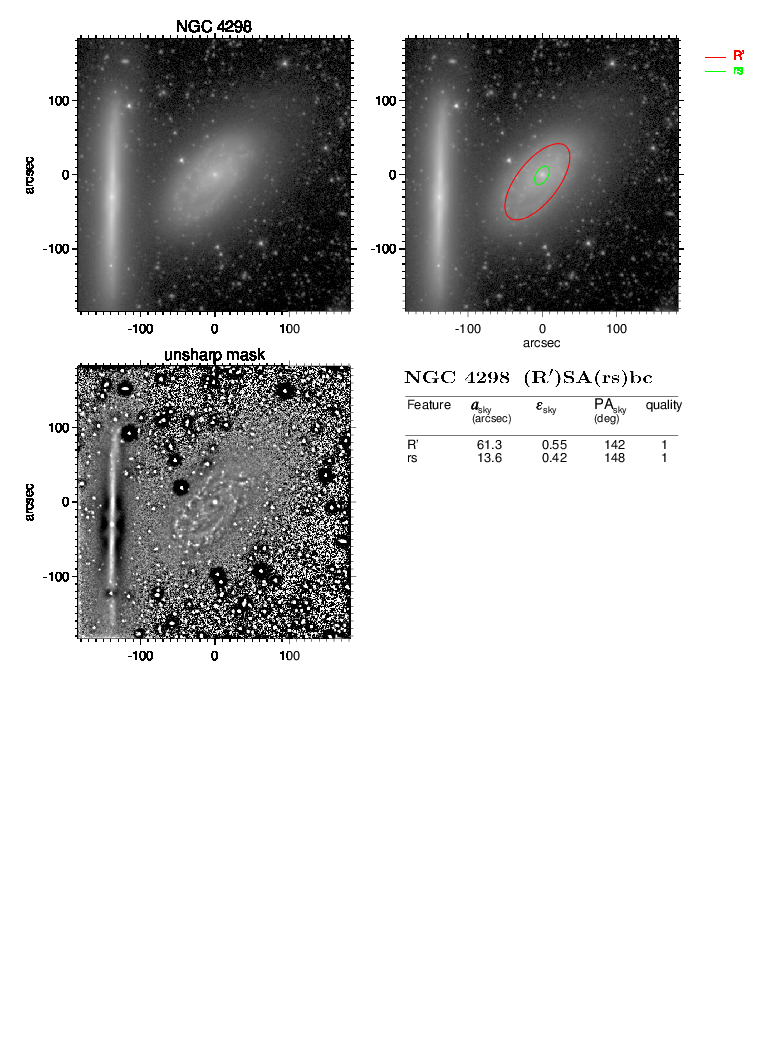

NGC4298
(R')SA(rs)bc
T = 8

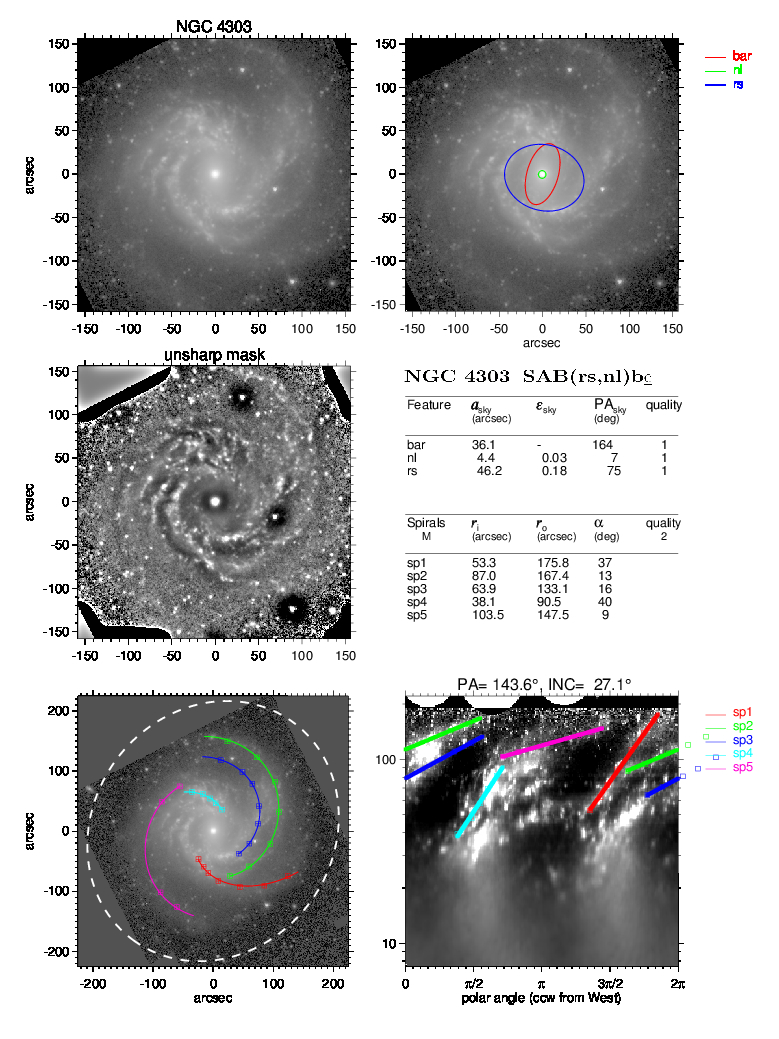

Galaxy # 759
NGC4303
SAB(rs,nl)b_c
T = 0

Galaxy # 760
NGC4309
SAB(_rl)0o+
T = -3

Galaxy # 761
NGC4310
SA(rs)a
T = 9

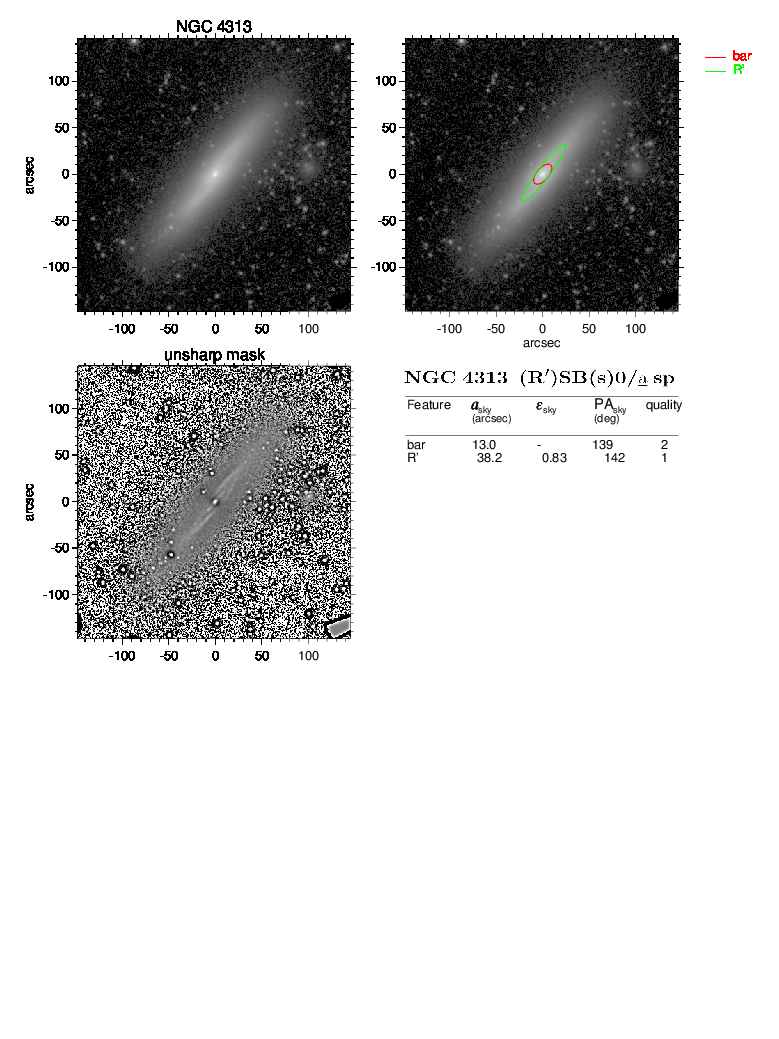

Galaxy # 762
NGC4313
(R')SB(s)0/_a,sp
T = 4

Galaxy # 763
NGC4314
(R'1)SB(rl_,bl,nr)a
T = -2

Galaxy # 764
NGC4319
(R')SAB(_rs)a,pec
T = -1

Galaxy # 765
NGC4321
SAB(rs,nr,nb)bc
T = 5

Galaxy # 766
NGC4324
(L)SA(r)0+
T = 7

Galaxy # 767
NGC4330
SA_B(s)d,sp
T = 3

Galaxy # 768
NGC4331
SB(s)m,sp
T = 10

Galaxy # 769

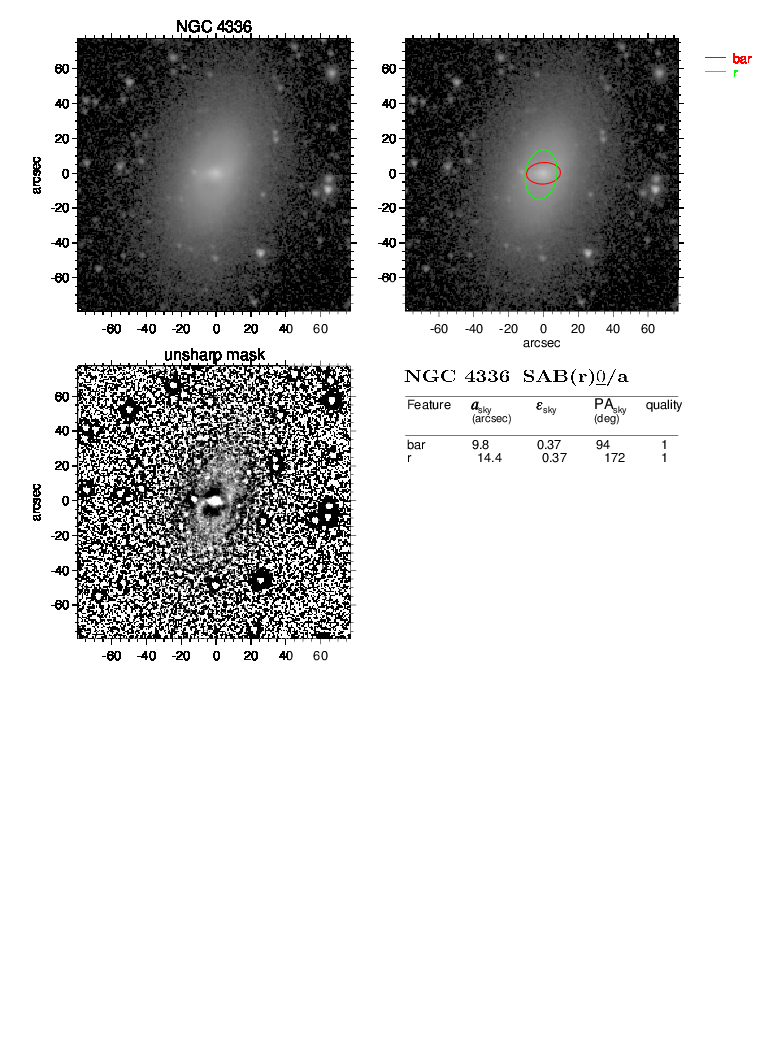

NGC4336
SAB(r)_0/a
T = 1

Galaxy # 770
NGC4343
(R')SAB(r)0/_a,sp/E2
T = 1

Galaxy # 771
NGC4344
SA(r)0+[c]/Sph
T = 10

Galaxy # 772

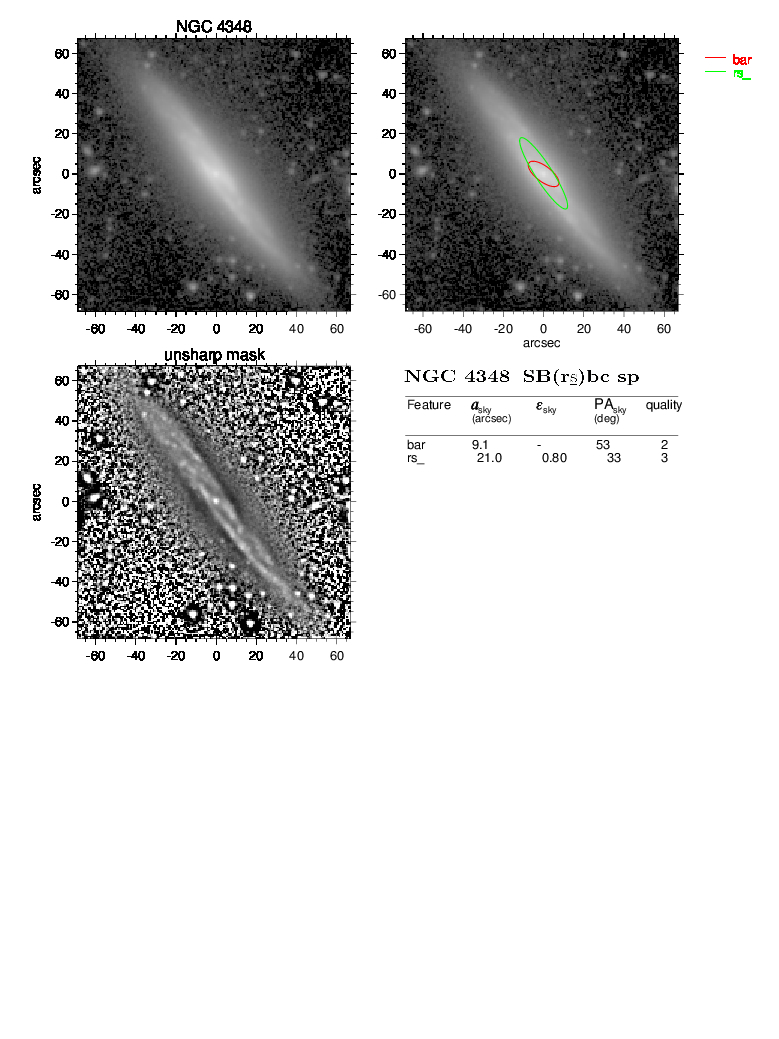

NGC4348
SB(rs_)bc,sp
T = 5

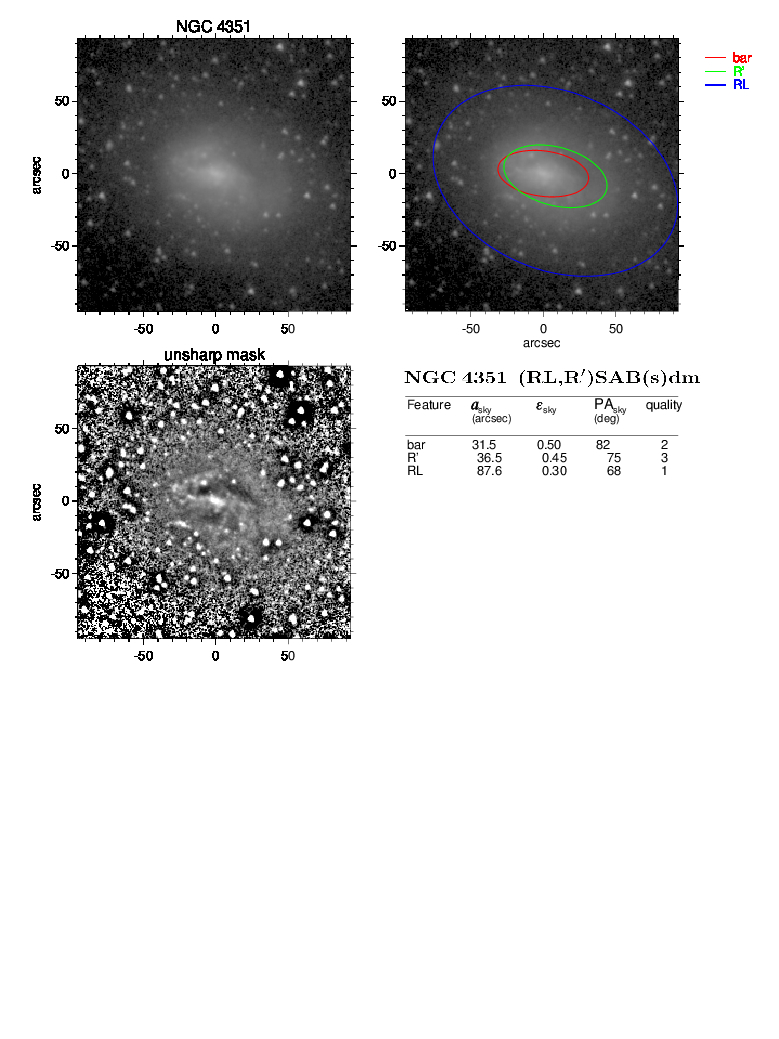

Galaxy # 773
NGC4351
(RL,R')SAB(s)dm
T = 0

Galaxy # 774
NGC4355
(RL)S_AB(l)_0/a
T = 9

Galaxy # 775
NGC4359
SB(s)m:,sp_bar
T = 1

Galaxy # 776
NGC4369
(R)SB(rs_)0/a[m]:,pec
T = 7

Galaxy # 777
NGC4371
(L)SBa(r,bl,nr)0o+
T = 99

Galaxy # 778
NGC4378
(R')SA(l)a
T = 8

Galaxy # 779
NGC4380
(R)SA(r,l)ab
T = 9

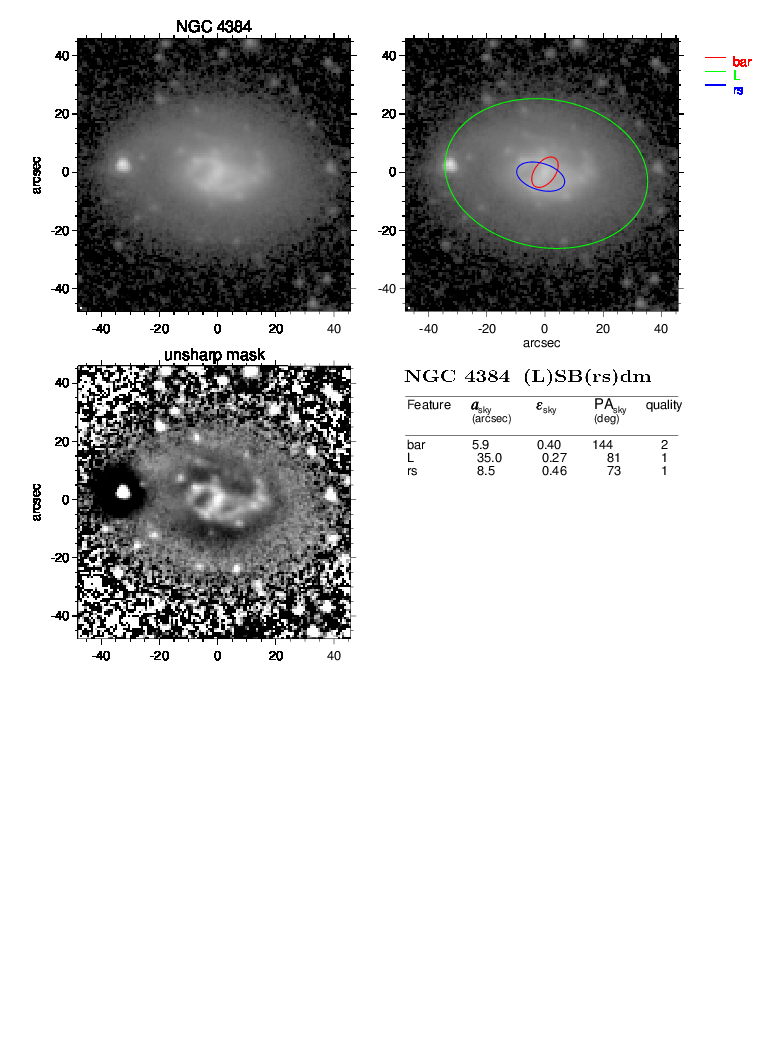

Galaxy # 780
NGC4384
(L)SB(rs)dm
T = 5

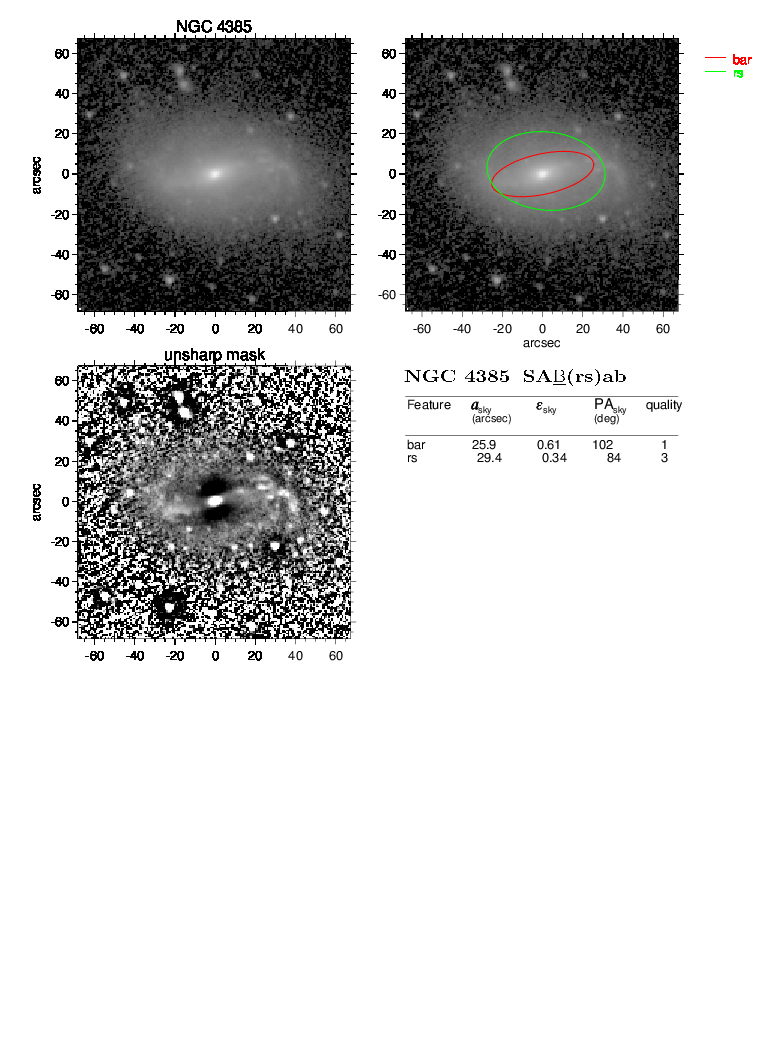

Galaxy # 781
NGC4385
SA_B(rs)ab
T = 99

Galaxy # 782

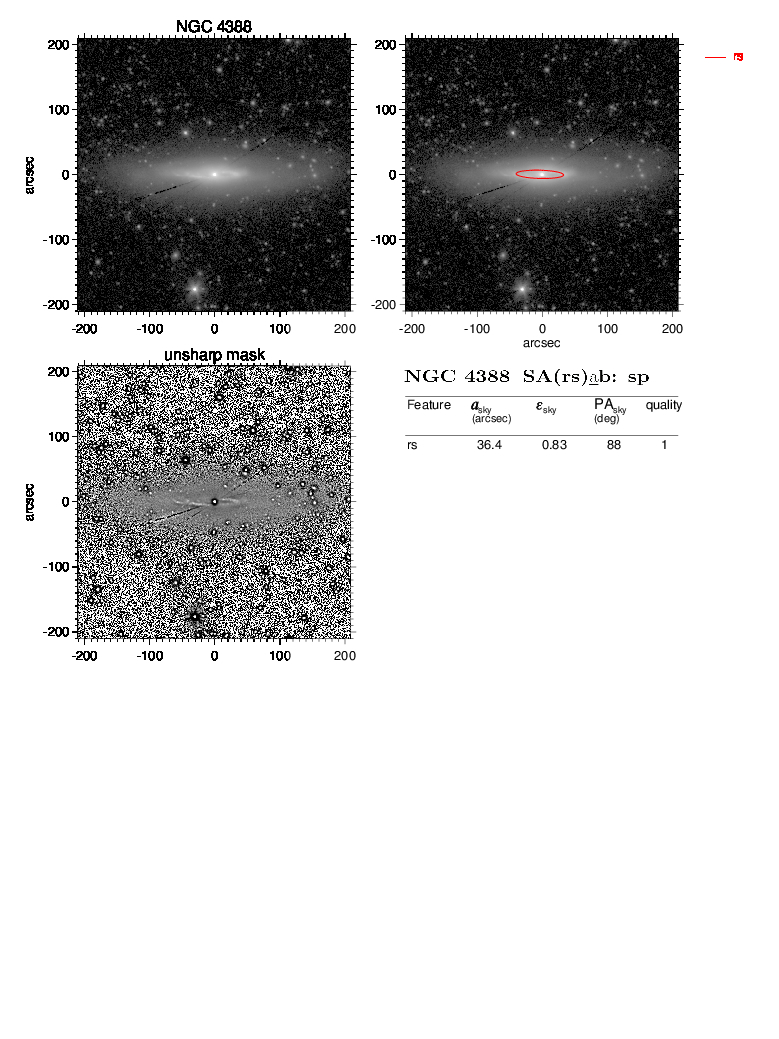

NGC4388
SA(rs)_ab:,sp
T = 10

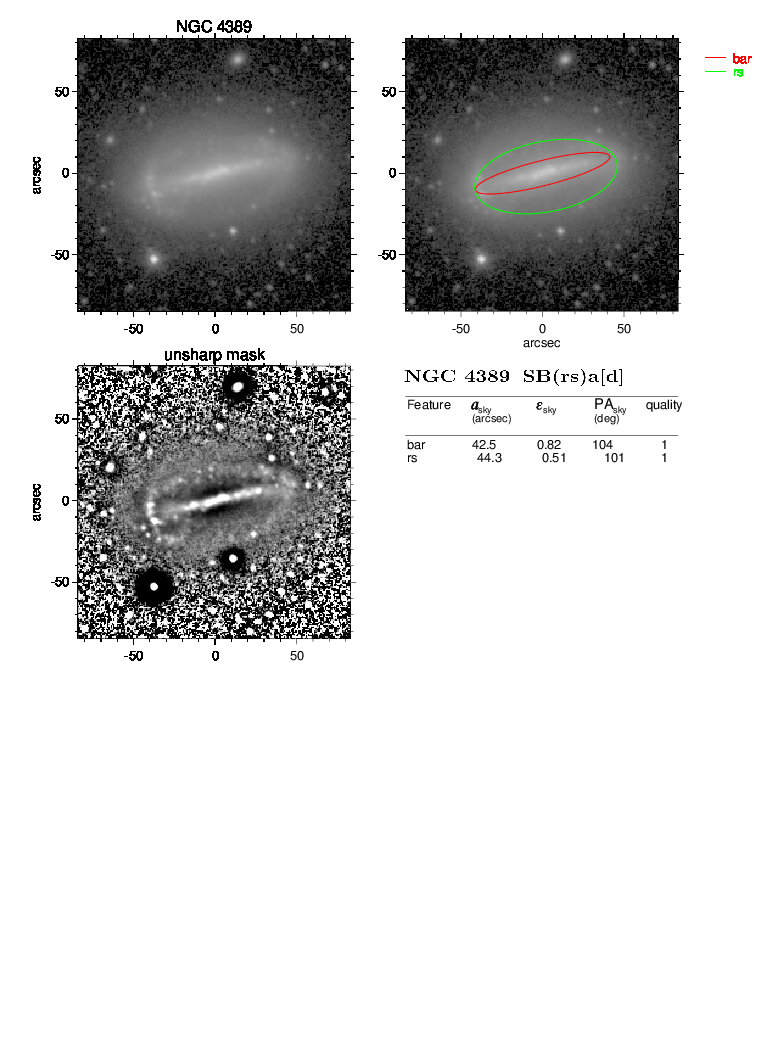

Galaxy # 783
NGC4389
SB(rs)a[d]
T = 1

Galaxy # 784

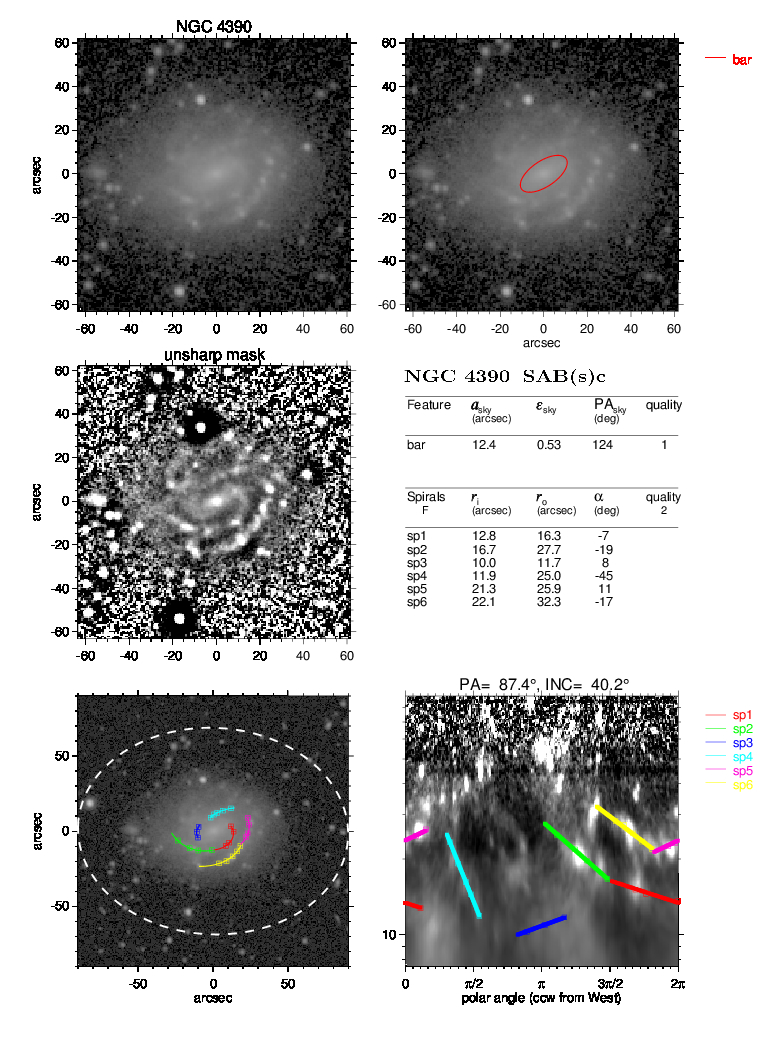

NGC4390
SAB(s)c
T = 0

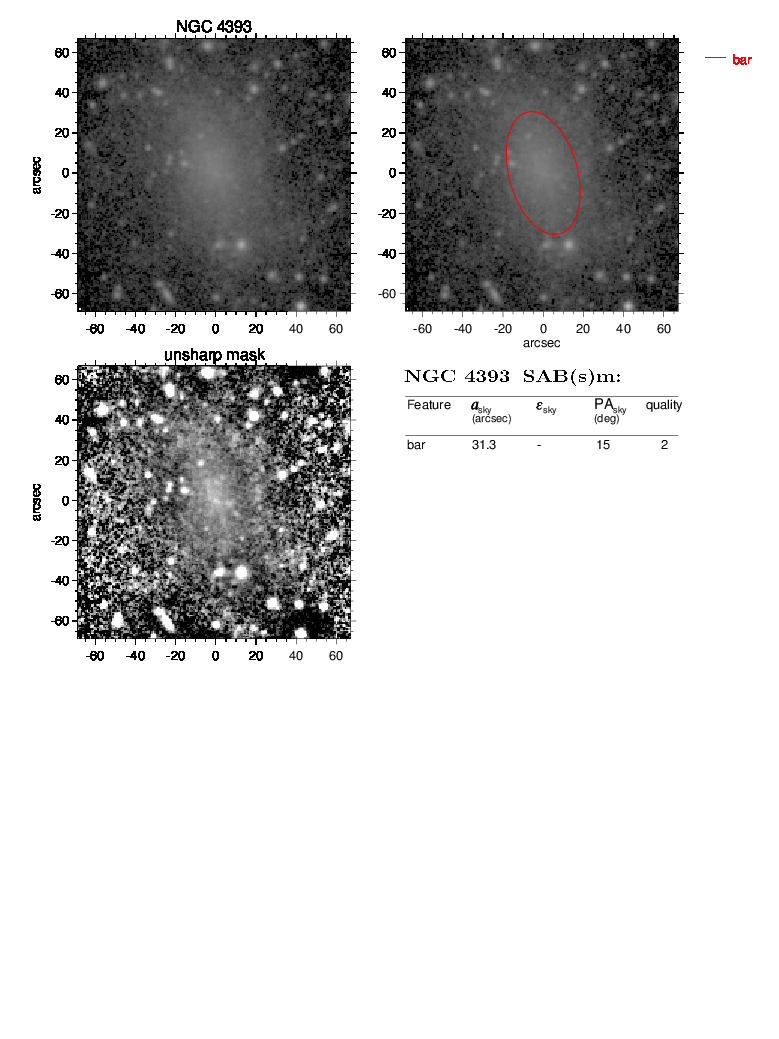

Galaxy # 785
NGC4393
SAB(s)m:
T = 9

Galaxy # 786
NGC4394
(_RL)SB(rs,bl,nl)0/a
T = 8

Galaxy # 787
NGC4395
SAB(rs_)dm
T = 2

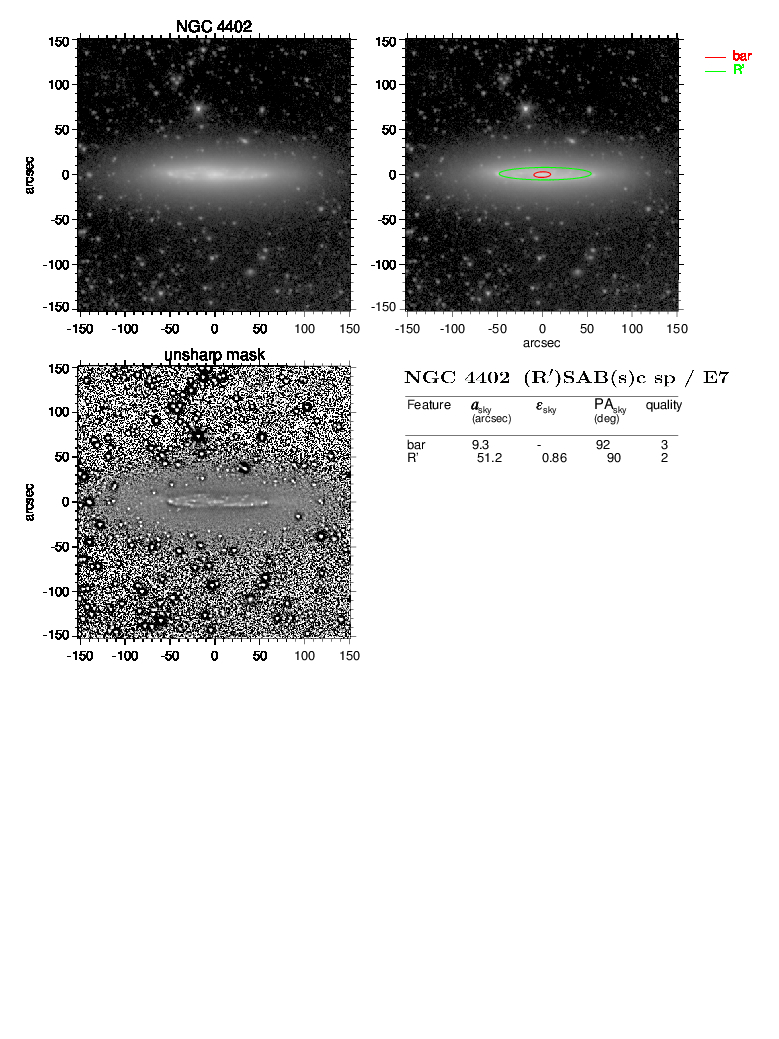

Galaxy # 788
NGC4402
(R')SAB(s)c,sp/E7
T = 1

Galaxy # 789
NGC4405
(R)SAB(_rs)0/a
T = -1

Galaxy # 790
NGC4411A
SB(rs)c_d
T = 3

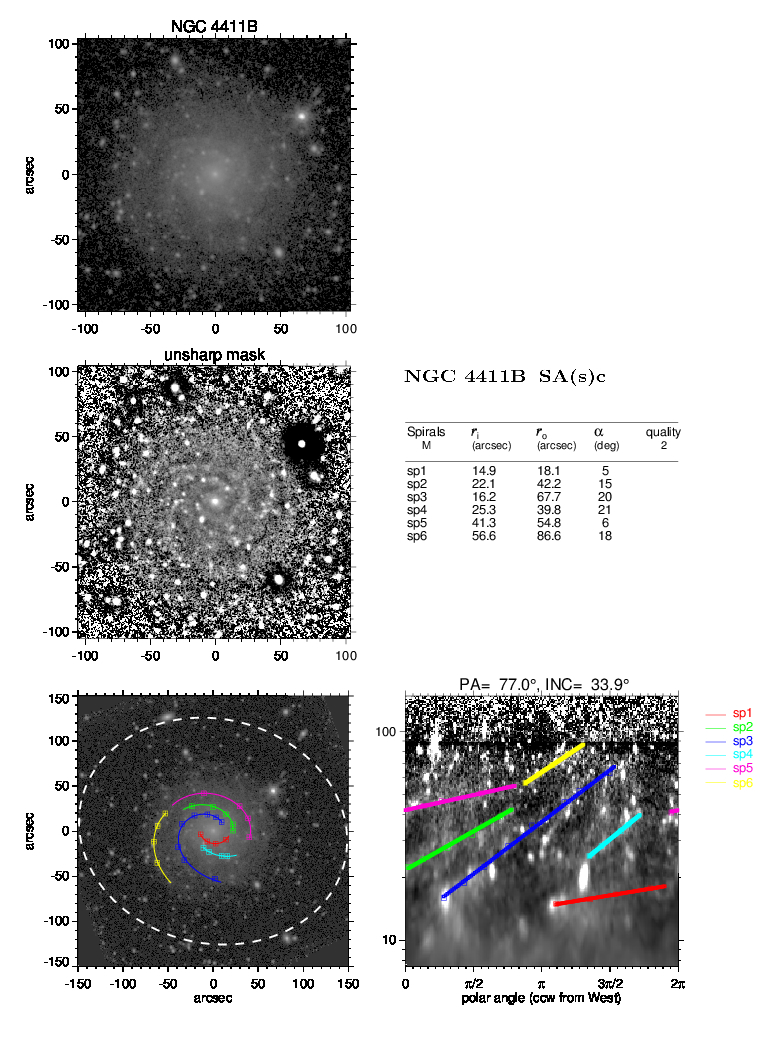

Galaxy # 791
NGC4411B
SA(s)c
T = 10

Galaxy # 792
NGC4412
SA_B(rs)_bc
T = -3

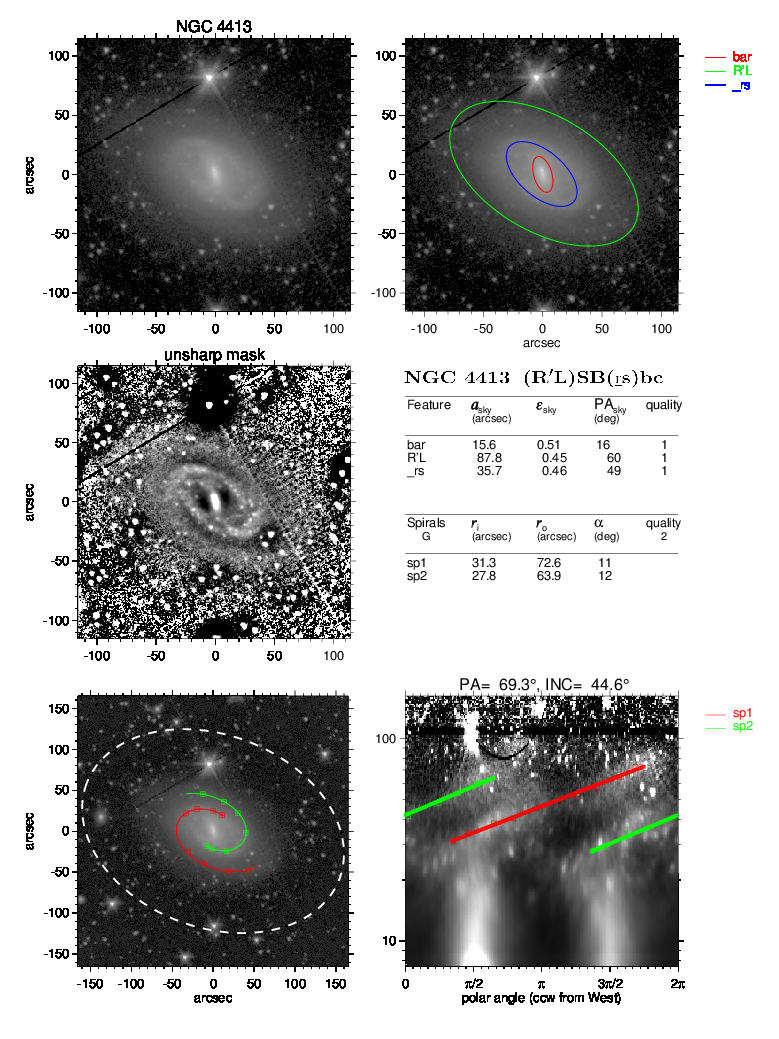

Galaxy # 793
NGC4413
(R'L)SB(_rs)bc
T = 10

Galaxy # 794
NGC4414
SA(rs_)b_c/E3
T = 3

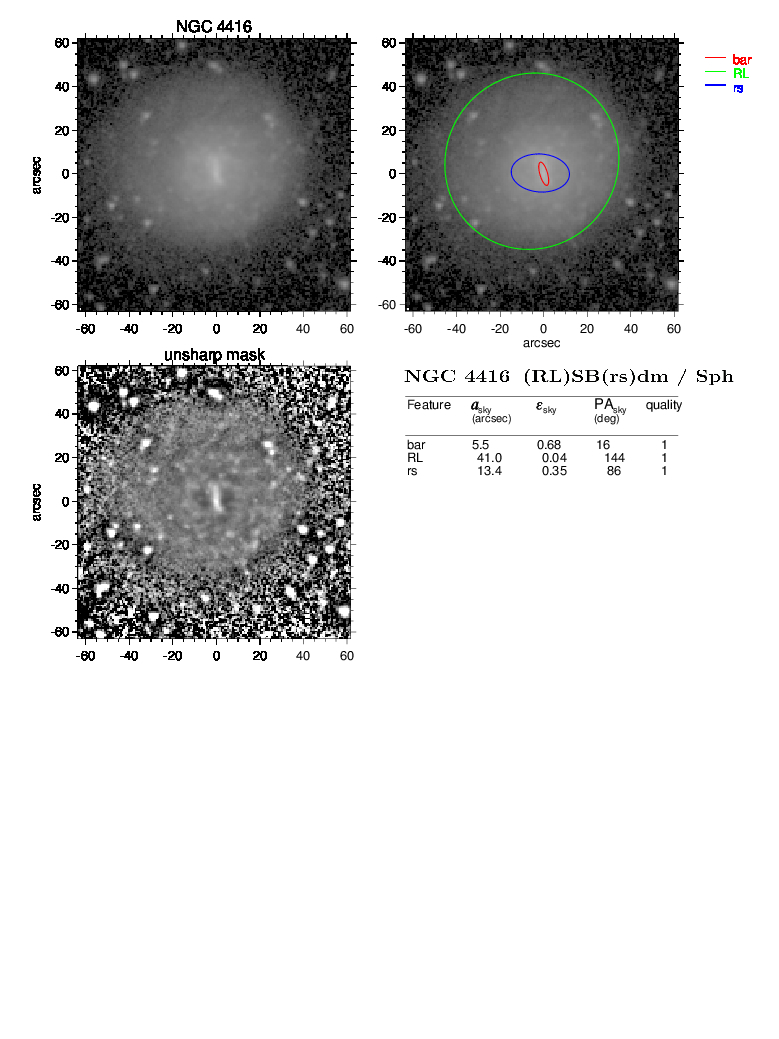

Galaxy # 795
NGC4416
(RL)SB(rs)dm/Sph
T = 2

Galaxy # 796
NGC4419
SA_Bx0/_a,sp/E6
T = 3

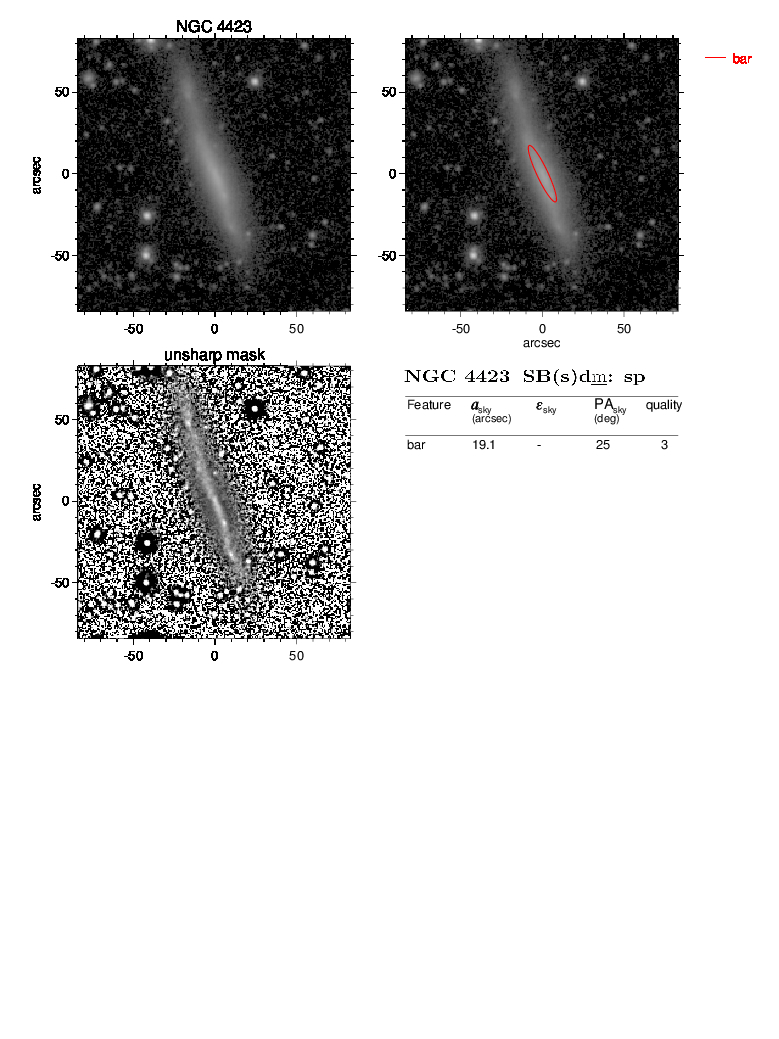

Galaxy # 797
NGC4423
SB(s)d_m:,sp
T = 9

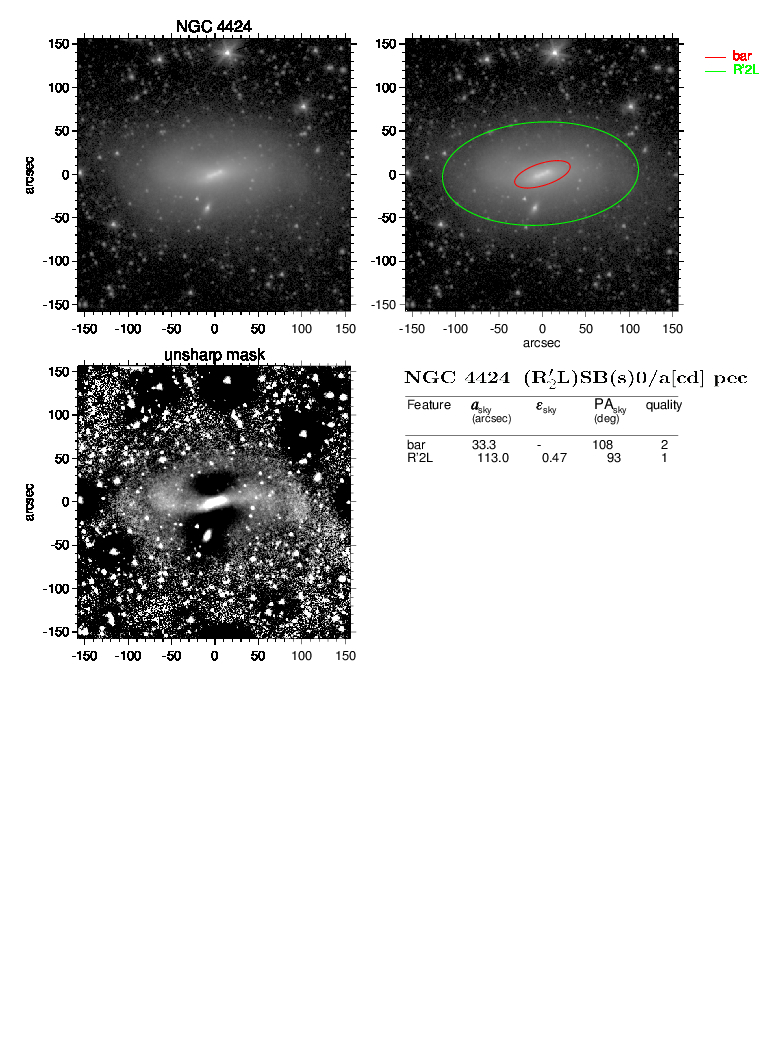

Galaxy # 798
NGC4424
(R'2L)SB(s)0/a[cd],pec
T = 8

Galaxy # 799
NGC4428
SA(s)bc
T = 5

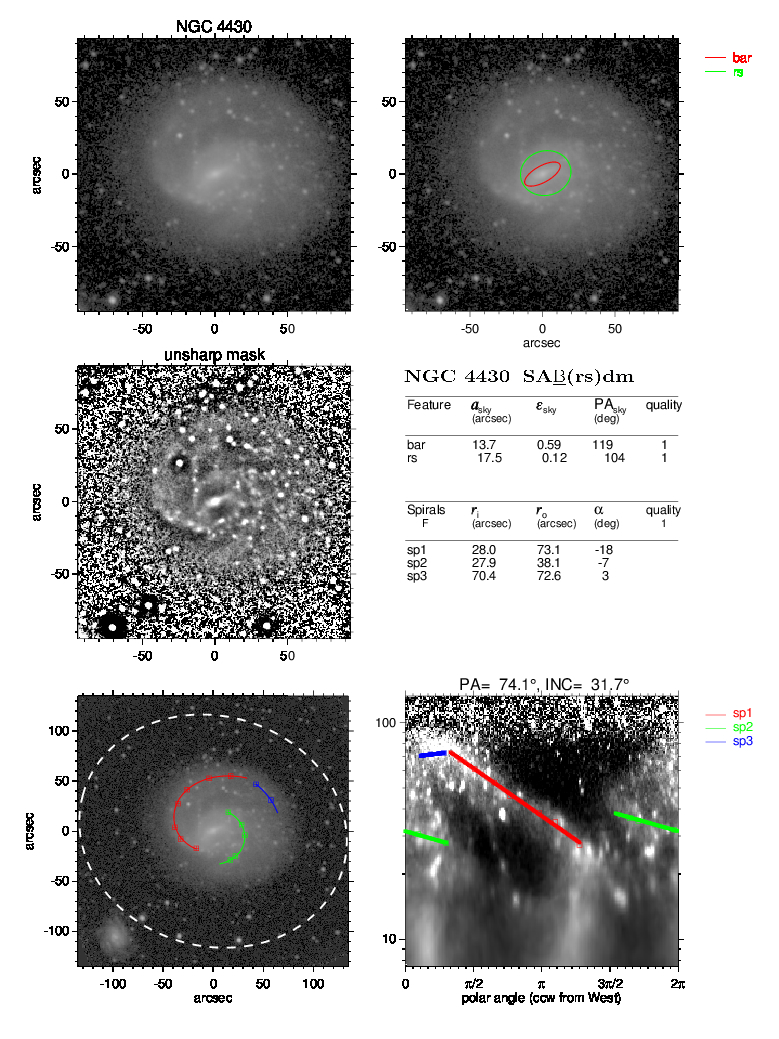

Galaxy # 800
NGC4430
SA_B(rs)dm
T = 11

next set of 100 galaxies
