Atlas of structures in the S4G

26.02.2016

This web page shows the morphological features (bars, lenses, rings and spiral structures) in the
Spitzer Survey of Stellar Structure in Galaxies (S4G) overplotted on the original image of the galaxy.
Detailed information on the measurements of the structures is found in Herrera-Endoqui et al. (2015).
The data tables are available at the Strasbourg astronomical Data Center.

The morphological classification and the Hubble type (T) are taken from Buta et al. (2015).
For information about the S4G please see Sheth et al. 2010.
The inclination and orientation parameters are taken from Salo et al. (2015).
Instructions:
1. Click on the image to see a bigger jpg version.
2. Note on images: shown are the fits for bars, lenses and rings (top panel); unsharp mask and
data table in sky-plane (middle panel) and fits for spiral arms (bottom panel).
3. Link to the next set of 100 galaxies at the bottom of the page.

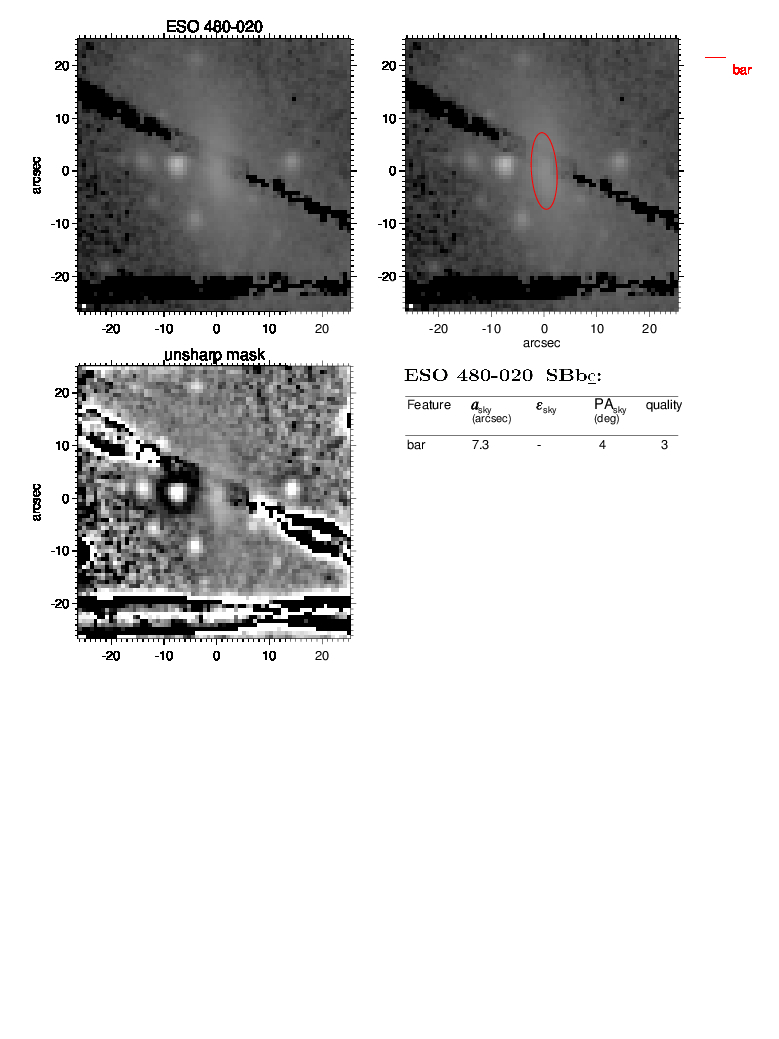

Galaxy # 101
ESO480-020
SBb_c:
T = 7
Galaxy # 102
ESO481-014
Sdm,sp
T = 6
Galaxy # 103

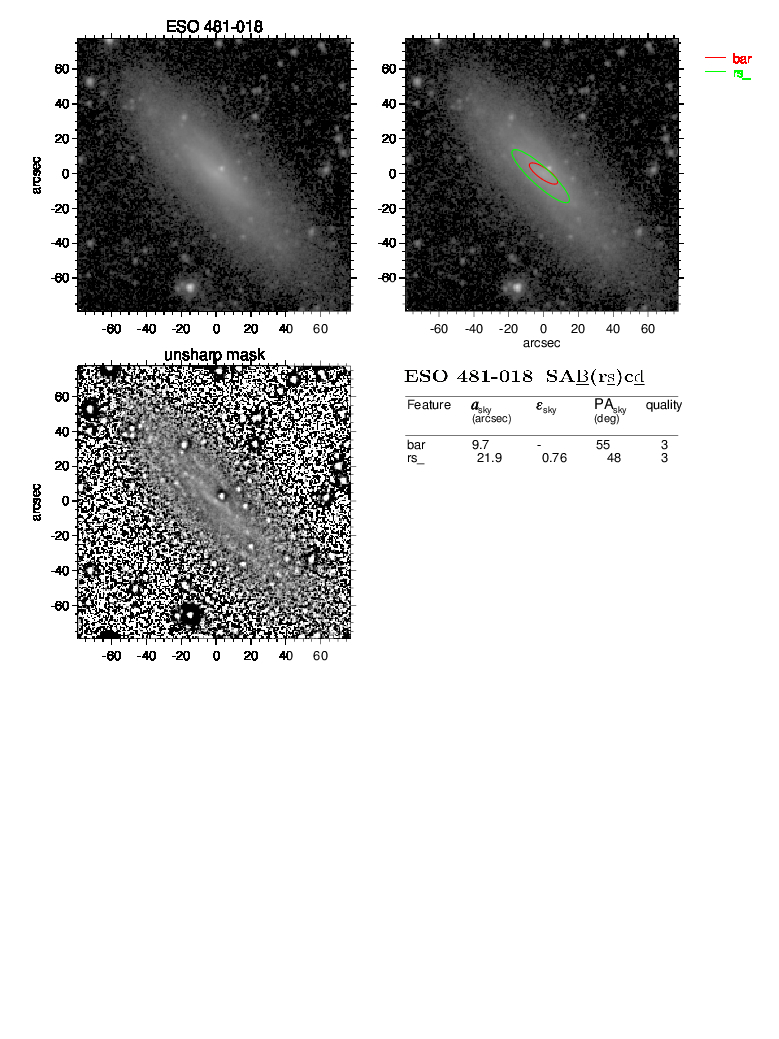

ESO481-018
SA_B(rs_)c_d
T = 7
Galaxy # 104
ESO482-005
SAB(s)d,sp
T = 10
Galaxy # 105
ESO482-013
SB(s)m,sp
T = 7
Galaxy # 106
ESO482-035
SB(rs)b_c,pec
T = 3
Galaxy # 107
ESO482-046
SAB(s)_dm,sp
T = 9

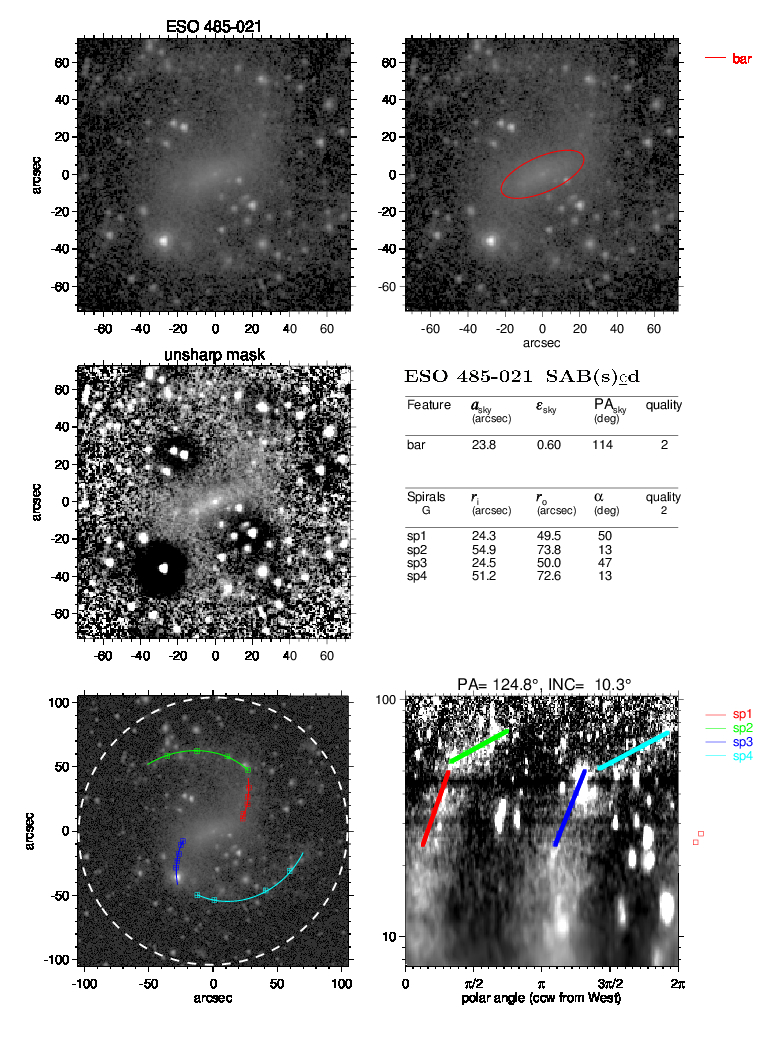

Galaxy # 108
ESO485-021
SAB(s)_cd
T = 8

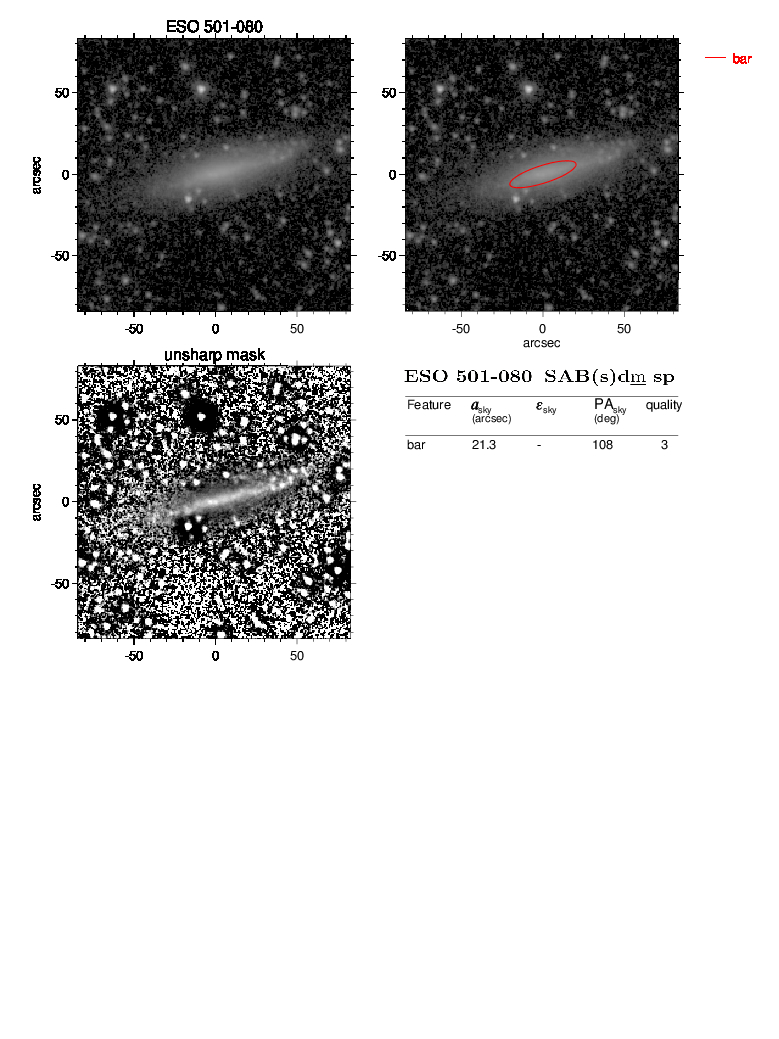

Galaxy # 109
ESO501-080
SAB(s)d_m,sp
T = 5

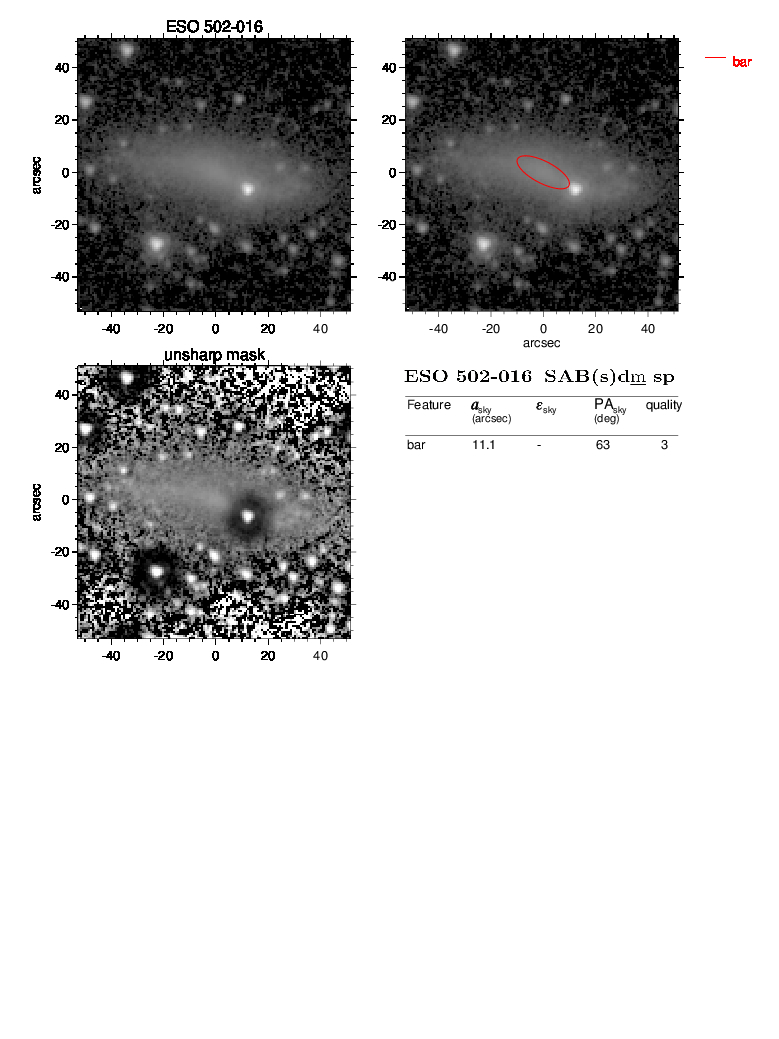

Galaxy # 110
ESO502-016
SAB(s)d_m,sp
T = 10

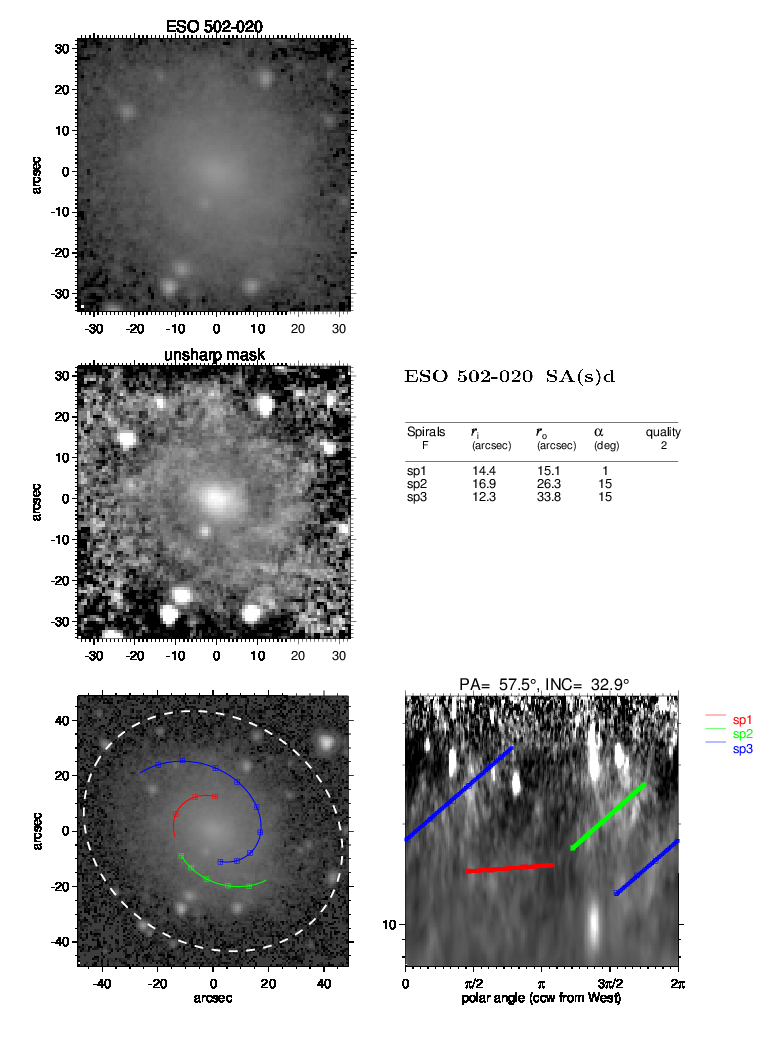

Galaxy # 111
ESO502-020
SA(s)d
T = 5

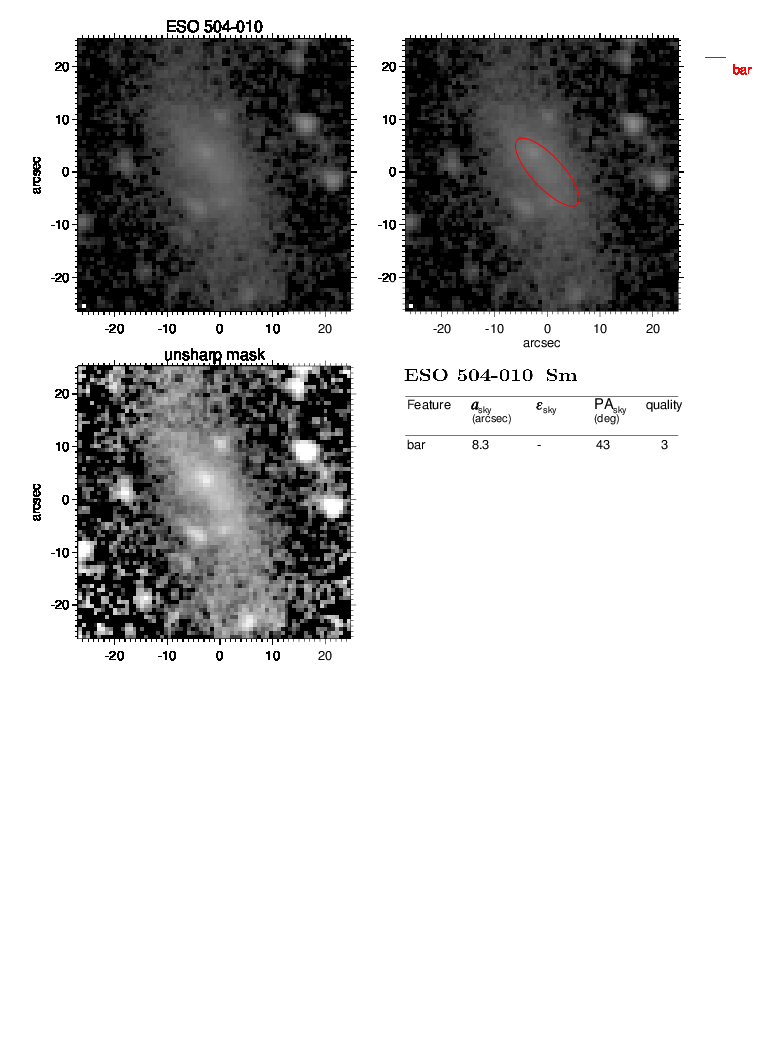

Galaxy # 112
ESO504-010
Sm
T = 8
Galaxy # 113
ESO504-028
SA(s)_cd
T = 7

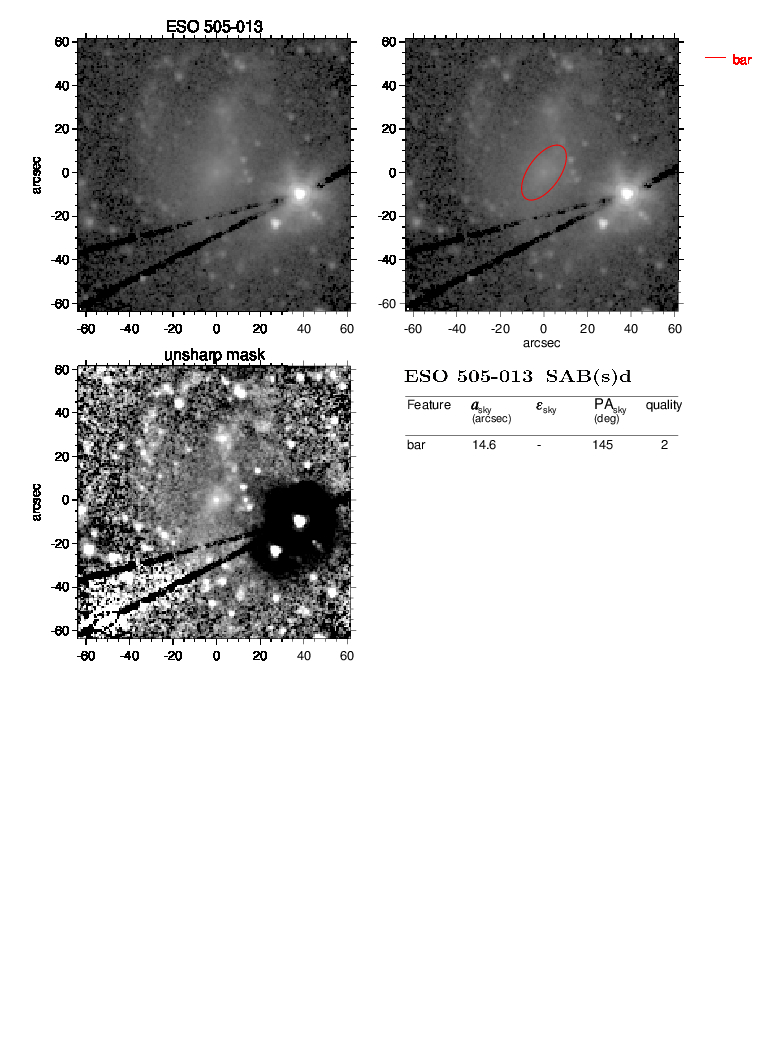

Galaxy # 114
ESO505-013
SAB(s)d
T = 0
Galaxy # 115

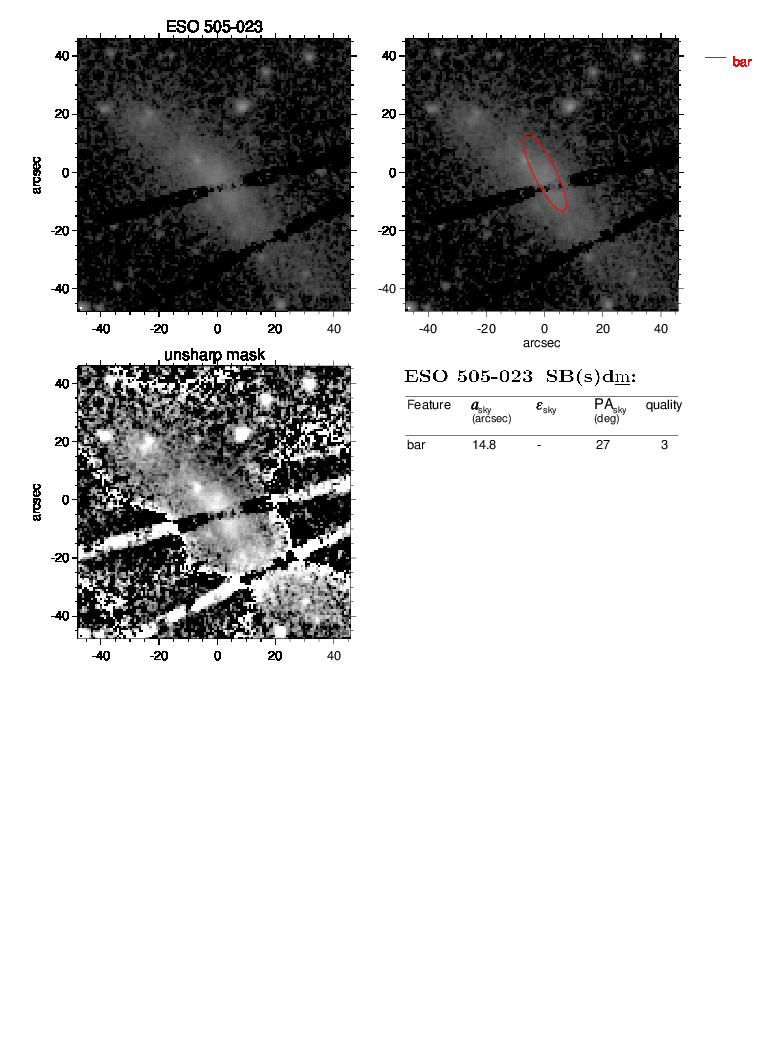

ESO505-023
SB(s)d_m:
T = 3
Galaxy # 116
ESO506-029
SBdm
T = 8

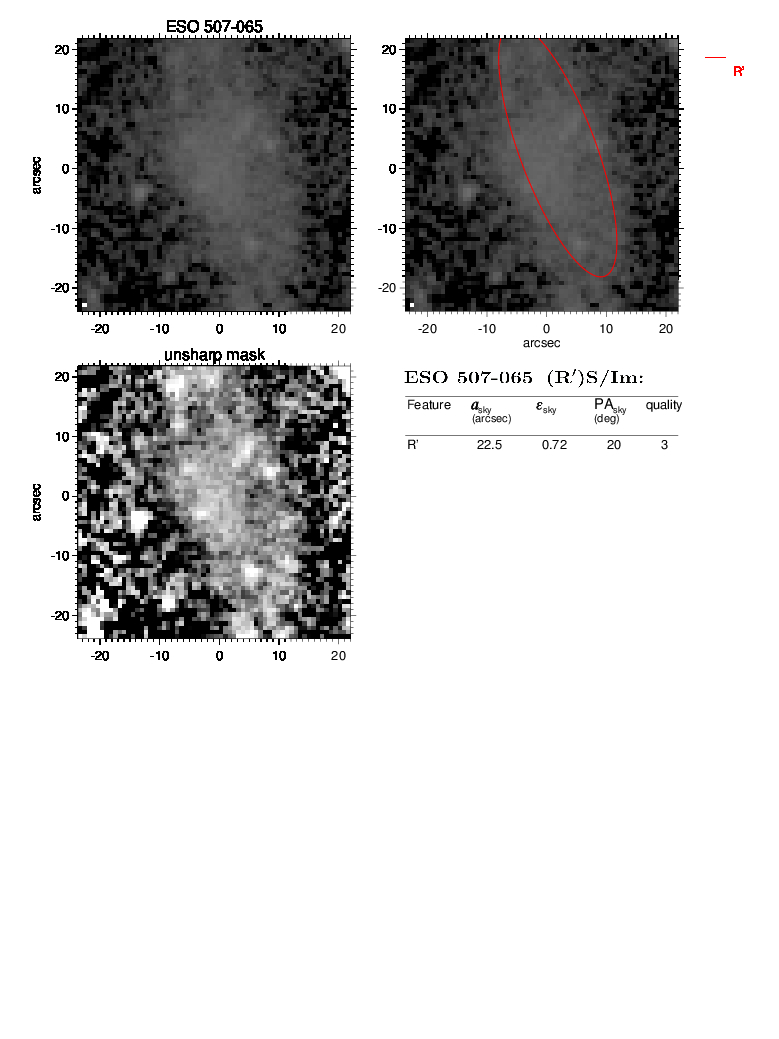

Galaxy # 117
ESO507-065
(R')S/Im:
T = -3
Galaxy # 118
ESO508-007
SA_B(rs_)_dm
T = 8
Galaxy # 119
ESO508-019
SB(s)m:,pec
T = 7
Galaxy # 120
ESO508-024
SAB(rs)c
T = 9
Galaxy # 121

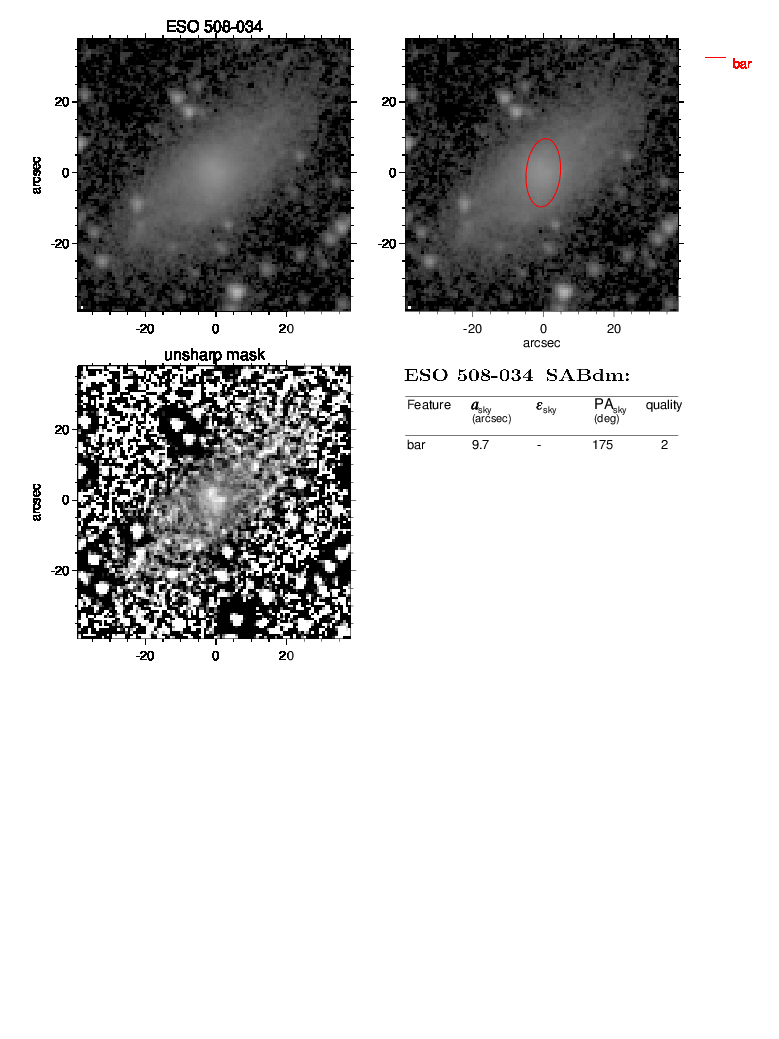

ESO508-034
SABdm:
T = 8
Galaxy # 122
ESO508-051
(R'L)SAd:
T = 9
Galaxy # 123
ESO509-026
S/Im:
T = 10

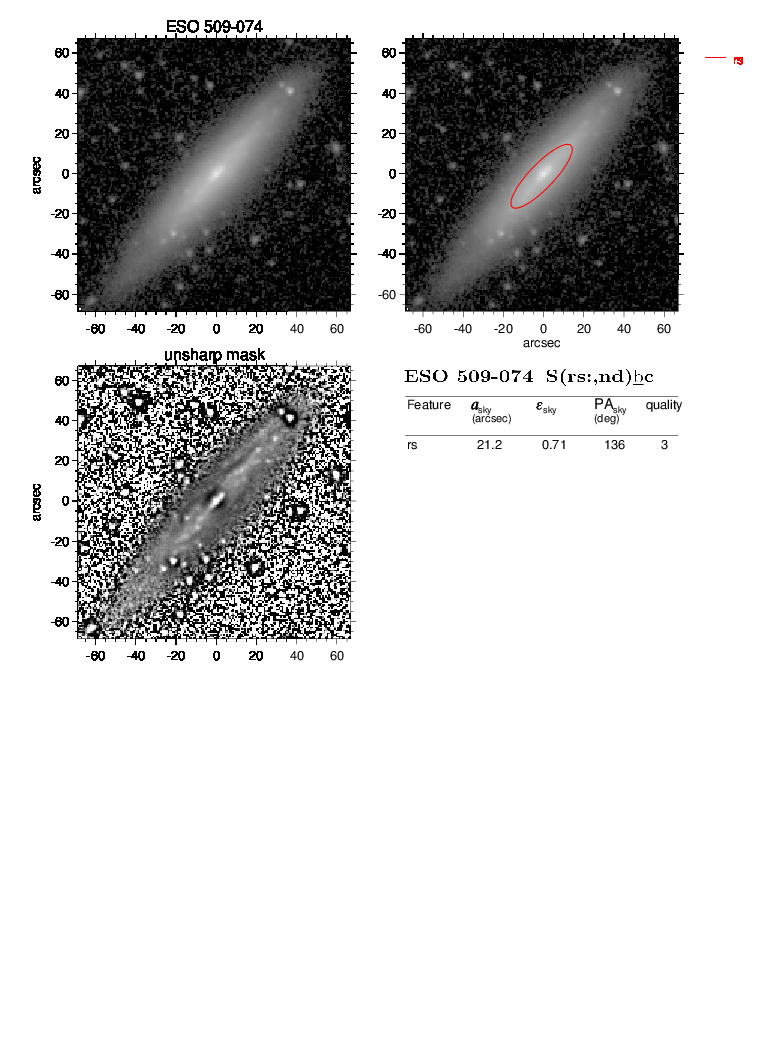

Galaxy # 124
ESO509-074
S(rs:,nd)_bc
T = 10
Galaxy # 125
ESO510-058
(R')SAB(rs_)m
T = 3
Galaxy # 126
ESO510-059
SB(rs_)c
T = 6

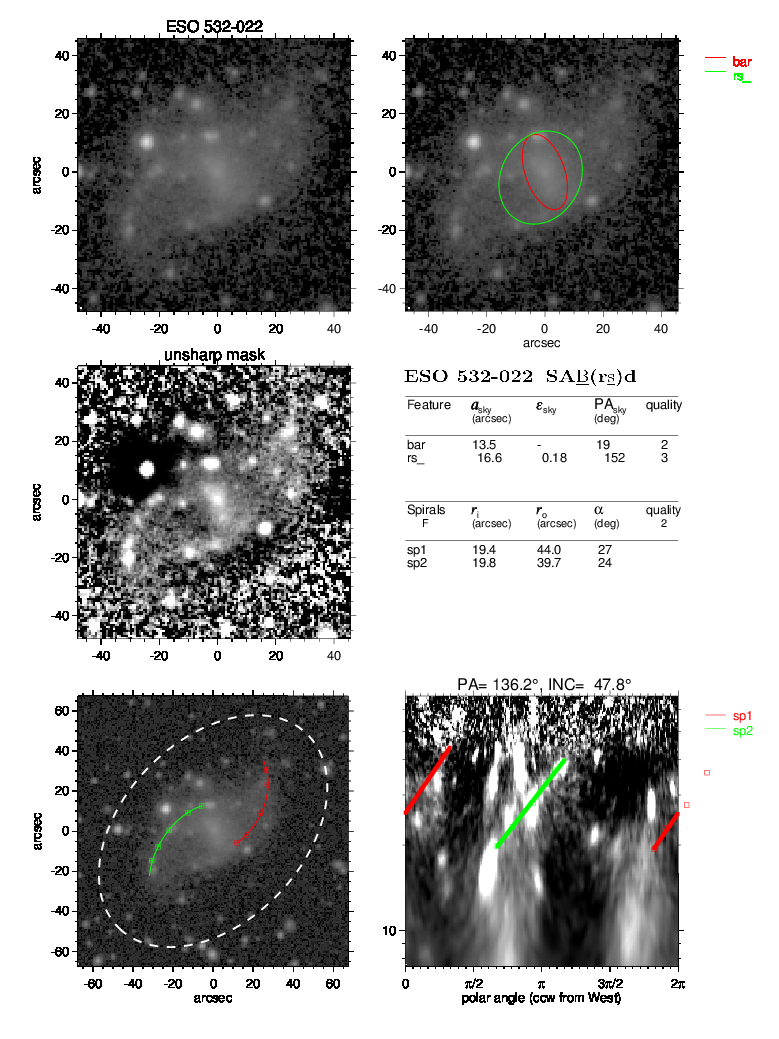

Galaxy # 127
ESO532-022
SA_B(rs_)d
T = 3
Galaxy # 128
ESO533-028
SA(s)bc
T = 10
Galaxy # 129

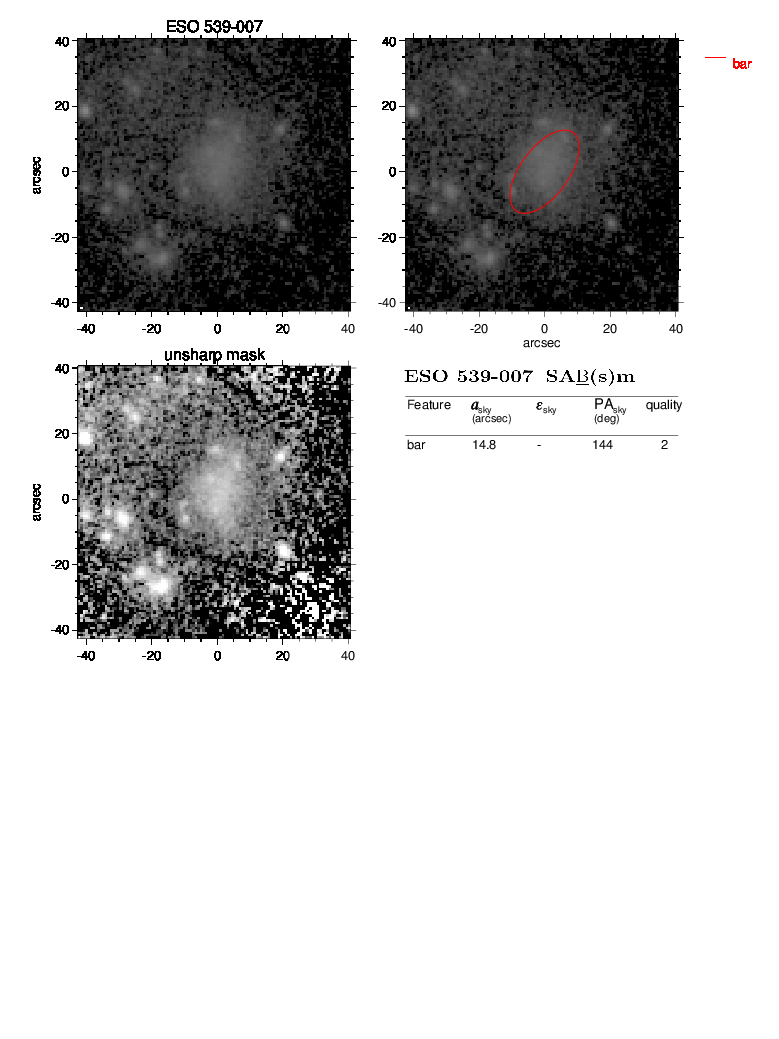

ESO539-007
SA_B(s)m
T = 9

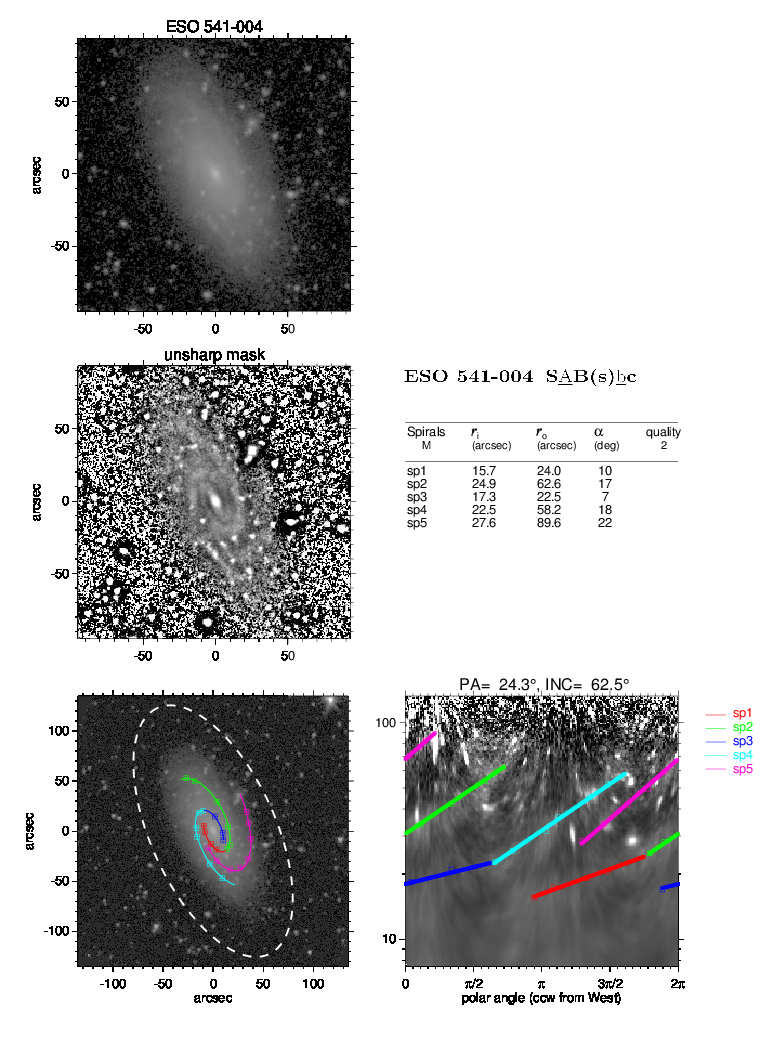

Galaxy # 130
ESO541-004
S_AB(s)_bc
T = 7

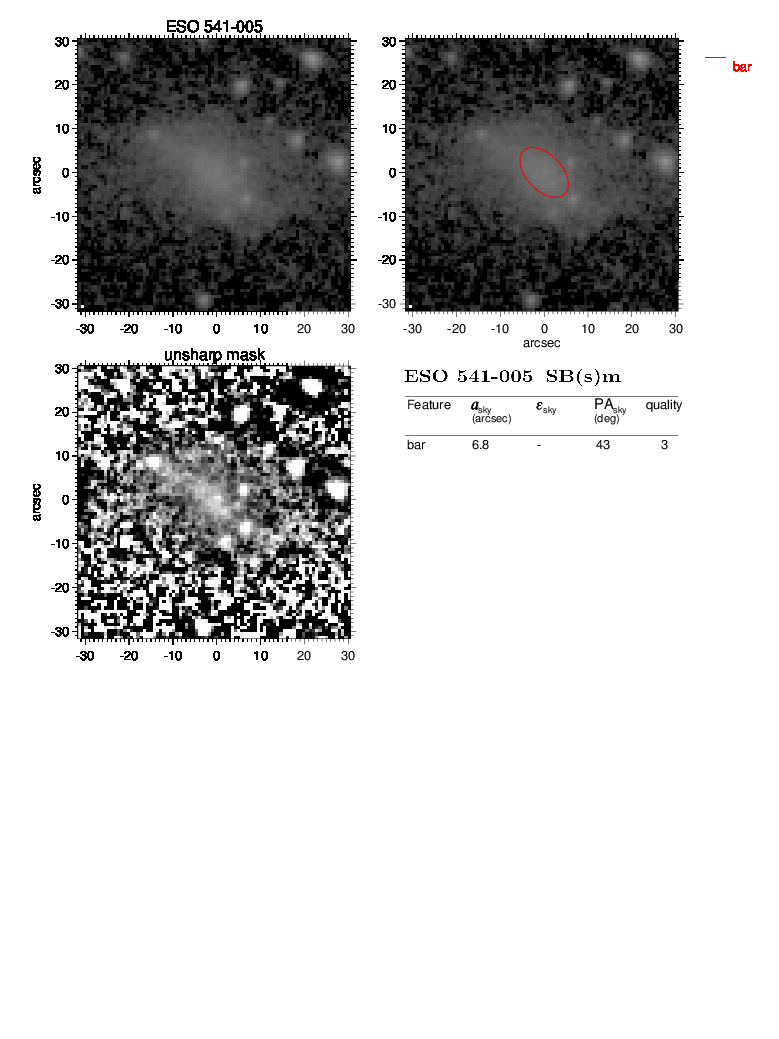

Galaxy # 131
ESO541-005
SB(s)m
T = 9

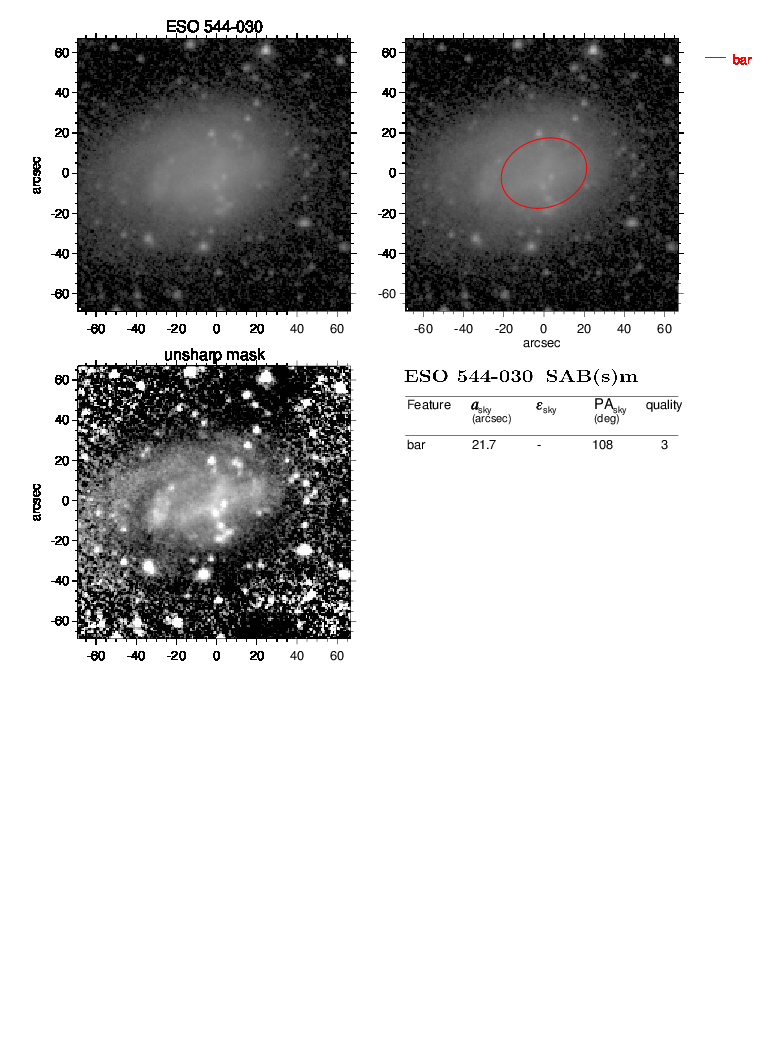

Galaxy # 132
ESO544-030
SAB(s)m
T = 6
Galaxy # 133
ESO545-016
(R)SAdm
T = 7
Galaxy # 134
ESO547-005
SABd_m:
T = 10

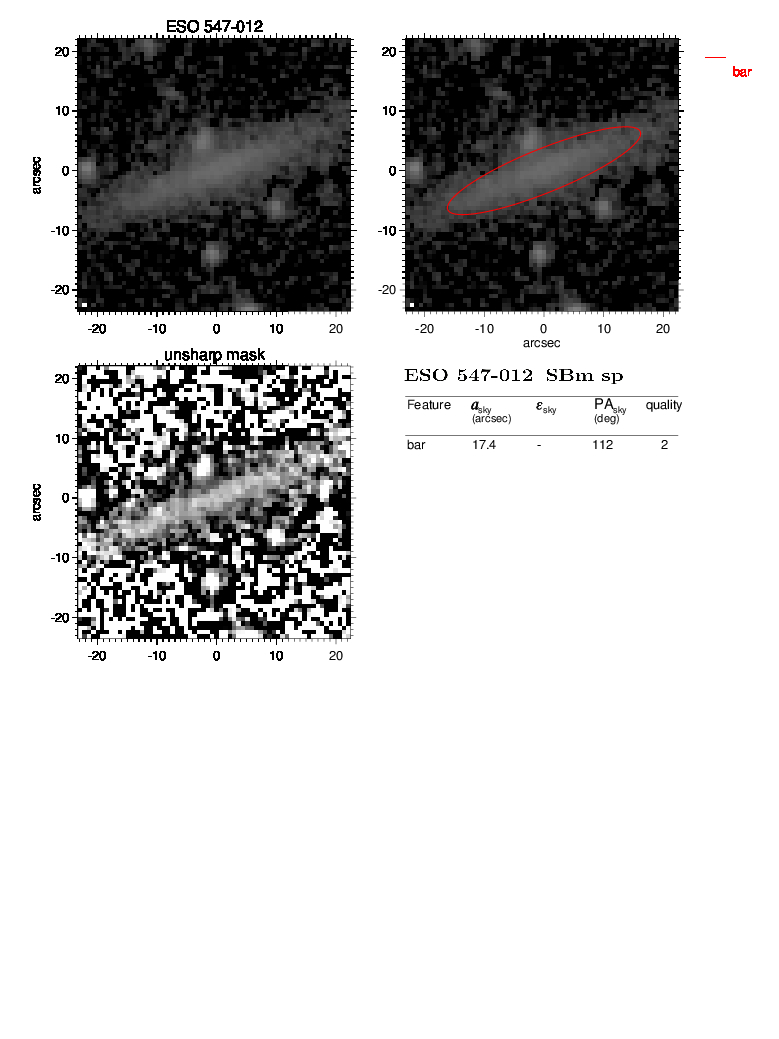

Galaxy # 135
ESO547-012
SBm,sp
T = 8
Galaxy # 136
ESO548-005
SAB(rs_)d_m
T = 10

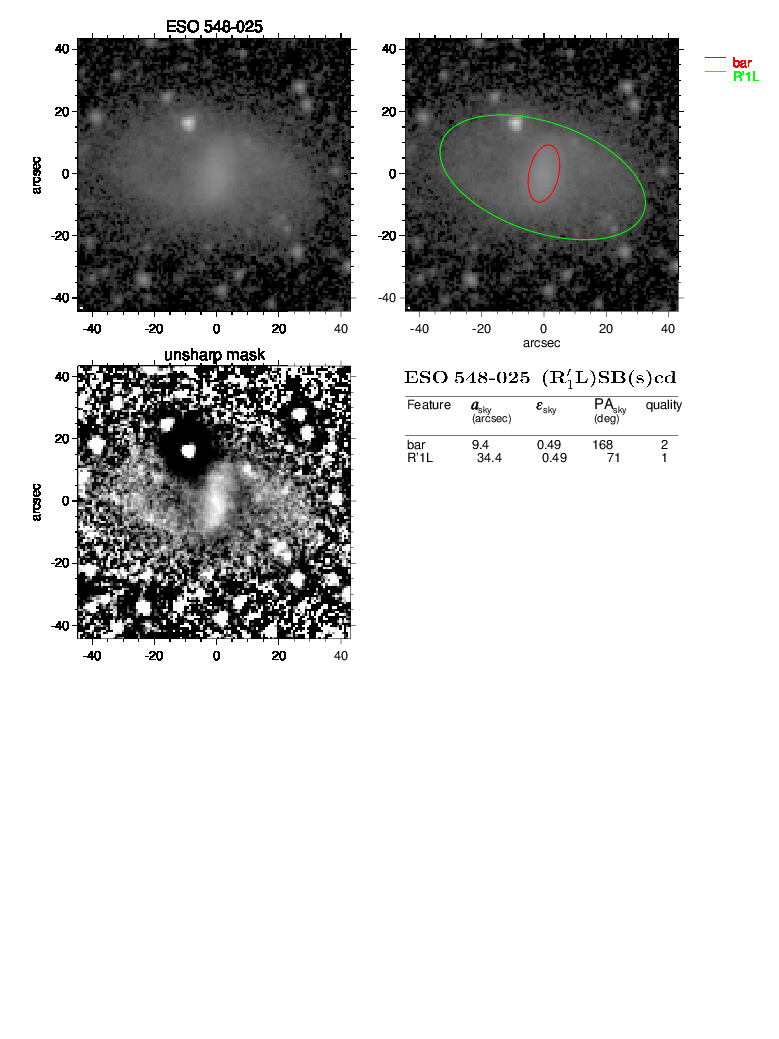

Galaxy # 137
ESO548-025
(R'1L)SB(s)cd
T = 10
Galaxy # 138
ESO548-032
SB(s)_dm
T = 4
Galaxy # 139

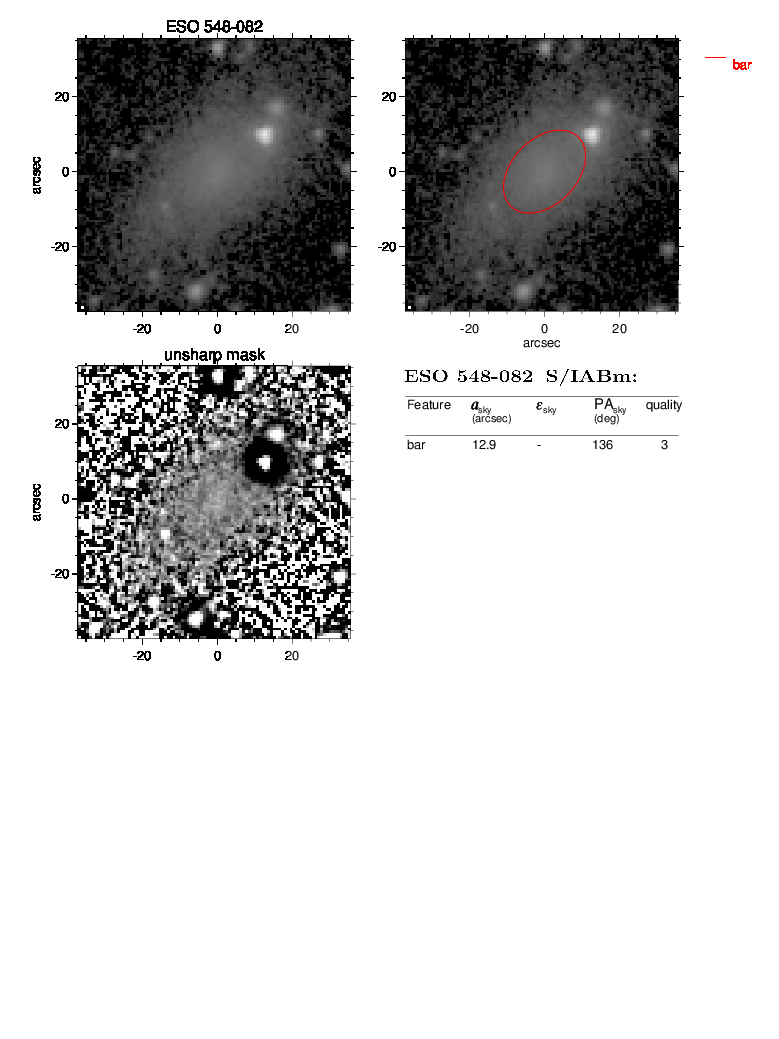

ESO548-082
S/IABm:
T = 10
Galaxy # 140

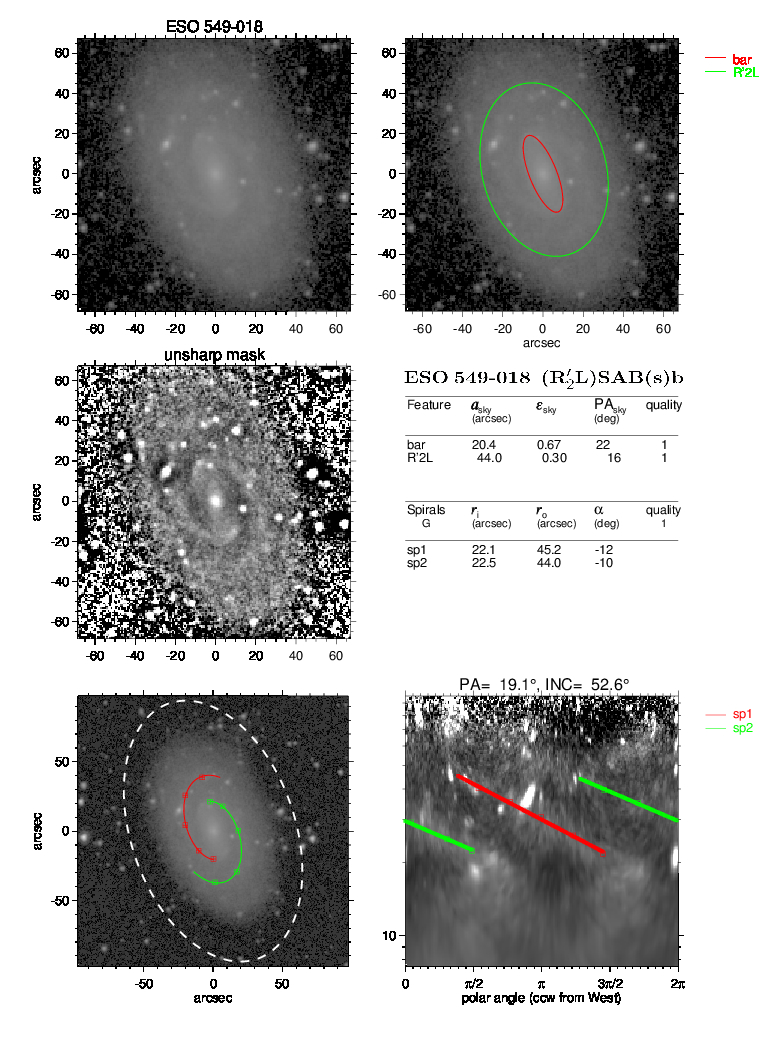

ESO549-018
(R'2L)SAB(s)b
T = 2
Galaxy # 141
ESO549-035
SABd_m:
T = 7
Galaxy # 142
ESO550-005
SA_B(s)d,spw
T = 3
Galaxy # 143
ESO569-014
SB(s)d,sp
T = 7

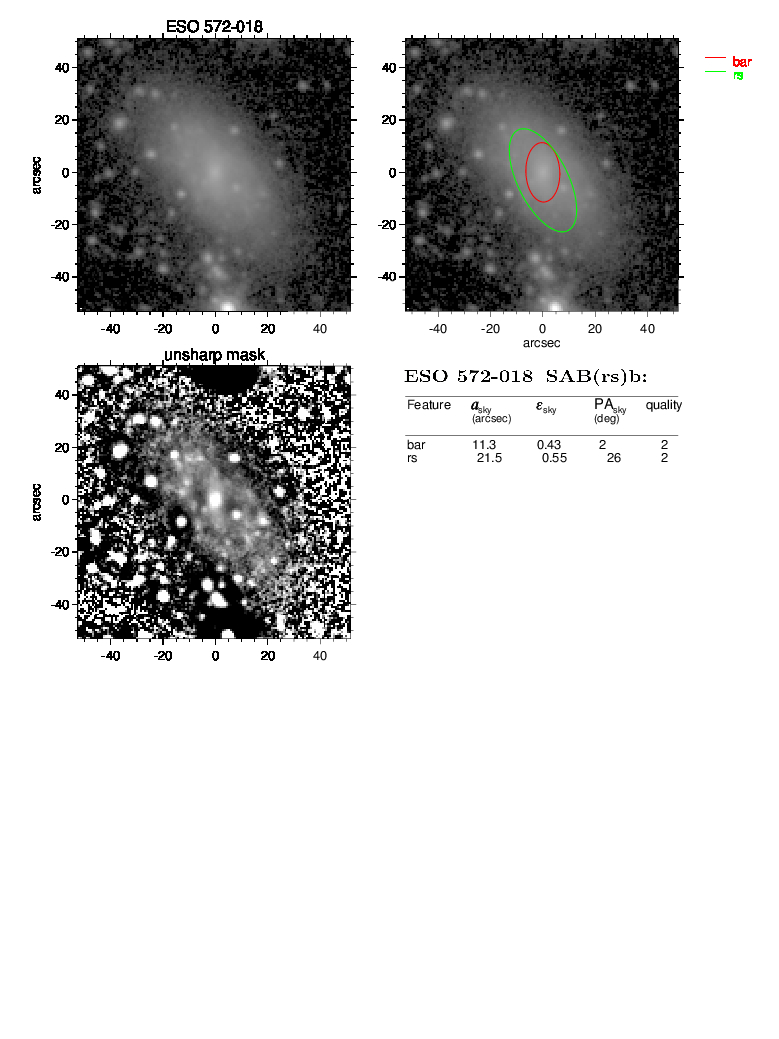

Galaxy # 144
ESO572-018
SAB(rs)b:
T = 99

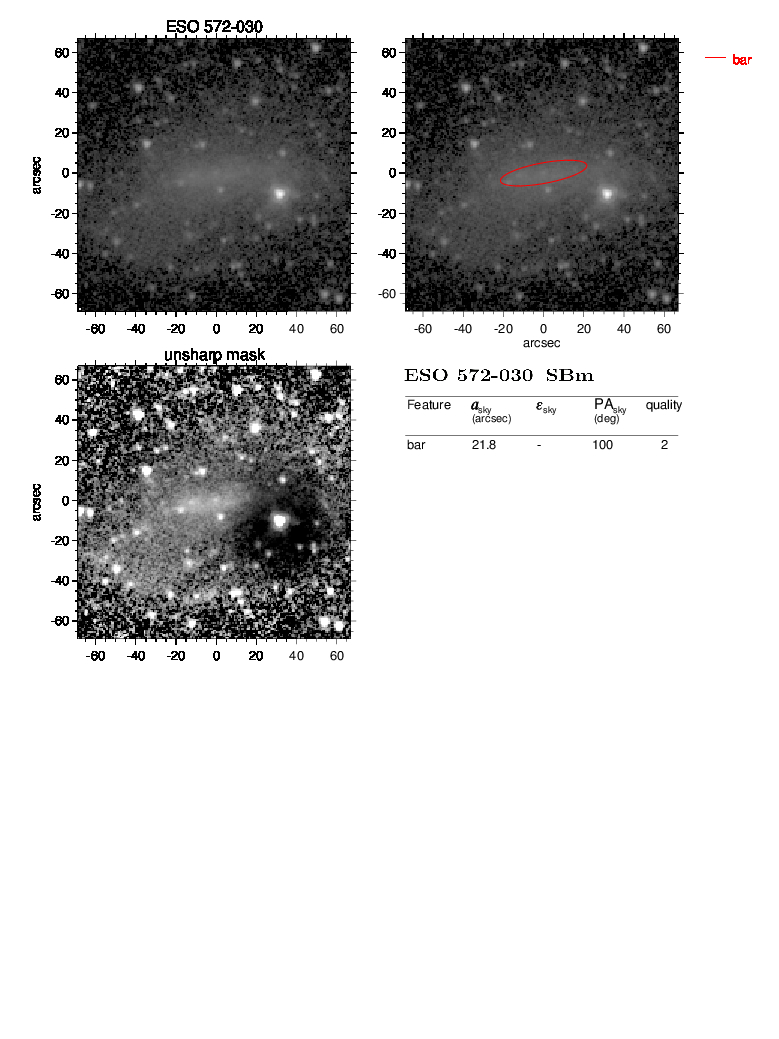

Galaxy # 145
ESO572-030
SBm
T = 10

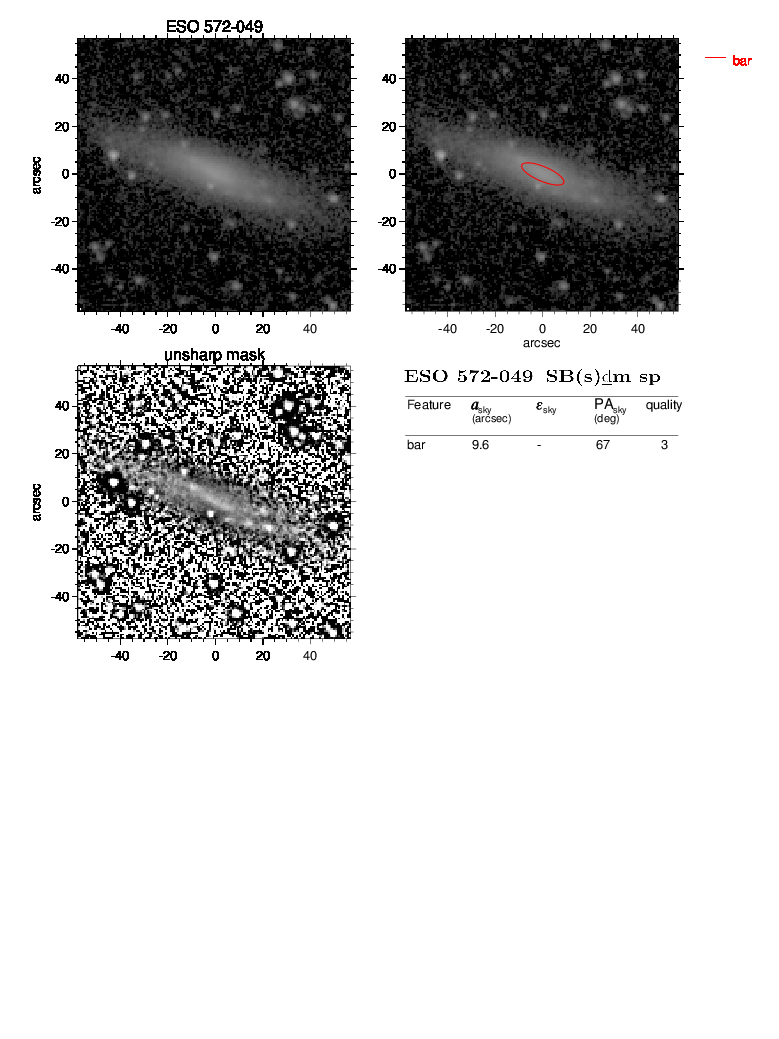

Galaxy # 146
ESO572-049
SB(s)_dm,sp
T = 10
Galaxy # 147

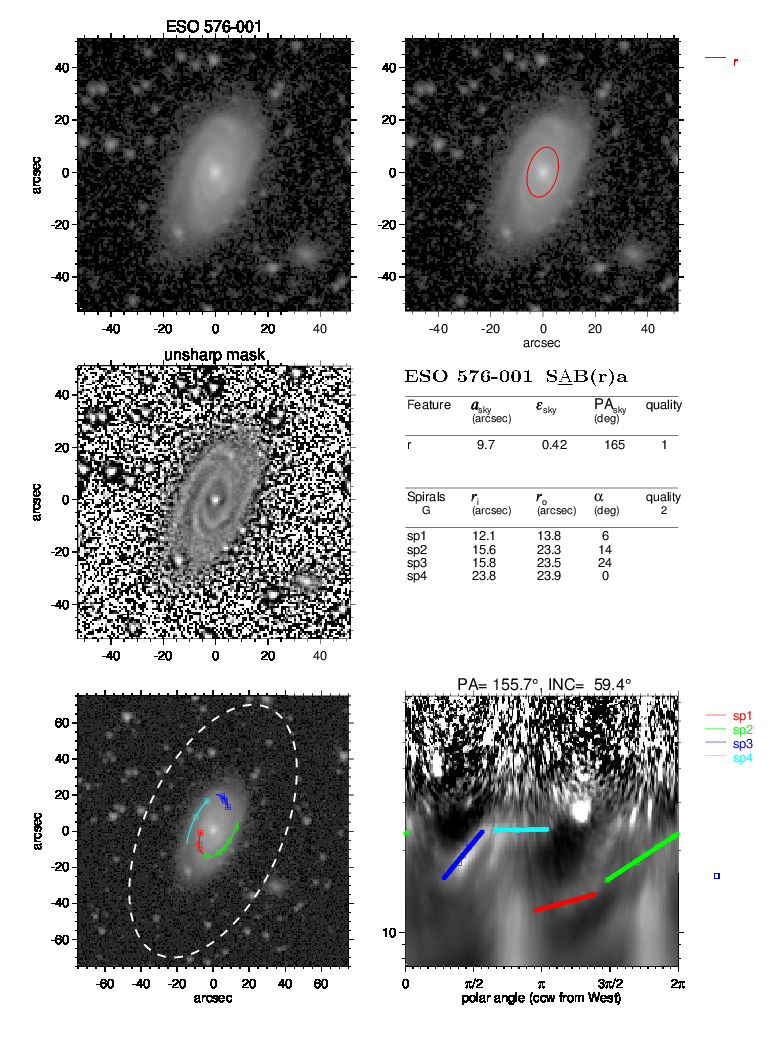

ESO576-001
S_AB(r)a
T = 10
Galaxy # 148

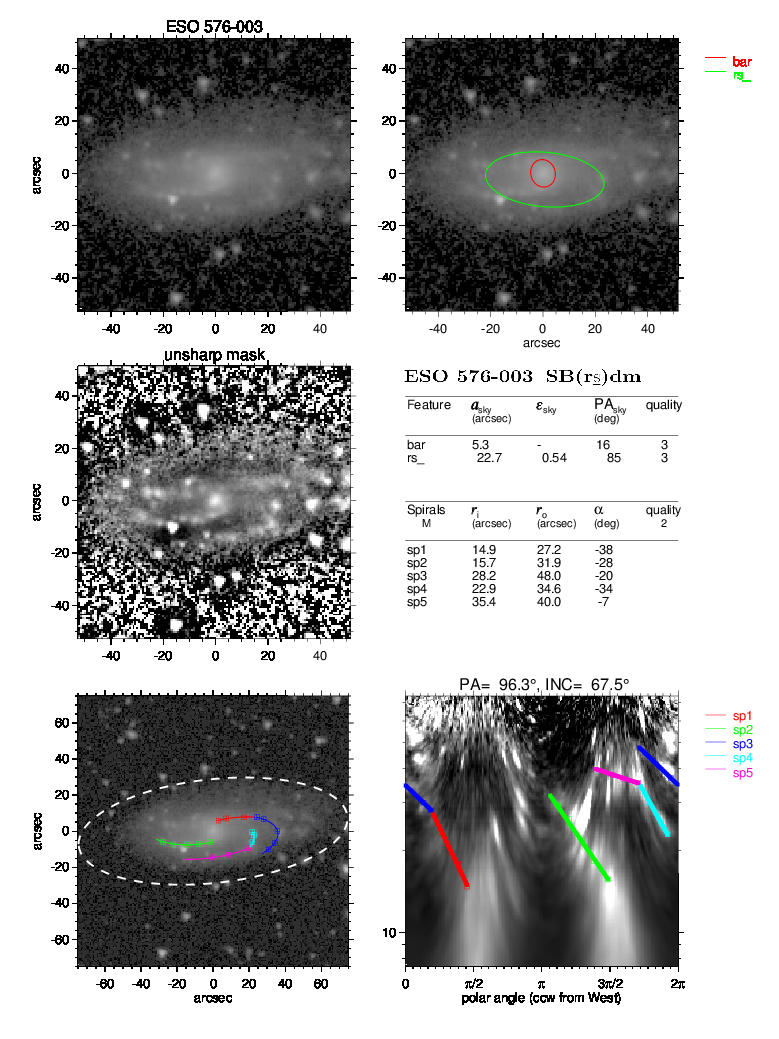

ESO576-003
SB(rs_)dm
T = 5
Galaxy # 149
ESO576-008
SBa0/_a:,sp
T = 8
Galaxy # 150
ESO576-032
SB(rs)c,pec
T = 10

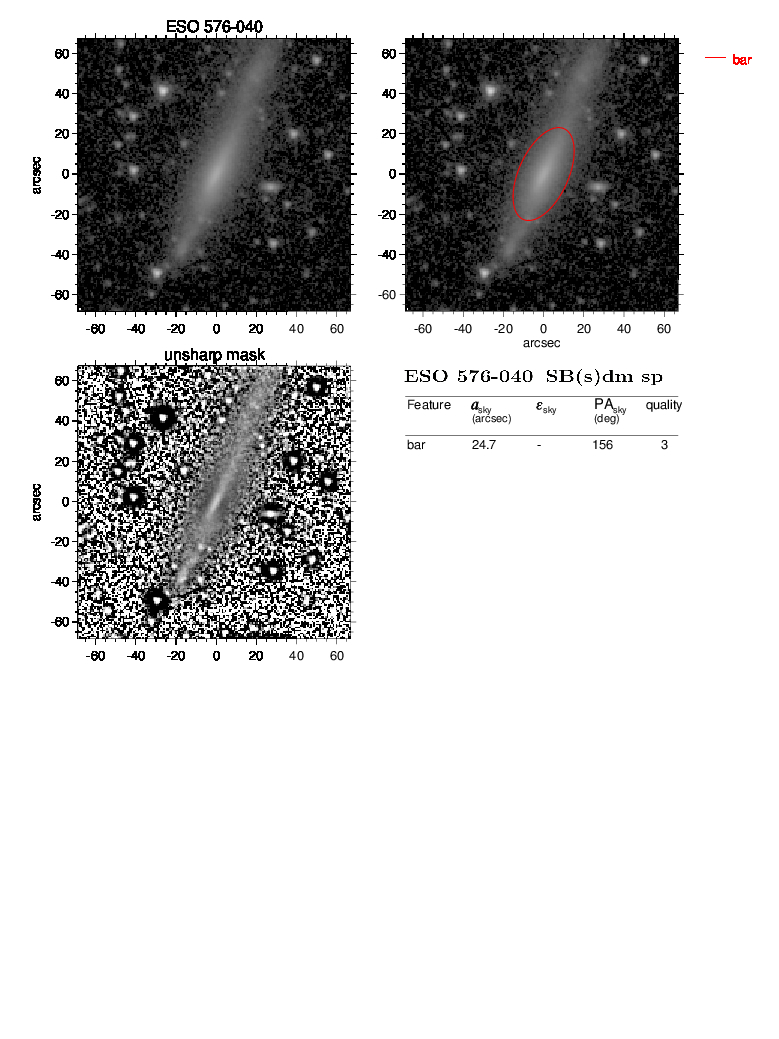

Galaxy # 151
ESO576-040
SB(s)dm,sp
T = 8

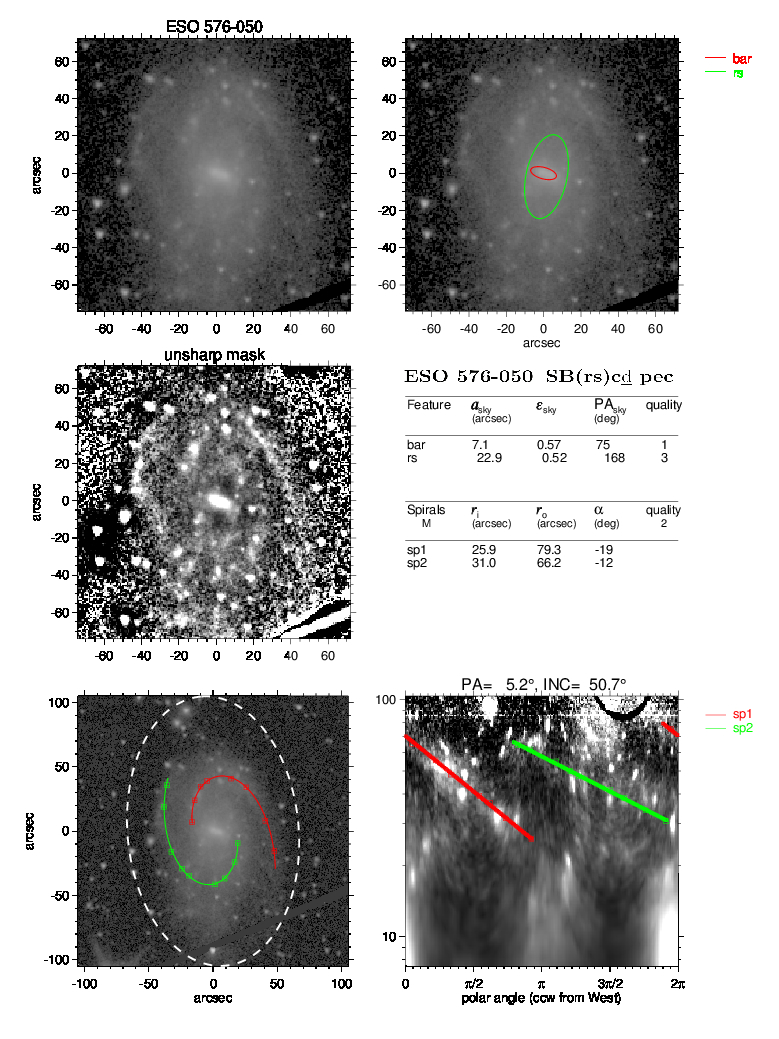

Galaxy # 152
ESO576-050
SB(rs)c_d,pec
T = 10

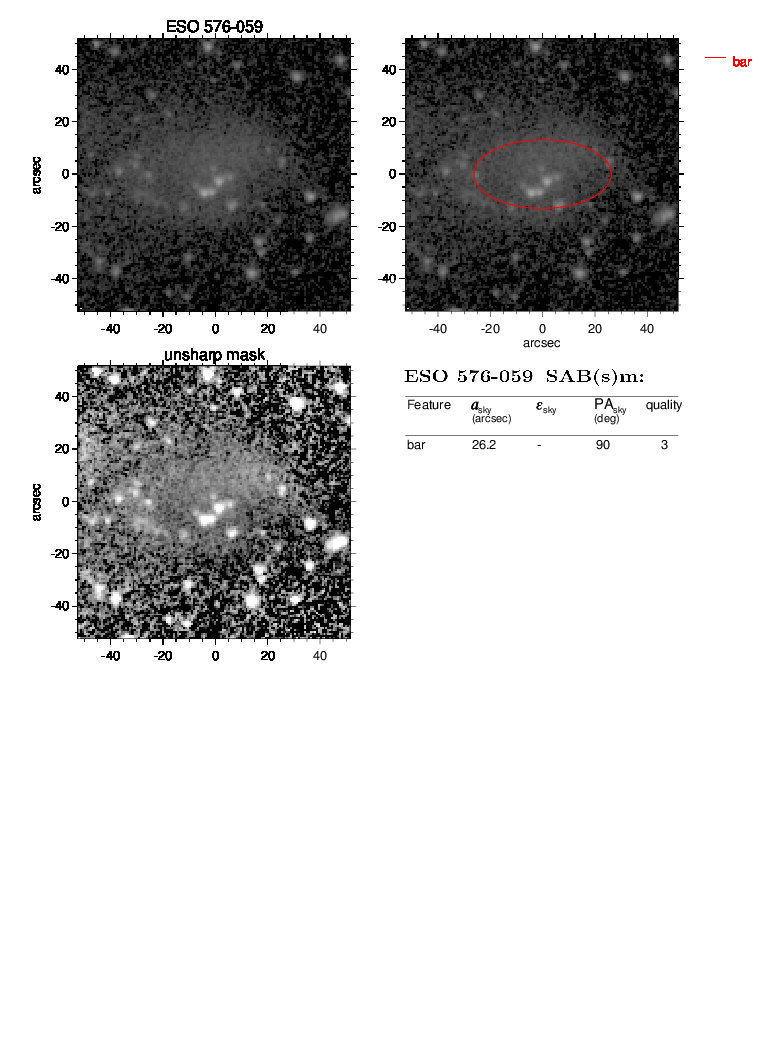

Galaxy # 153
ESO576-059
SAB(s)m:
T = 11

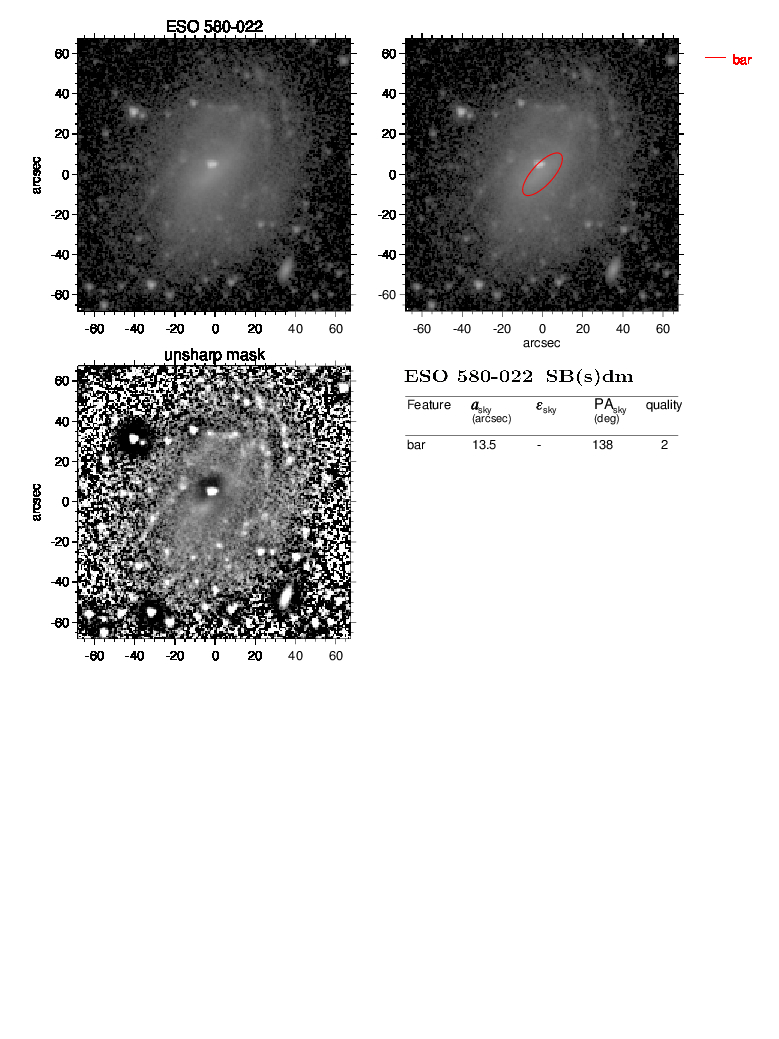

Galaxy # 154
ESO580-022
SB(s)dm
T = 8
Galaxy # 155
ESO580-029
(R'L)Sa_b,spw
T = 10

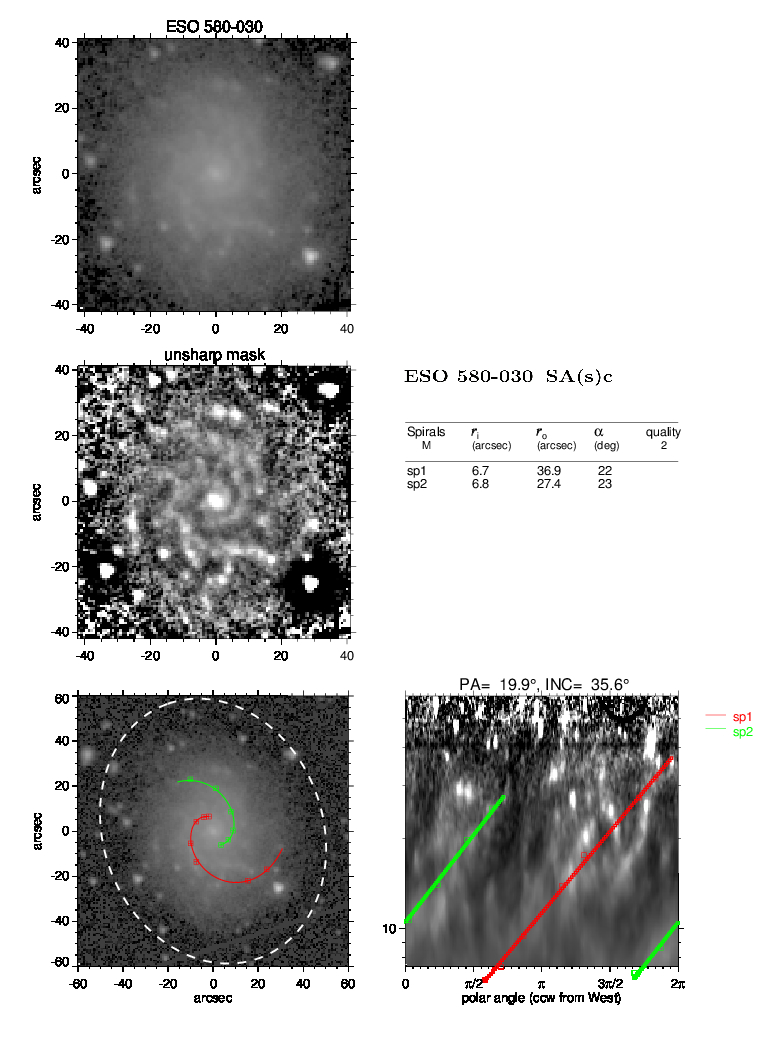

Galaxy # 156
ESO580-030
SA(s)c
T = 10

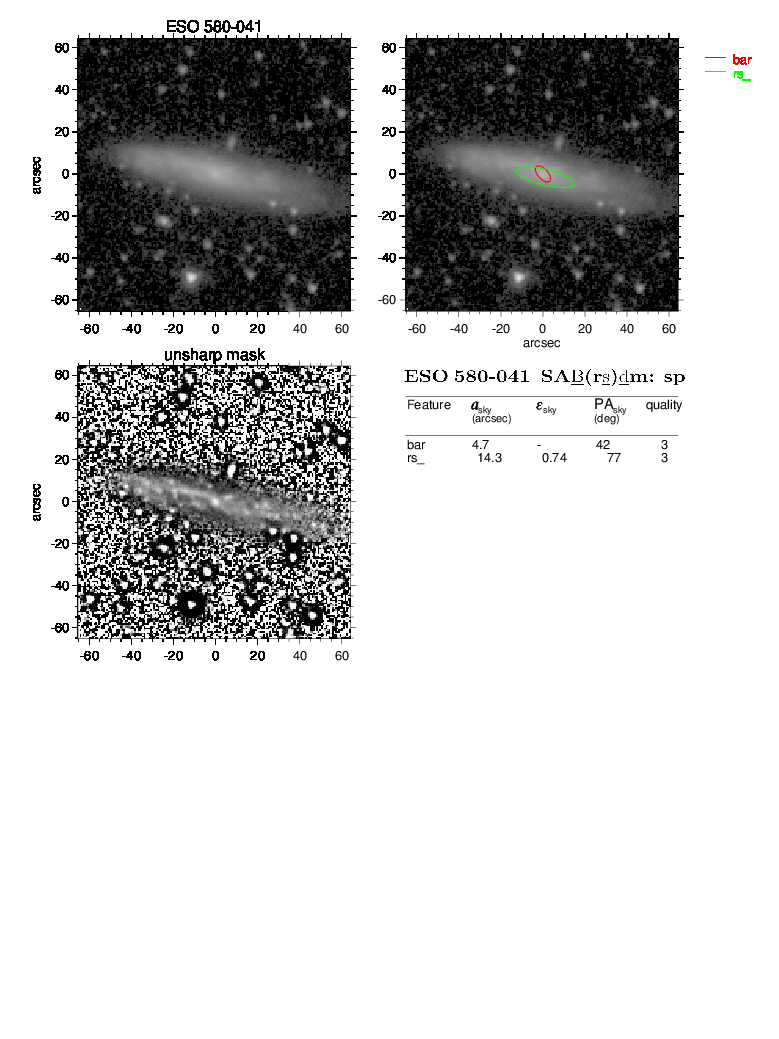

Galaxy # 157
ESO580-041
SA_B(rs_)_dm:,sp
T = 10
Galaxy # 158
ESO581-025
SA_B(s,nd)b_c,sp
T = 8
Galaxy # 159

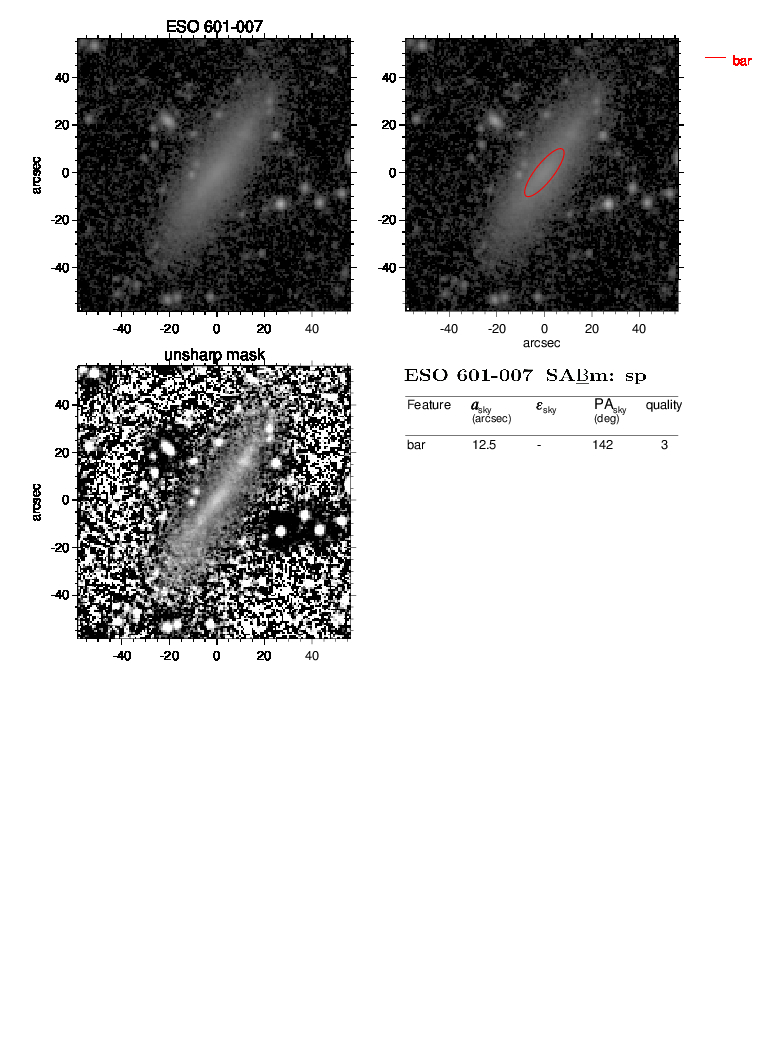

ESO601-007
SA_Bm:,sp
T = 10
Galaxy # 160
ESO601-031
SA_B(s)m
T = 6

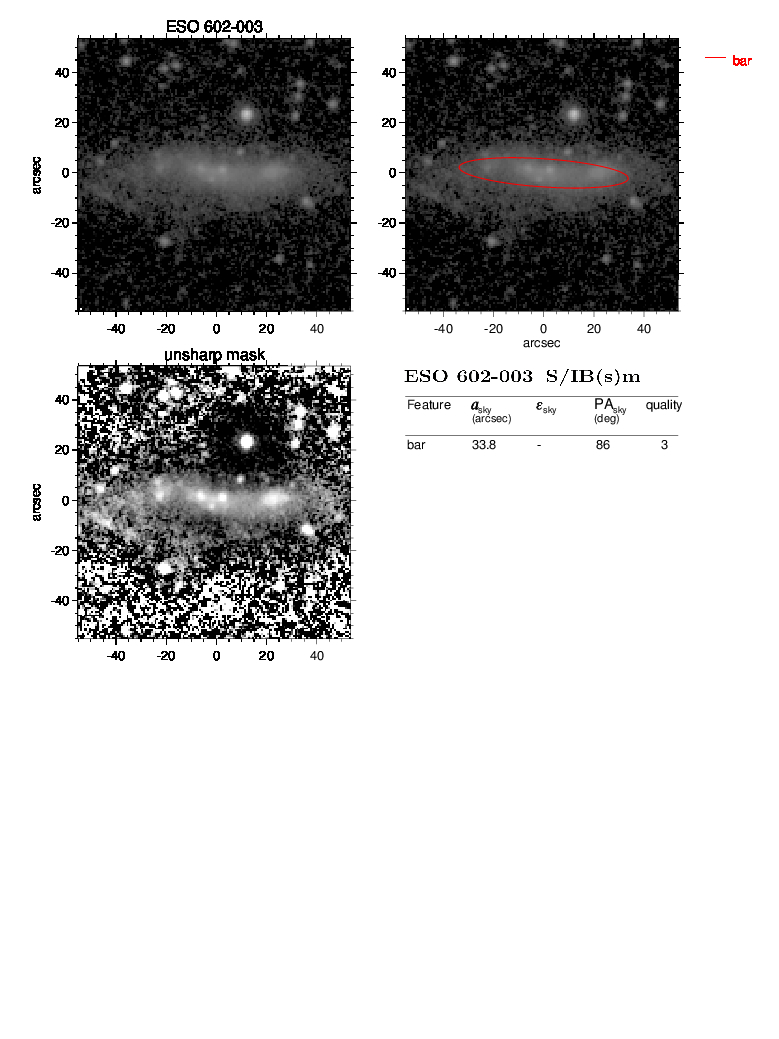

Galaxy # 161
ESO602-003
S/IB(s)m
T = 10
Galaxy # 162
ESO602-015
SA_B(s)b_c:
T = 7
Galaxy # 163
ESO602-030
SB(rs)d
T = 9

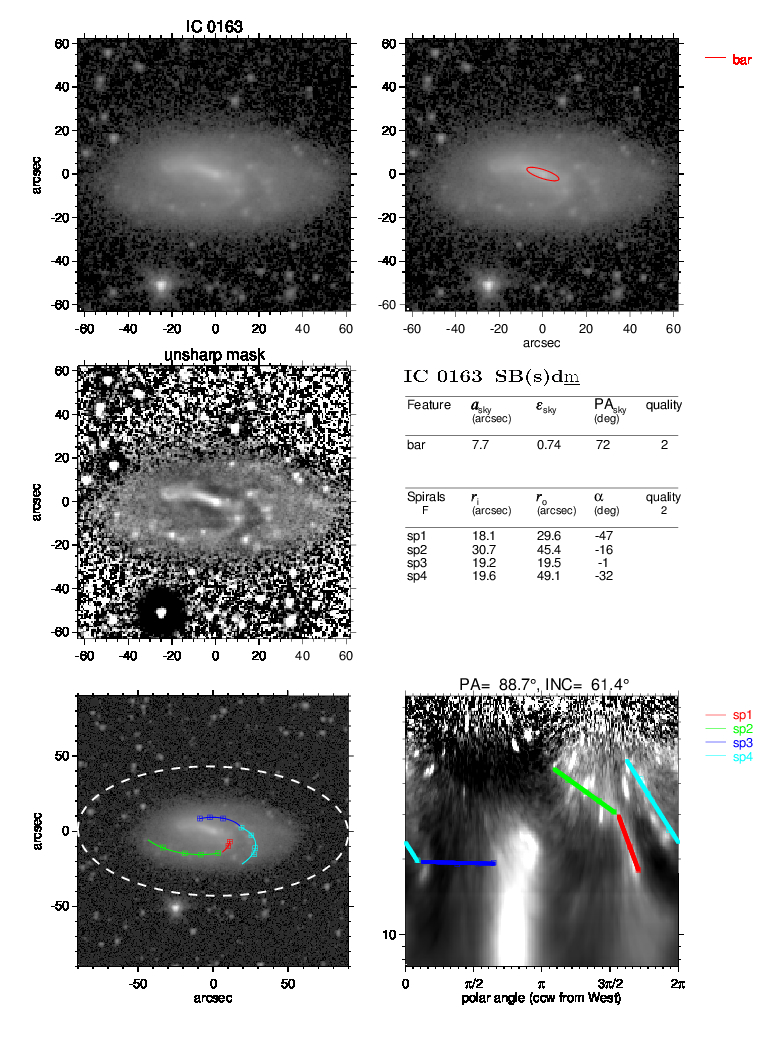

Galaxy # 164
IC0163
SB(s)d_m
T = 4
Galaxy # 165
IC0167
SA_B(s)cd
T = 9
Galaxy # 166
IC0210
SB(s)dm,sp
T = 6
Galaxy # 167
IC0223
IA_Bm
T = -2

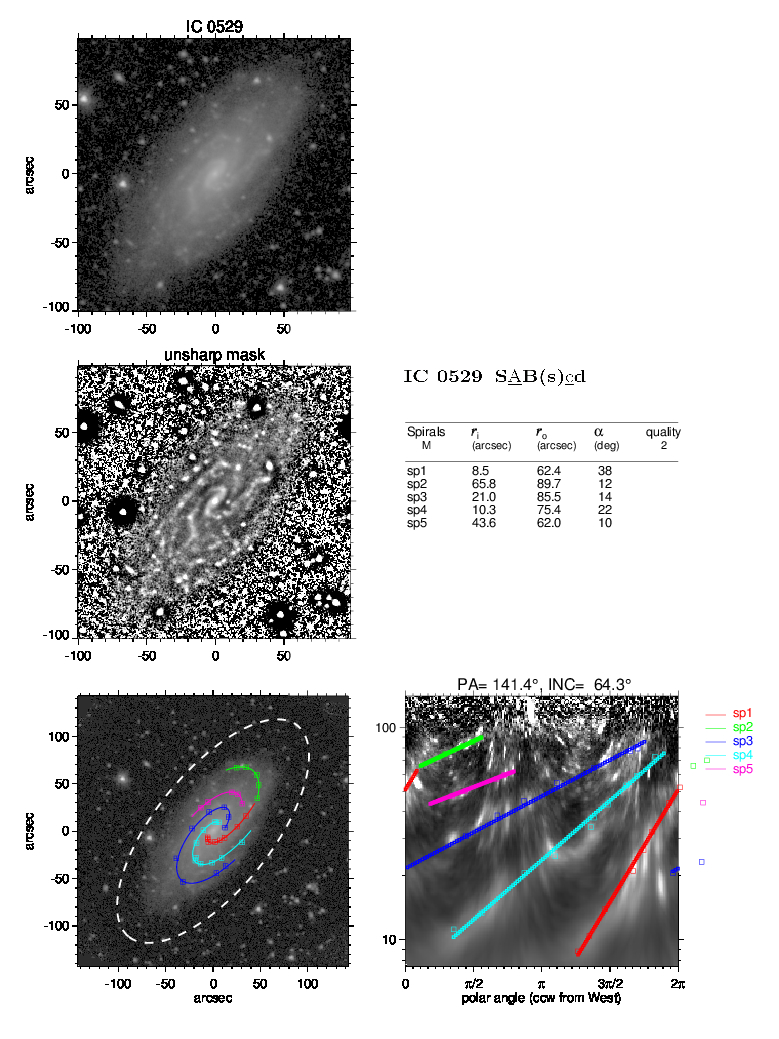

Galaxy # 168
IC0529
S_AB(s)_cd
T = 10
Galaxy # 169

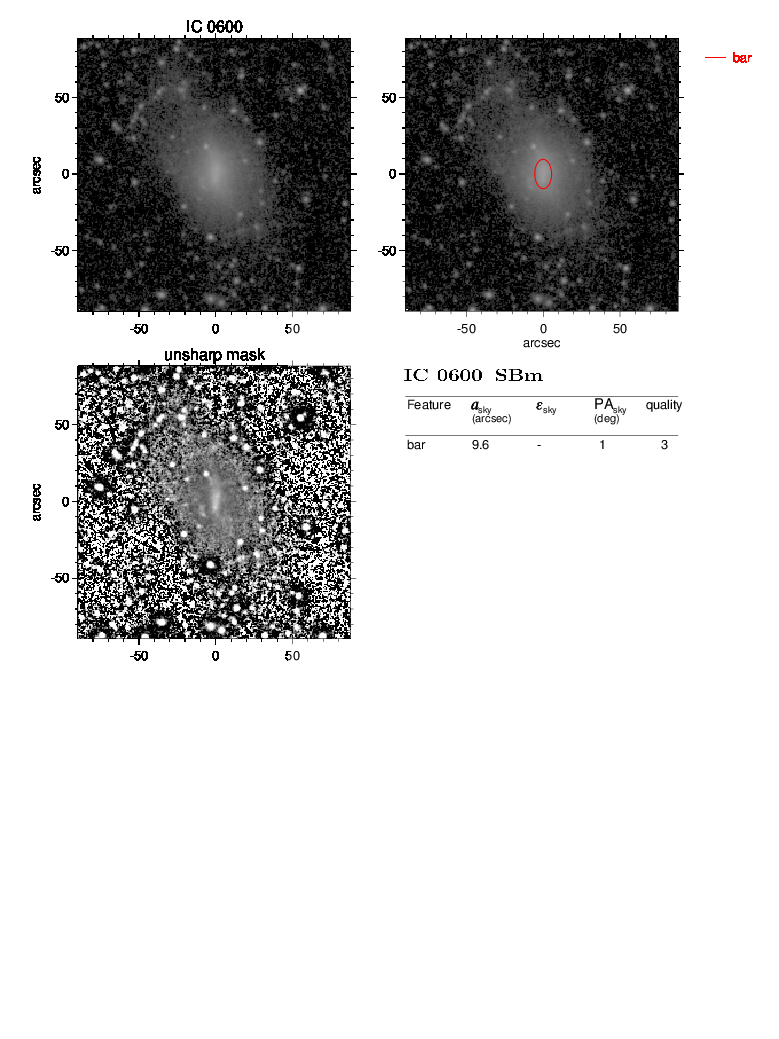

IC0600
SBm
T = 7
Galaxy # 170
IC0718
SB(s)m
T = 5
Galaxy # 171

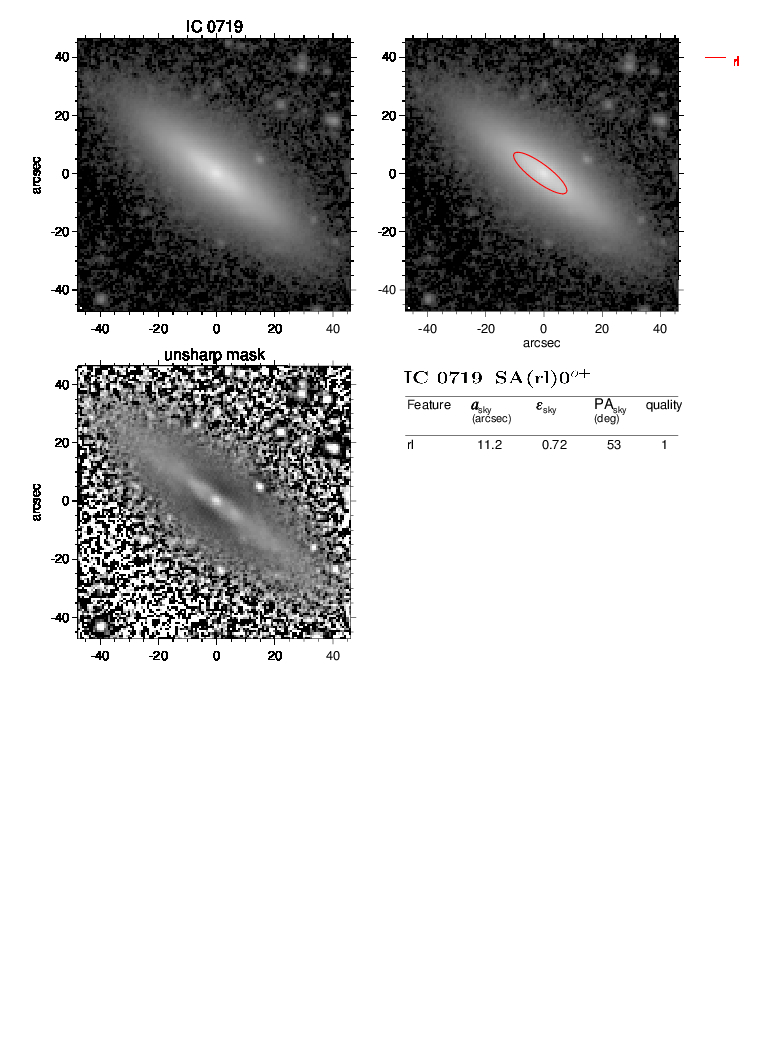

IC0719
SA(rl)0o+
T = 3
Galaxy # 172

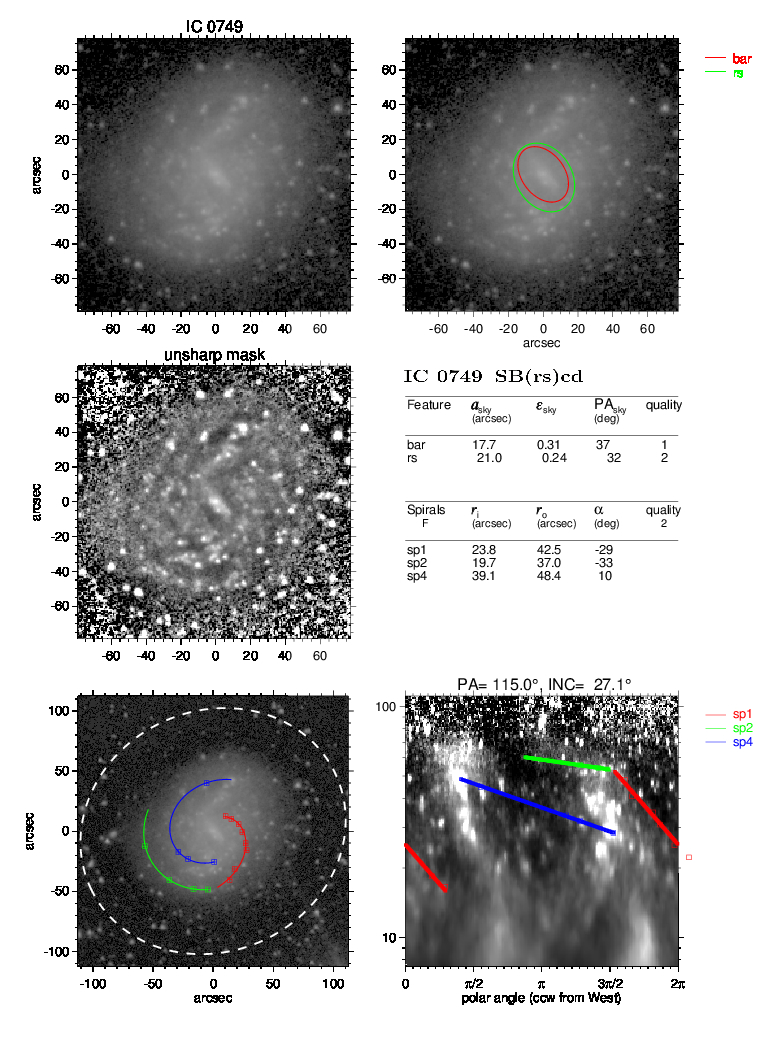

IC0749
SB(rs)cd
T = -1
Galaxy # 173
IC0750
(R':)SA(s)a
T = 9
Galaxy # 174
IC0755
SBd_m,sp
T = 7
Galaxy # 175

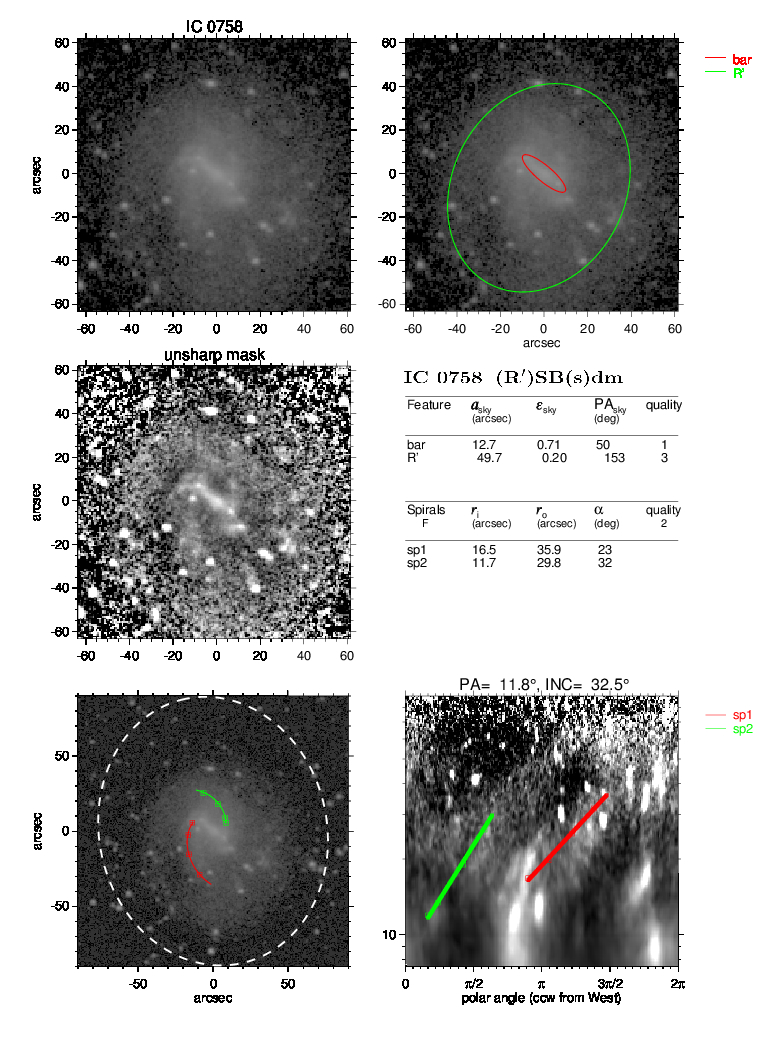

IC0758
(R')SB(s)dm
T = 5

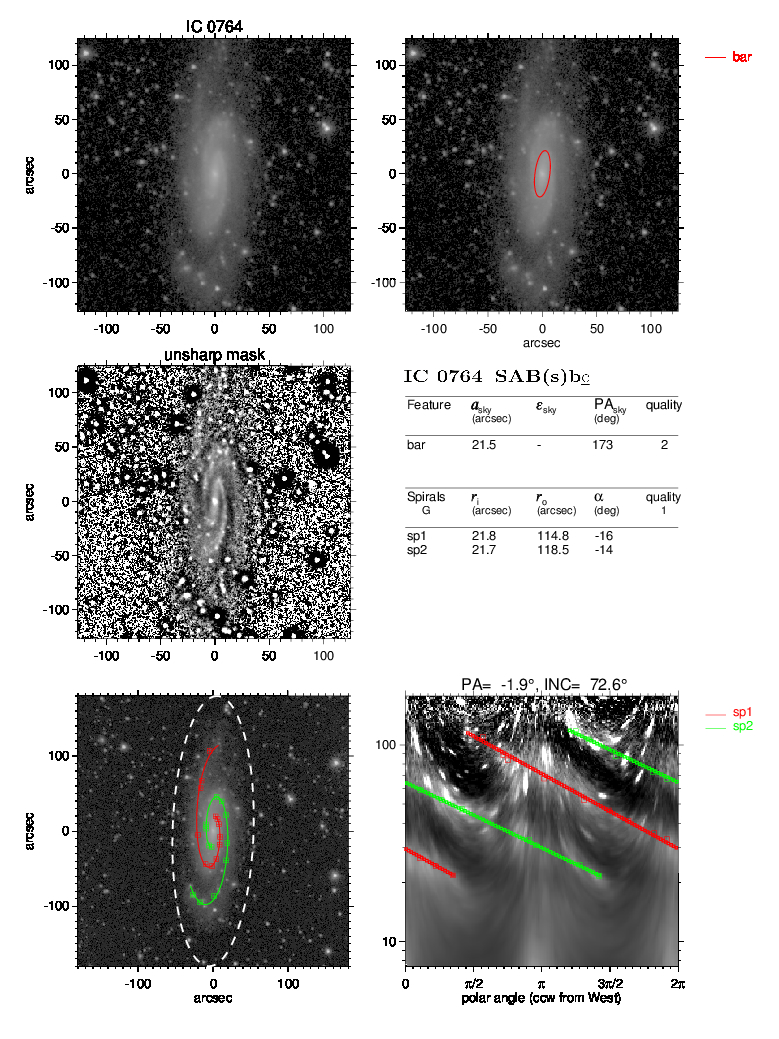

Galaxy # 176
IC0764
SAB(s)b_c
T = -5
Galaxy # 177
IC0769
SAB(s)_bc
T = 2
Galaxy # 178
IC0776
SAB(s)dm
T = -3
Galaxy # 179
IC0796
SA_Ba0-
T = 6
Galaxy # 180

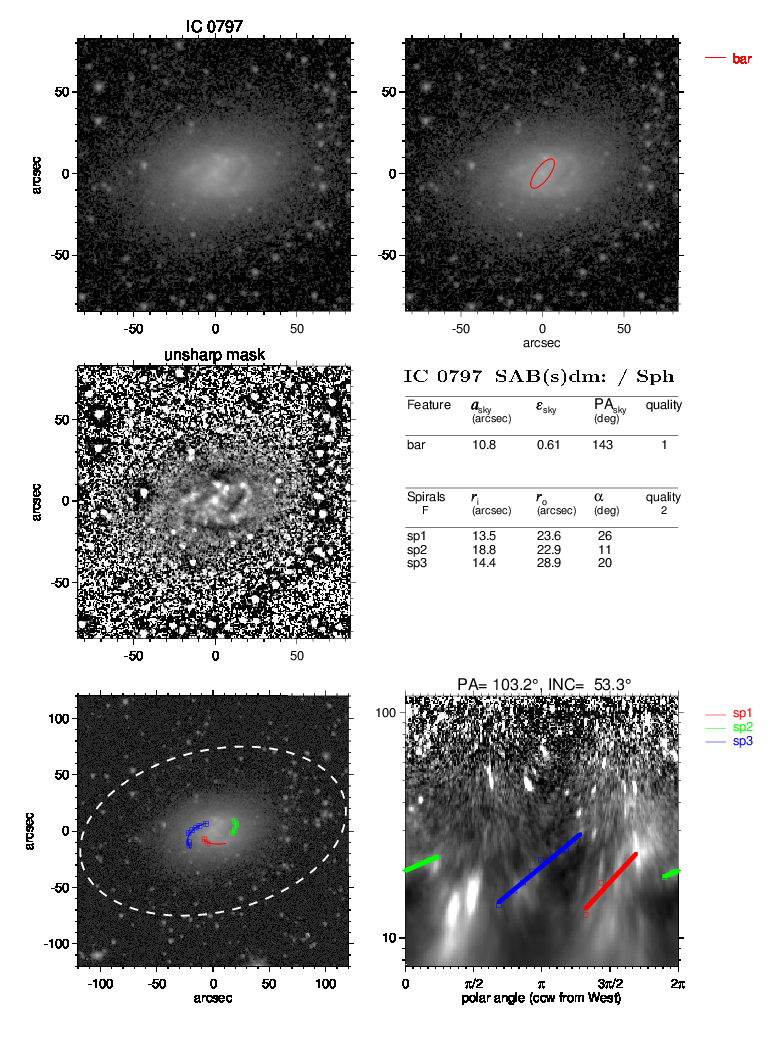

IC0797
SAB(s)dm:/Sph
T = 7
Galaxy # 181

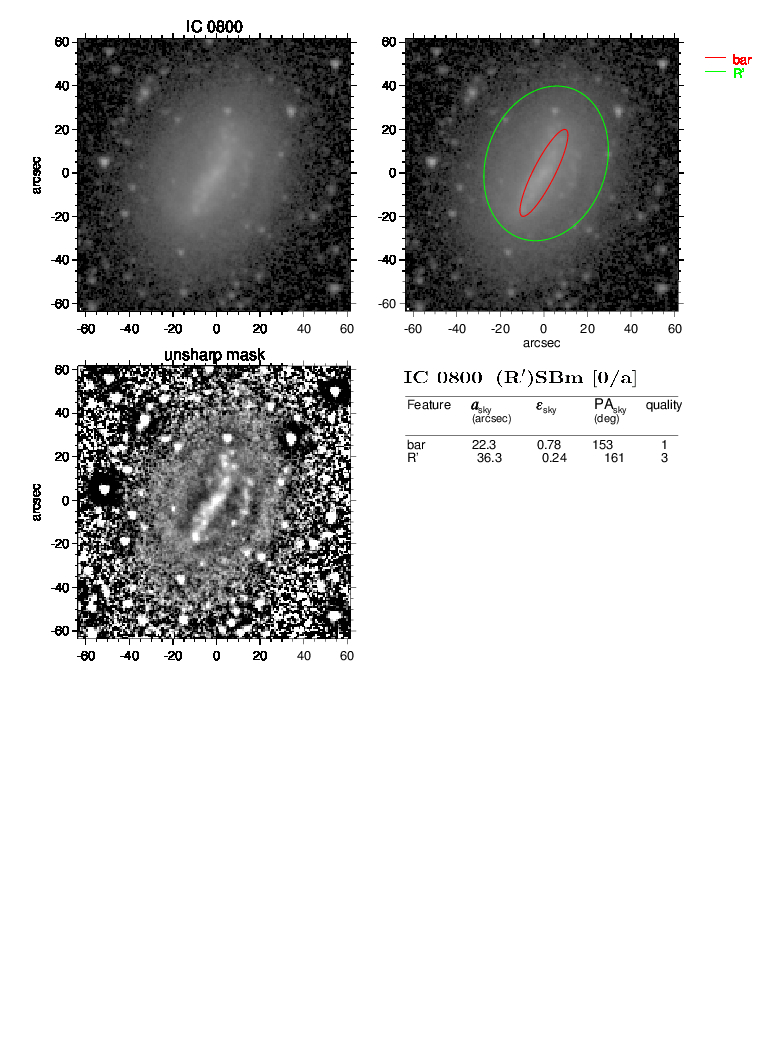

IC0800
(R')SBm[0/a]
T = 8
Galaxy # 182
IC0863
(R')SB(rs)b
T = 4
Galaxy # 183
IC0902
SB(s)d,sp
T = 4
Galaxy # 184
IC1014
SB(_rs)d_m
T = 1
Galaxy # 185
IC1029
(R')SBax(s,nd)a
T = 6
Galaxy # 186
IC1048
(R')SB(s)d,sp/E(d)7
T = 1
Galaxy # 187
IC1055
(R')SA(rs,r)ab
T = 1
Galaxy # 188
IC1067
SB(r,bl)a_b
T = 0
Galaxy # 189
IC1125
SAB(s)dm
T = 1

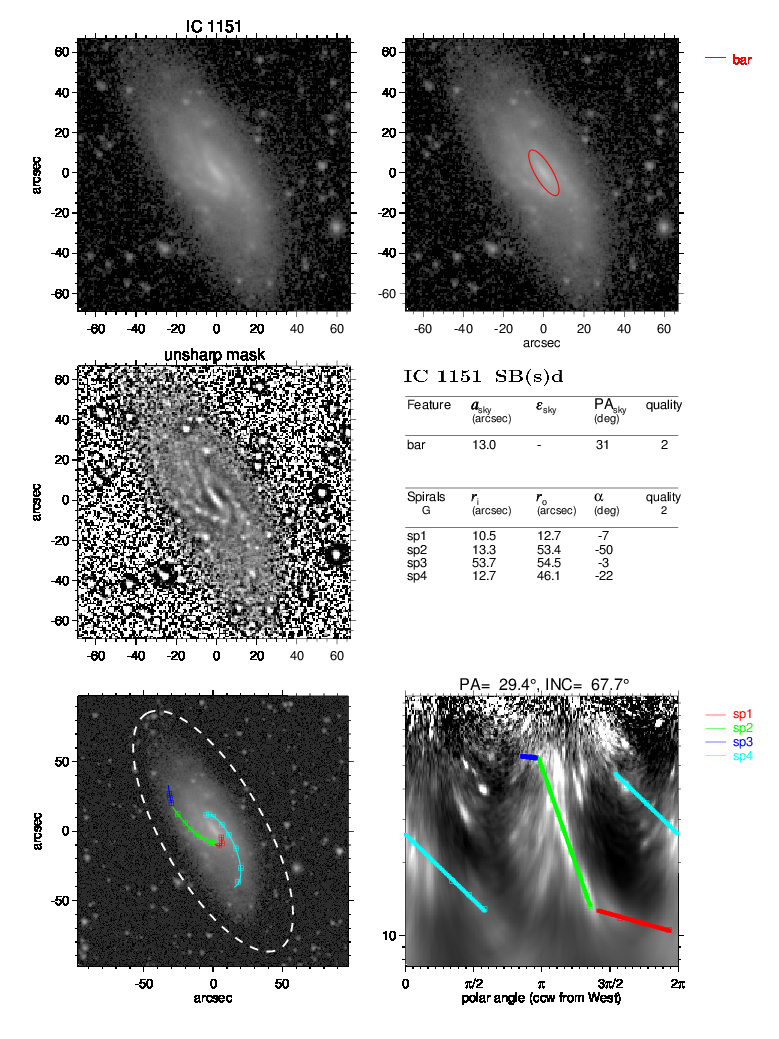

Galaxy # 190
IC1151
SB(s)d
T = 9
Galaxy # 191
IC1158
SAB(r)cd
T = 1
Galaxy # 192
IC1210
S_AB(_rs)a:,pec
T = 8
Galaxy # 193
IC1251
S/IA_Bm:
T = 0
Galaxy # 194
IC1265
SA(_rs)0/a:
T = 8

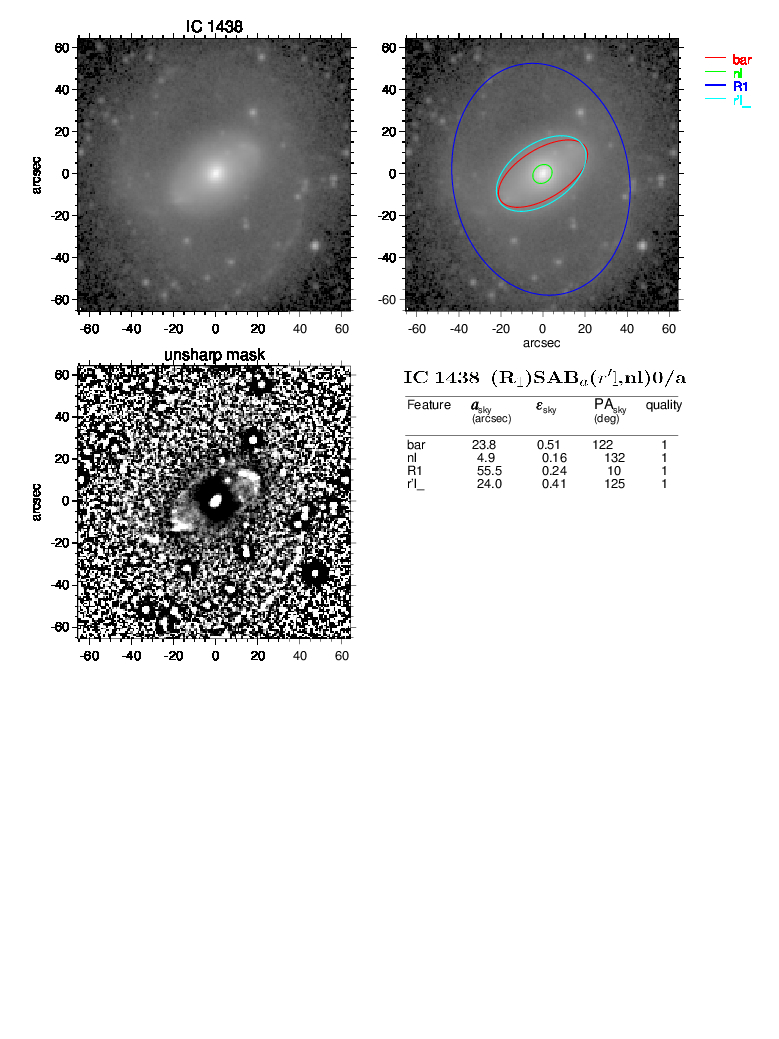

Galaxy # 195
IC1438
(R1)SABa(r'l_,nl)0/a
T = -3

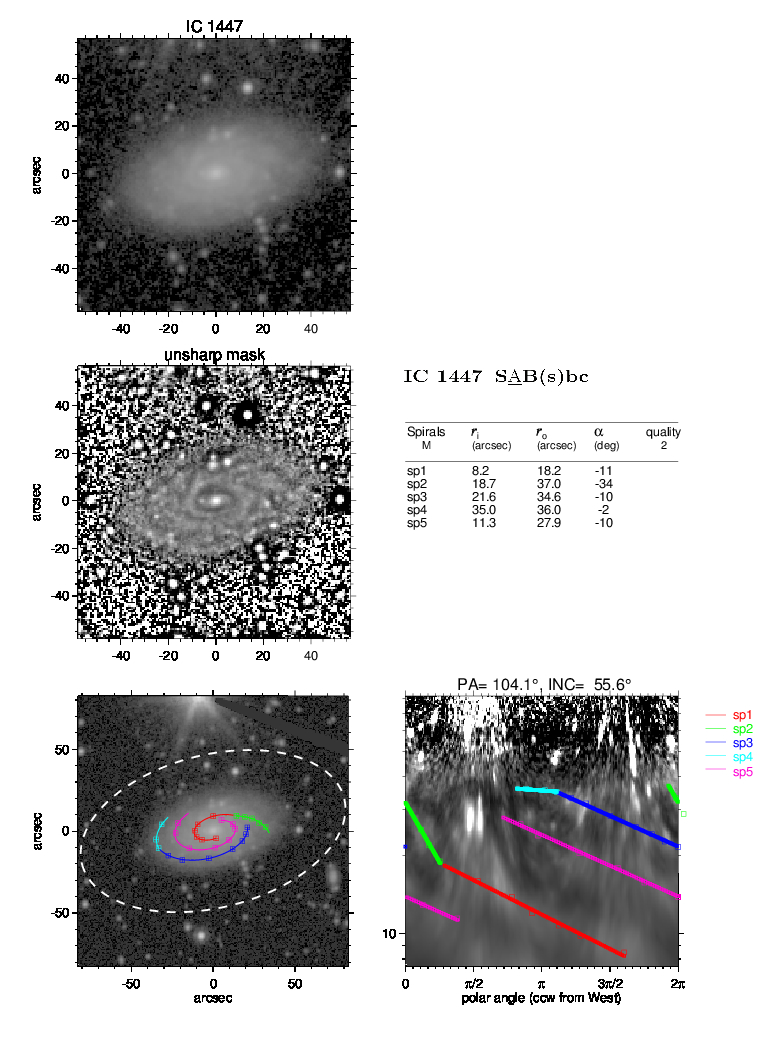

Galaxy # 196
IC1447
S_AB(s)bc
T = 4
Galaxy # 197

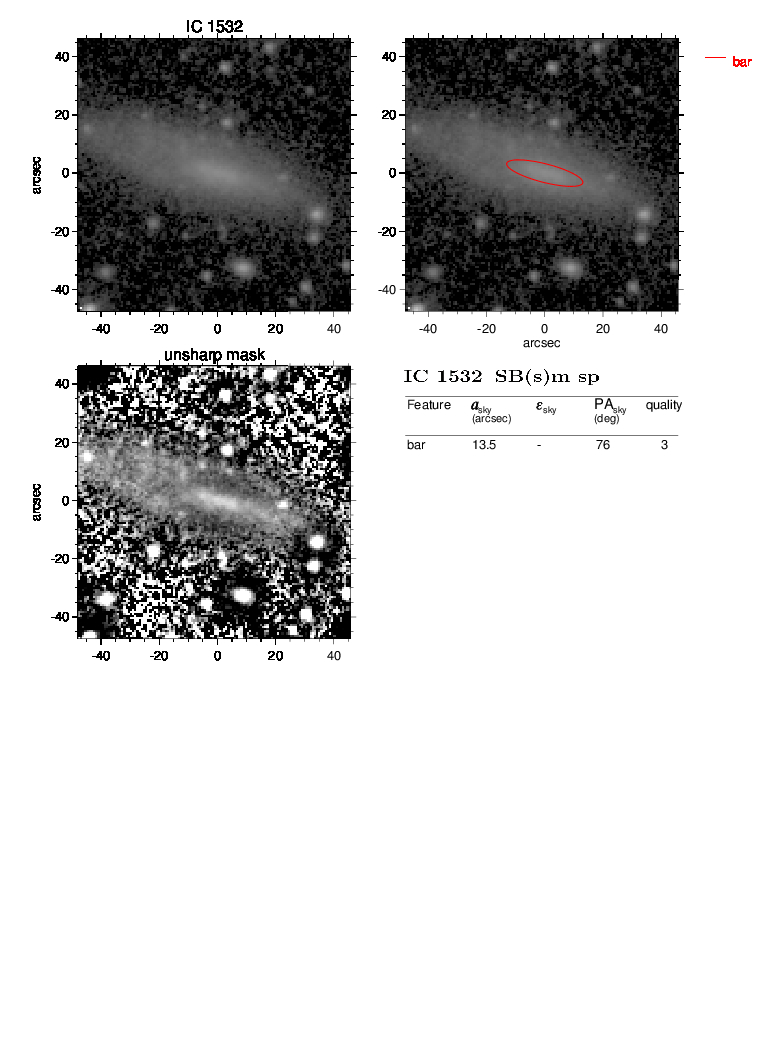

IC1532
SB(s)m,sp
T = 8
Galaxy # 198
IC1596
SA(rs_)_bc:
T = 9

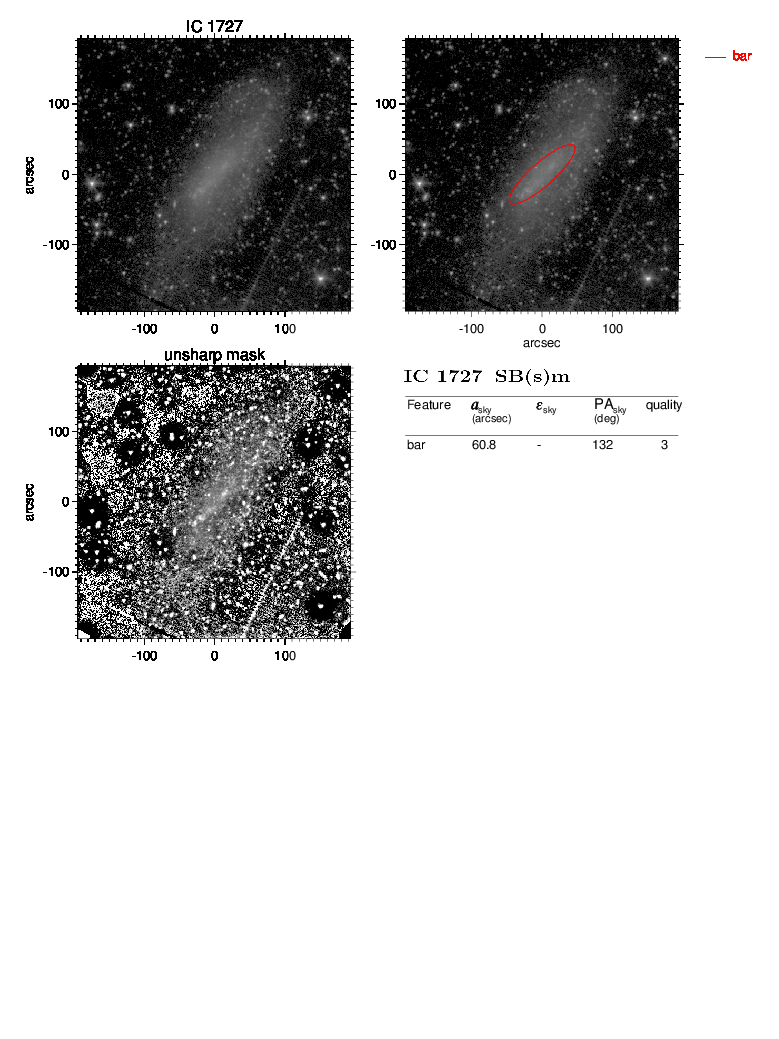

Galaxy # 199
IC1727
SB(s)m
T = 9
Galaxy # 200
IC1870
SB(s)d_m
T = 8
next set of 100 galaxies
